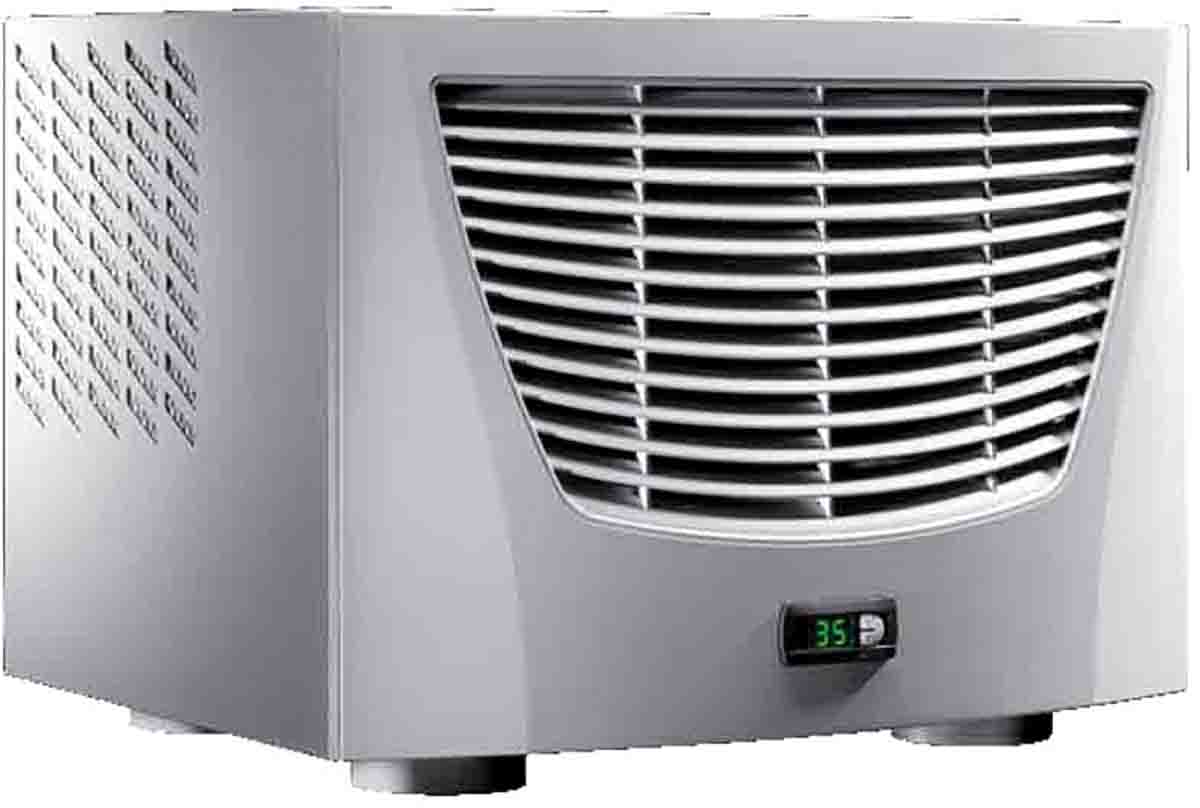

Rittal TopTherm Blue e Series Air Conditioning Unit, 1000W, 230V ac, 491m³/h, 417 x 597 x 475mm

3383500 Rittal TopTherm Blue e Series Air Conditioning Unit, 1000W, 230V ac, 491m³/h, 417 x 597 x 475mm
3383500
brand logo

HT Part No. HT20285

Mfr. Part No. 3383500

Manufacturer: Rittal

Technical Documents: Top Therm Cooling Units Data Sheet-c5c0a491(datasheets) Instruction Sheet - Enclosure Cooling Unit-fe0702cb(datasheets) Datasheet - 3383500-2d8afc68(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 2224.66
Units Per Unit Price
1 - 1 £ 2224.66
2 - 4 £ 2157.92
5 + £ 2091.18
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Cooling Power 1000W
Air Flow 491 m³/h, 1600m³/h
Internal Circuit Air Flow 491m³/h
Noise Level 64dB
External Circuit Air Flow 1600m³/h
Input Power Rating 380W
Supply Voltage 230V ac
Dimensions 417 x 597 x 475mm
Depth 475mm
Height 417mm
Width 597mm
Weight 40kg
Series TopTherm Blue e
Cooler Type Air Conditioner
Nominal Current 2.9A
Refrigerant Type R134a
Frequency 50/60Hz
Input Type Plug-in Terminal Strip

More Information

Roof air conditioners TopTherm Blue e - Rittal Doors and side panels as well as emergency exits remain free thanks to the roof mounting. Automatic condensate evaporation, RiNano coating on the condenser for easy cleaning and constant cooling capacity and efficiency.
These air conditioners also use an intelligent operating system, turning fans on and off as needed to maintain precise temperatures while saving energy. Temperature range: Operating temperature range (environment): +10 °C...+55 °C
Setpoint temperature setting range: +20 °C...+55 °C Composition of the delivery: • Nano-coated condenser
• Integral electric condensate evaporation
• Fully wired ready for connection (plug-in terminal strip)
• Drilling template
• Assembly parts
