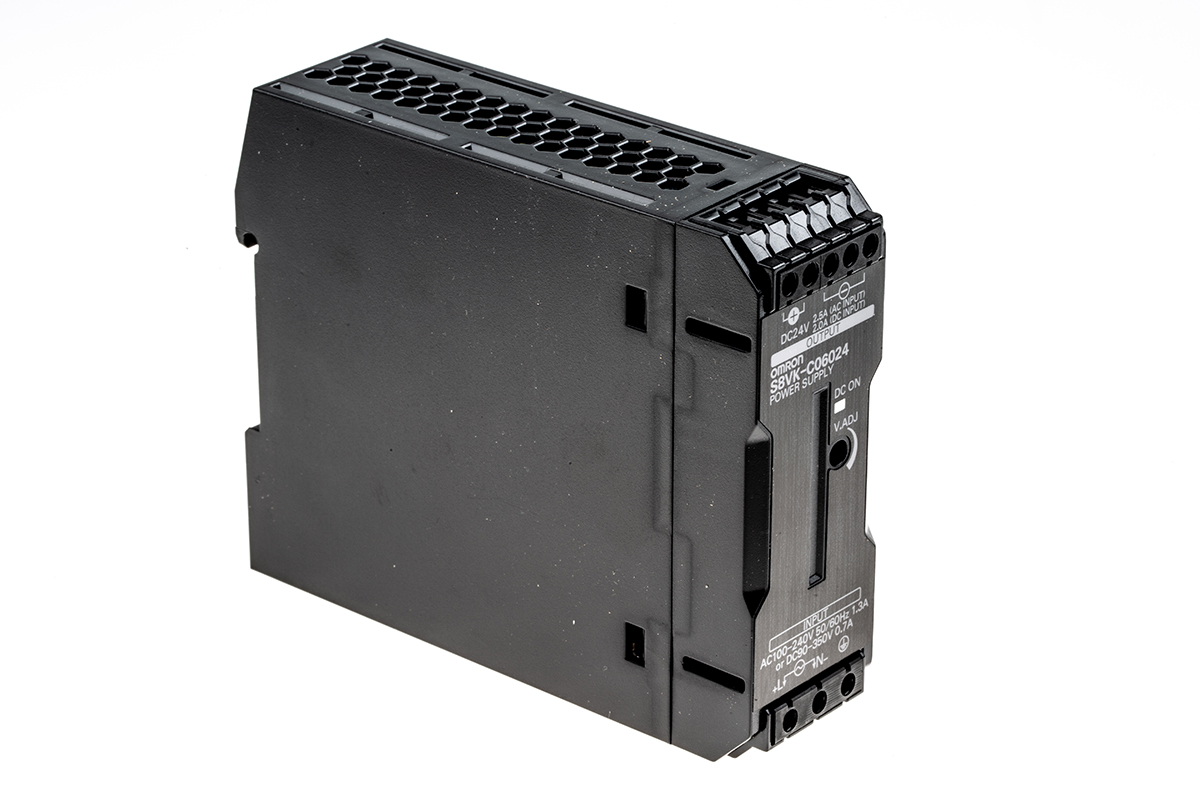

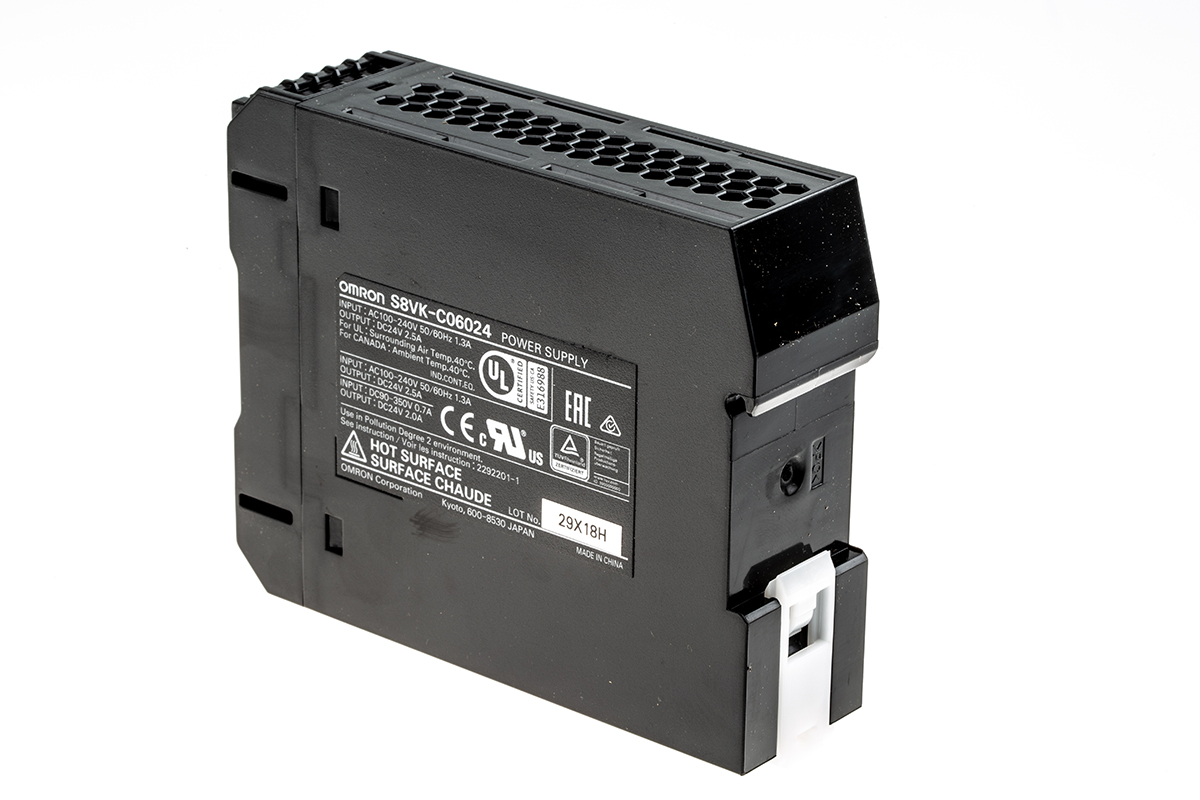

Omron S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc

s8vk-c06024 Omron S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc
S8VK-C06024
S8VK-C06024
HT17195
HT17195
DIN Rail Power Supplies
DIN Rail Power Supplies
s8vk-c06024 Omron S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dcOmron
brand logo

HT Part No. HT17195

Mfr. Part No. S8VK-C06024

Manufacturer: Omron

Technical Documents: Datasheet-fd14ffce(datasheets) Brochure - Perfect Power Supply Solutions-b61b6248(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 65.26
Units Per Unit Price
1 + £ 65.26
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 2.5A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 100 → 240 V ac / 90 → 350V dc
Power Rating 60W
Electrical Phase 1
Number of Outputs 1
Height 90mm
Width 32mm
Depth 110mm
Series S8VK-C
Minimum Temperature -25°C
Mounting Type DIN Rail Mount
Output Voltage Adjustment Range -10 → +15%
MTBF 630000h
Ripple And Noise 70mV
Efficiency 88%
Special Features Overvoltage and Short Circuit Protection
Maximum Temperature +60°C
Standards Met CE

More Information

60W to 480W S8VK-C Series The S8VK-C series of power supplies are a space saving single phase power supply with universal input and safety worldwide standards. An excellent power supply that provides quality, reliability and cost effective. The pwer supply is a compact design which is easy to fit and withstands harsh environments plus suns for long periods within stable conditions. This vesatile series simply clicks onto a DIN rail saving you valuable time and effort.
