The Nexperia HEF40106BT,653 is a high-performance 6-channel (hex) inverting Schmitt-trigger IC meticulously engineered for global B2B and technical markets. Its wide supply voltage range (3 V to 15 V) makes it ideal for diverse applications, ranging from industrial automation to analog–digital interfacing.
Product Core Feature and Benefits
- Schmitt‑Trigger Inputs with clamp diodes ensure robust noise immunity and clean transitions, even with slow or noisy signal edges.
- Wide Supply Range (3–15 V) accommodates mixed‑voltage designs, from legacy 5 V systems to modern 3.3 V logic domains.
- Reliable ESD Protection: Surpasses HBM 2000 V and CDM 1000 V thresholds for enhanced robustness.
- Fast Propagation (≈60 ns at 15 V, 50 pF) enables high-speed switching, making it ideal for oscillators, waveform shaping, and timing-critical circuits.

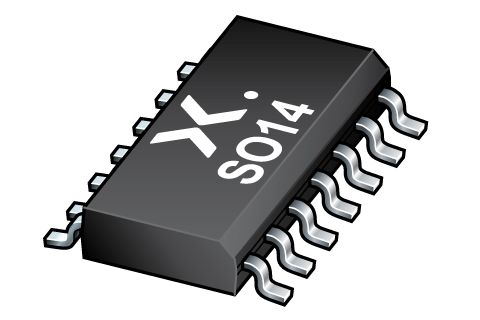

- SO-14 (SOT108-1) Plastic Small-Outline Package with 14 leads and ~3.9 mm body width, suitable for compact PCB layouts
Material and Size Specifications
- Package: Molded plastic SO‑14 (SOT108‑1), 14 leads, ~3.9 mm body width.
- Temperature Rating: Full industrial grade, from –40 °C to +125 °C.
Why Buy this IC?
This IC delivers reliable logic-level waveform conditioning, highly immune to noise, with minimal power usage. Perfect for wave/pulse shapers, astable and monostable multivibrators, microcontroller input cleanup, and mixed-voltage system design. Its industry-standard compliance, compact sizing, and dependable performance make it an outstanding choice for global engineering projects.
