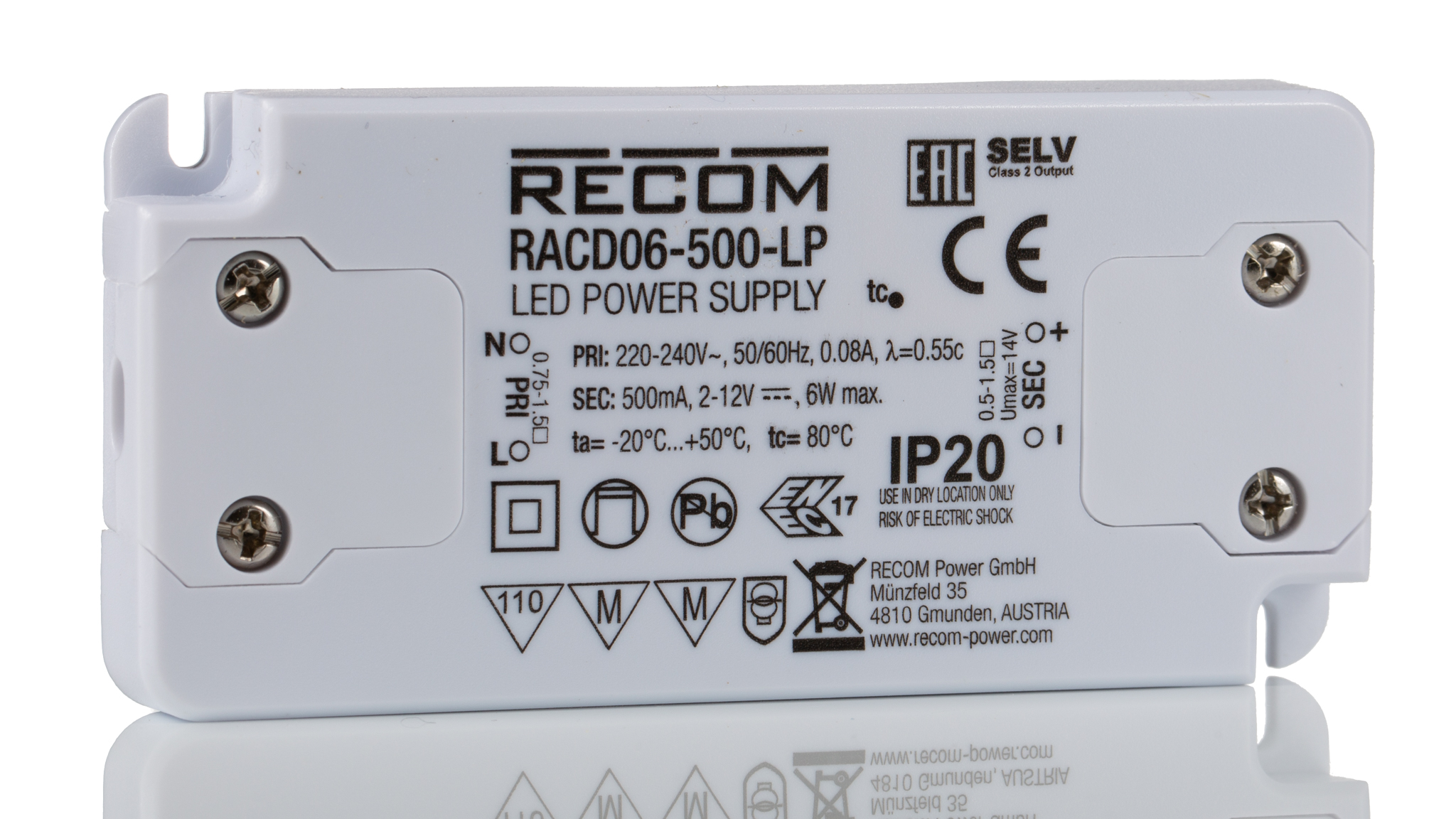

Recom LED Driver, 2 → 12V dc Output, 6W Output, 500mA Output, Constant Current

racd06-500-lp Recom LED Driver, 2 → 12V dc Output, 6W Output, 500mA Output, Constant Current
RACD06-500-LP
RACD06-500-LP
HT22525
brand logo

HT Part No. HT22525

Mfr. Part No. RACD06-500-LP

Manufacturer: Recom

Technical Documents: RACD06-LP, AC/DC Converter - 6 Watt Constant Current Single Output LED Drivers-ff54d8a1(datasheets) Datasheet-1f53d7a2(datasheets) Instruction Sheet - RACD06-500-LP-9801a432(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 10.12
Units Per Unit Price
1 - 4 £ 10.12
5 - 9 £ 9.70
10 + £ 9.50
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Output Voltage 2 → 12V dc
Maximum Output Power 6W
Output Current 500mA
Dimmable No
Input Voltage 198 → 264 V ac
Operation Constant Current
LED Driver Type LED Driver
AC or DC Input Voltage ac
IP Rating IP20
Current Rating 80mA
Voltage Rating 198 → 264V ac
Number of Outputs 1
Series RACD06-LP
Configuration Enclosed
Primary Type AC-DC
Standards Met CB, CE, EN 55015, EN 61000-3-2 Class C, EN 61000-3-3, EN 61000-4-11 Criteria B, EN 61000-4-11 Criteria C, EN 61000-4-2 Criteria B, EN 61000-4-3 Criteria A, EN 61000-4-4 Criteria B, EN 61000-4-5 Criteria C, EN 61000-4-6 Criteria A, EN 61347-1, EN 61347-2-13, EN 61493, EN 61547, ENEC, ERP Compliant, IEC 61347-1, IEC 61347-2-13, IEC/EN 62384

More Information

RECOM LED Driver, Constant Current Output, 100ms Startup Time - RACD06-LP Series - RACD06-500-LP Stop your LEDs from overheating or flickering with this LED driver from RECOM. It converts AC voltage into a constant and uninterrupted DC power supply. This ensures your system can compensate for changes that occur in the operating temperature and electrical conductivity of your LEDs. The unit's low profile means you can invisibly build it into furniture or discretely mount it under shelving for a clean and aesthetically pleasing finish. As this driver ensures a constant current supply, it's ideal to use with high-powered LED products. Features & Benefits • Protects against short circuits, over-voltage and current overload, so you're safeguarded against power faults
• Can be used with both independently supplied or built-in power-supply LEDs to best suit your application's needs
• Low maximum no-load power consumption of 0.4W, so minimal energy is wasted in resting mode
• Auto-recovers after a fault is removed, minimising the need for manual intervention
• IP20-rated housing is touch-proof and protected against objects larger than 12mm Applications • Domestic and retail downlights
• Camera flashes
• Hospitality venues What's the expected lifespan of this LED driver? This driver has a design lifetime of 30,000 hours, so you can rely on it for longevity.
