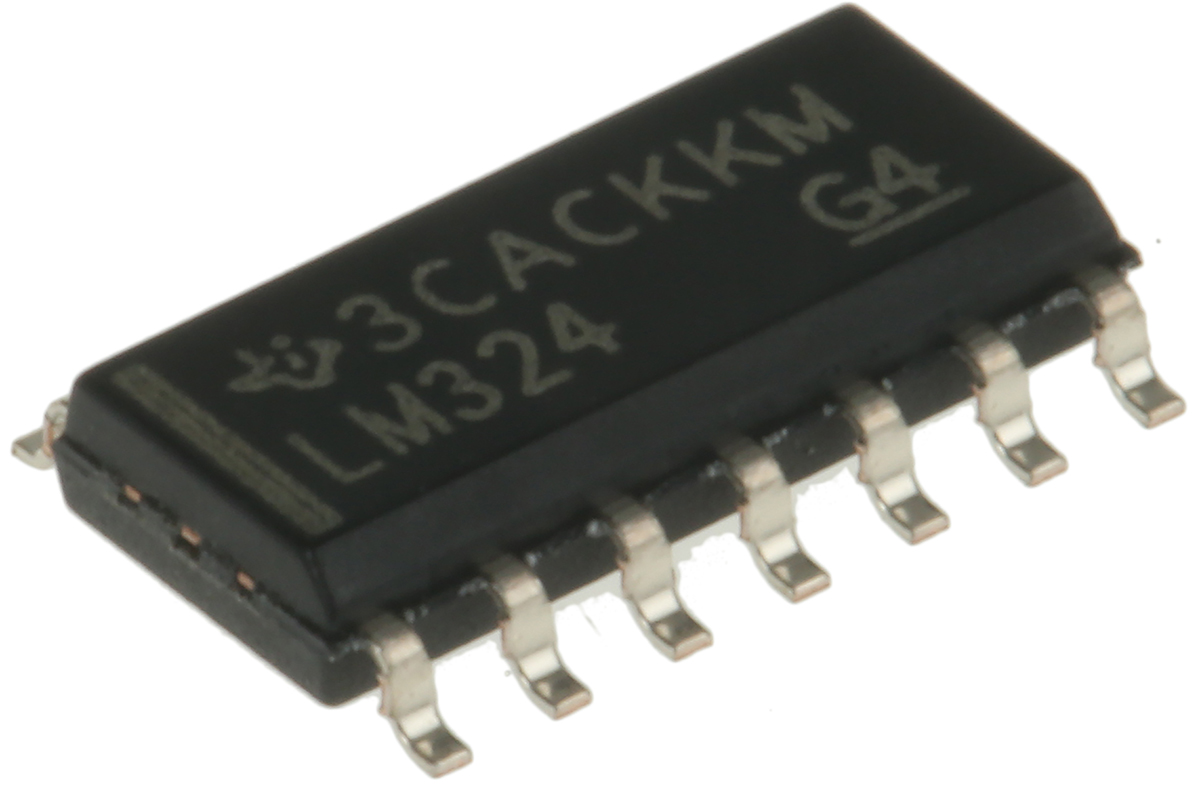

LM324D Texas Instruments, Precision, Op Amp, 1.2MHz, 5 → 28 V, 14-Pin SOIC

lm324d LM324D Texas Instruments, Precision, Op Amp, 1.2MHz, 5 → 28 V, 14-Pin SOIC
LM324D
brand logo

HT Part No. HT29449

Mfr. Part No. LM324D

Manufacturer: Texas Instruments

Technical Documents: ESD Control Selection Guide V1-62d43667(datasheets)

150 - In Stock pcs
Price:
£ 0.33
Units Per Unit Price
50 - 99 £ 0.33
100 - 249 £ 0.30
250 + £ 0.29
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Amplifier Type Precision
Mounting Type Surface Mount
Package Type SOIC
Power Supply Type Dual, Single
Number of Channels per Chip 4
Pin Count 14
Typical Single Supply Voltage 5 → 28 V
Typical Gain Bandwidth Product 1.2MHz
Typical Dual Supply Voltage ±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Typical Slew Rate 0.5V/µs
Maximum Operating Temperature +70 °C
Minimum Operating Temperature 0 °C
Rail to Rail No
Typical Voltage Gain 100 dB
Typical Input Voltage Noise Density 35nV/√Hz
Length 8.65mm
Height 1.58mm
Dimensions 8.65 x 3.91 x 1.58mm
Width 3.91mm

More Information

General Purpose Op Amps, LM Series A range of general purpose operational amplifiers from Texas Instruments suitable for a multitude of uses. These devices offer cost-effective performance in non-specialised applications and are available in single, dual and quad configurations. The range includes a large variety of both through hole and SMT packages. Many of the devices in the LM family of op-amps offer low power consumption and are able to operate with single supplies with input common mode voltages that includes ground.
