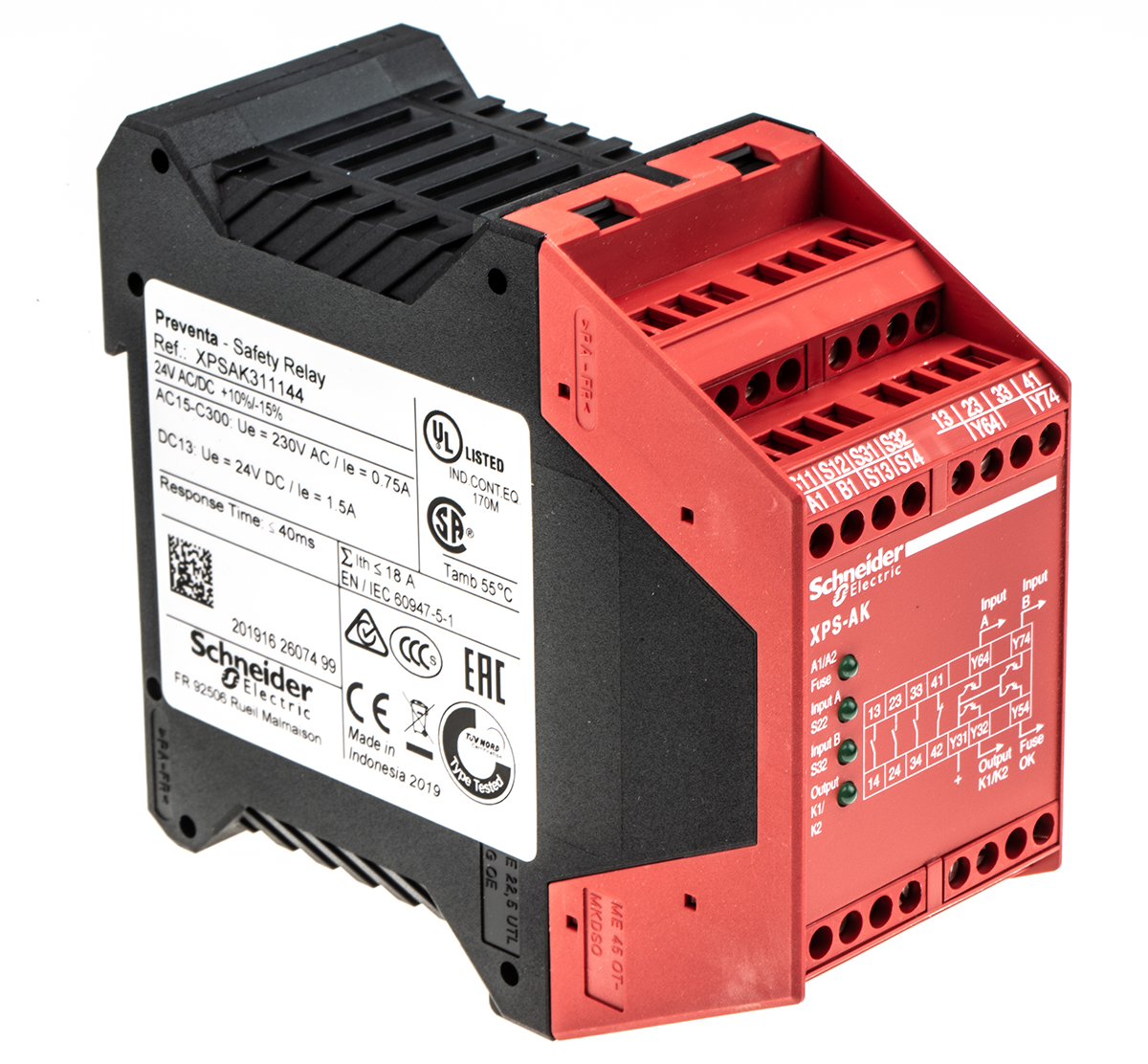

Schneider Electric | Preventa XPSAK Series | Safety Relays
Simple and effective safety monitoring has never been more crucial in today's highly automated world. Prevention is key to site safety, that's why Schneider Electric offers a Safety Relay in the form of the 'Preventa XPSAK' module that is second to none. Being able to monitor faults with devices along a circuit has the power to stop emergency situations from even occurring.
Features and benefits:
- Provides 3 N/O safety relay outputs plus 1 N/C volt free signalling output
- Monitoring of the start button or automatic starting can be chosen.
- 24 V DC option incorporated for each supply voltage version
- Monitoring of single safety functions, providing an automated solution for use with applications such as emergency push stop buttons or switches.
- Slin in design, with just 45mm of width meaning it can fit nicely even in space constraint spaces.
- 35 mm symmetrical DIN rail support, offering flexible and versatile safety system installation.
- Local signalling in the form of LEDs.
Protection ratings & Safety features (see datasheet for specifics) -
- Impressive line resistance is available, varying between 90 to 100 Ohm (Ω).
- Input protection type is internal, electronic.
- EN1088/ISO 14119, EN 60204-1, EN/IEC 60947-5-1, EN/ISO 13850
- CSA, TUV & UL listed
- IP 40 (enclosure) for protection against small objects up to 1mm such as tools, wires and small wires.
- IP 20 (terminals) for protection against solid objects such as fingers, smaller tools up to 12mm.
Applications -
All dangerous machinery requires an automated solution to prevent harm to immediate users and also prevent damage to the machinery. Below are some of the safety applications.
- Monitoring type 4 Safety light curtains with semi-conductor outputs according to EN61496-1.
- Time delay input if needed allowing you to set up your own time function.
- Two-hand control safety circuits
- Sensing mats and edges
