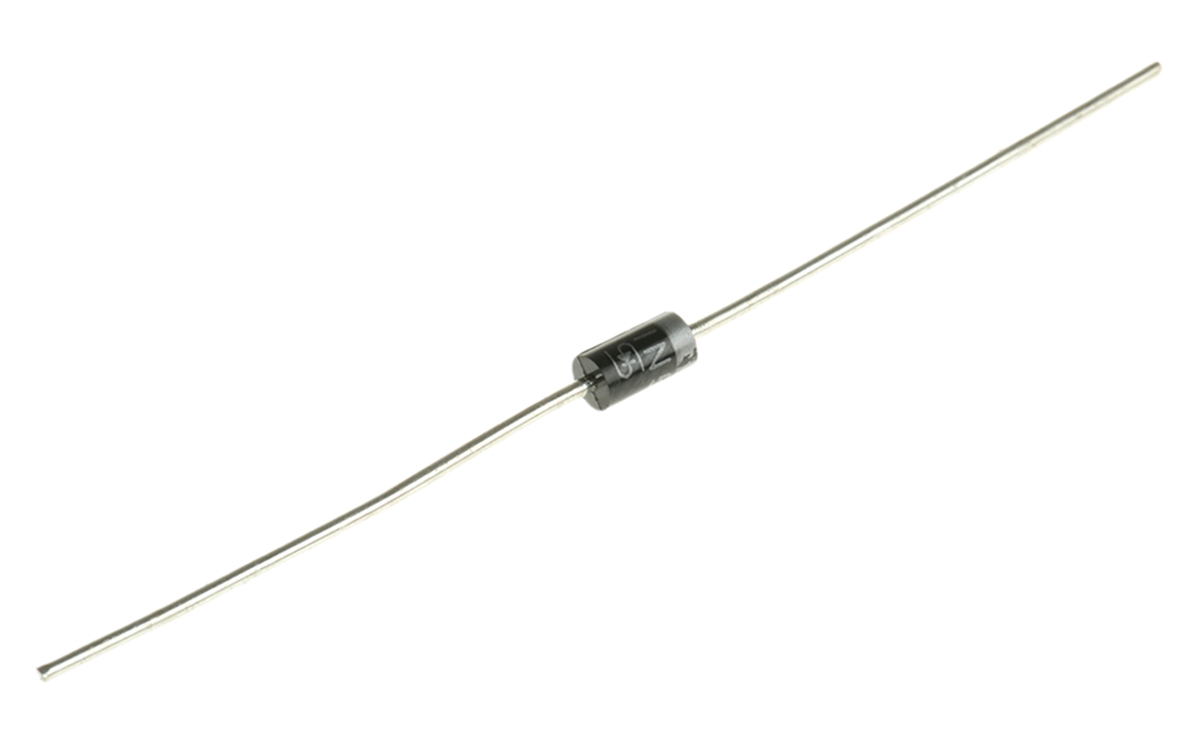

HY Electronic Corp 20V 1A, Schottky Diode, 2-Pin DO-41 1N5817

1n5817 HY Electronic Corp 20V 1A, Schottky Diode, 2-Pin DO-41 1N5817
1N5817
brand logo

HT Part No. HT22138

Mfr. Part No. 1N5817

Manufacturer: HY Electronic Corp

Technical Documents: 1N5817 thru 1N5819 Schottky Barrier Rectifier-001b8745(datasheets) ESD Control Selection Guide V1-2eb8b7d1(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.034
Units Per Unit Price
500 - 1499 £ 0.034
1500 - 2999 £ 0.030
3000 + £ 0.028
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Mounting Type Through Hole
Package Type DO-41
Maximum Continuous Forward Current 1A
Peak Reverse Repetitive Voltage 20V
Diode Configuration Single
Rectifier Type Schottky Rectifier
Diode Type Schottky
Pin Count 2
Number of Elements per Chip 1
Diode Technology Schottky Barrier
Diameter 2.72mm
Peak Non-Repetitive Forward Surge Current 25A

More Information

Schottky Barrier Rectifier Diode - 1N58 Series The HY Electronic (Cayman) Limited offer schottky diodes with 1A and 2A forward current rating. The schottky barrier rectifier has a low forward voltage drop and comes in a JEDEC DO-41 or DO-27 package. The schottky rectifier can be used in applications that require fast switching like high frequency inverters, polarity protection and freewheeling.
Construction: Epitaxial
Metal: Semiconductor junction with guard ring
Plastic material: UL94V-0
Polarity: Colour band denotes cathode
