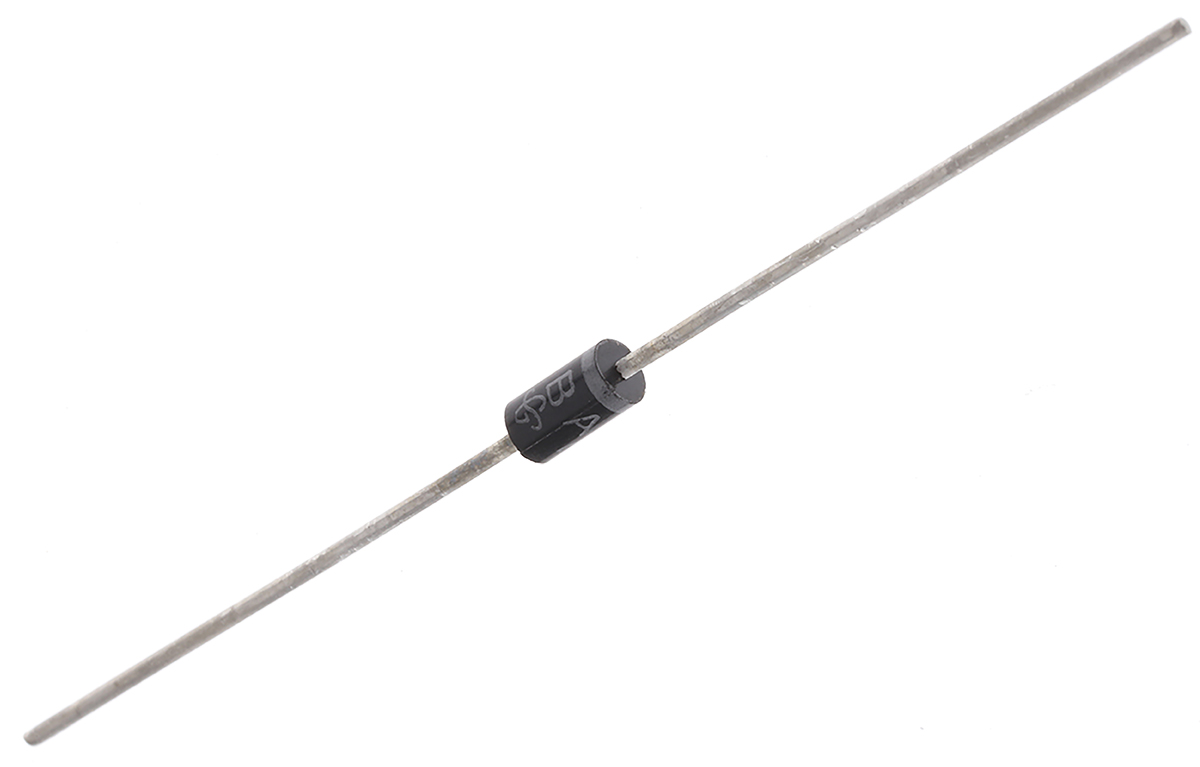

The Vishay BA159‑E3/54 is a high-voltage, fast recovery rectifier diode designed for efficiency-sensitive power electronics. Housed in a robust DO-204AL (DO-41) axial plastic package, this diode delivers 1 A average forward current and withstands up to 1000 V repetitive peak reverse voltage, making it ideal for industrial, telecom, and power supply applications.
Salient Features and Benefits of this Rectifier Diode
- High Voltage Capability (1000 V): Ideal for high-voltage rectification and freewheeling circuits. Offers flexibility for diverse global power system designs.
- Fast Recovery (≤ 500 ns): Enables efficient switching and reduced power losses in high-frequency circuits.
- Low Forward Voltage (≈ 1.3 V at 1 A): Minimizes conduction losses, improving overall system efficiency.
- Low Reverse Leakage (≈ 5 µA @ 1000 V): Enhances reliability in standby and high-voltage applications.
- Wide Temperature Range (−65 °C to +125 °C/150 °C): Operates reliably under harsh thermal conditions.
- Compact, UL-rated Plastic Package: A 94V-0 flame-retardant body and solderable axial leads enable durable assembly and a compact PCB layout.
Product Usage Information
This diode excels in fast switching power supplies, inverter circuits, freewheeling and clamp applications, and as a surge protection element in energy systems. Its combination of high voltage tolerance, fast recovery, and efficient thermal performance makes it a superior choice for engineers designing rugged, efficient power systems.
