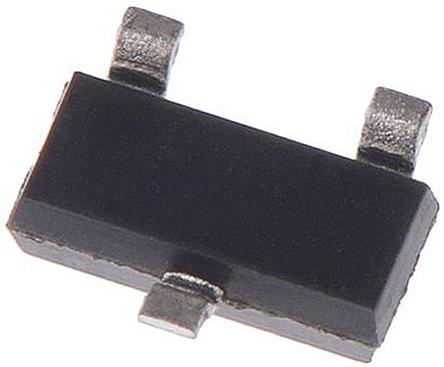

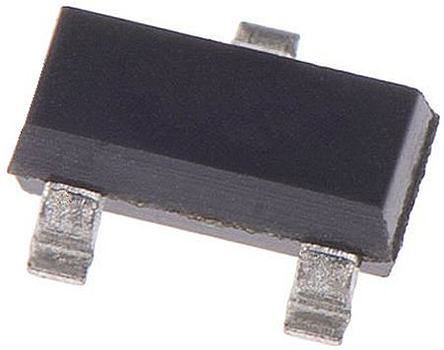

The Nexperia BAT54C,215 is a compact, high-performance Schottky barrier diode array featuring two diodes with a common cathode in a SOT-23 (TO-236AB) surface-mount package. Engineered for precision and efficiency, it supports fast switching, low voltage drop, and high-temperature resilience, ideal for demanding B2B electronics and industrial applications. Furthermore, for engineers needing a reliable, high-speed, and low-loss dual Schottky diode, it sets a high standard, combining performance, compactness, and durability for global technical buyers.
Product Core Features and Benefits Include
- Ultra-fast switching: 5 ns recovery time ensures minimal switching delay and is ideal for high-frequency or digital applications.
- Low forward voltage drop: With a maximum of 0.8 V, it enhances power efficiency in rectification and clamp circuits.
- Compact form factor: The SOT-23 package supports space-constrained PCB designs and facilitates automated assembly.
- High reliability: Rugged temperature tolerance (up to 150°C) and optional AEC-Q101 variants ensure optimal performance in automotive and industrial environments.
Usage Recommendations
Perfect for power supply OR-ing, reverse polarity protection, voltage clamping, and signal routing in compact electronics such as wearables, automotive modules, and industrial instruments. The dual common‑cathode layout simplifies circuit design and reduces part count.
