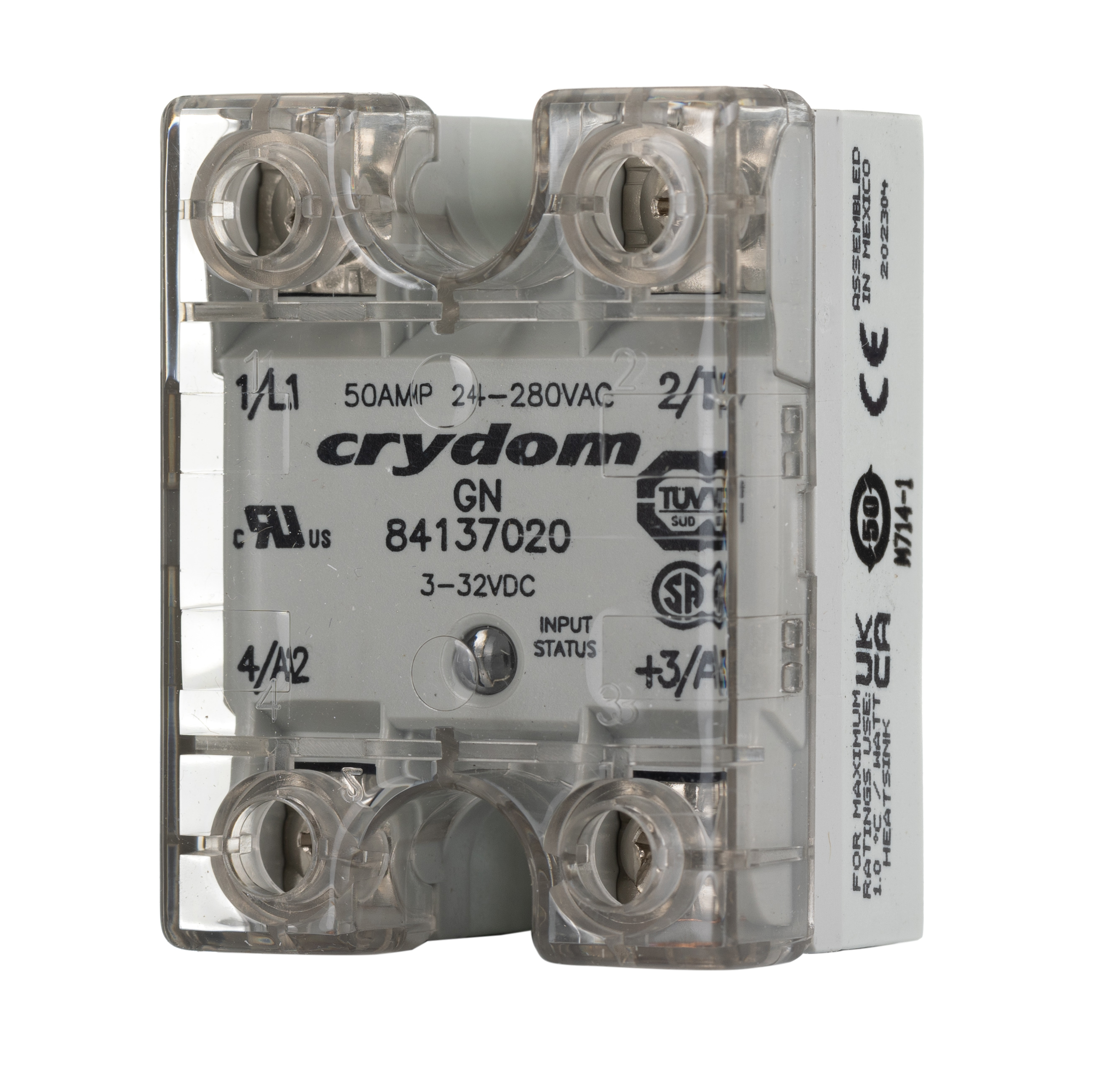

Sensata Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 280 V ac Load, 32 V dc Control

84137020 Sensata Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 280 V ac Load, 32 V dc Control
84137020
84137020
HT29277
HT29277
Solid State Relays
brand logo

HT Part No. HT29277

Mfr. Part No. 84137020

Manufacturer: Sensata / Crydom

Technical Documents: Datasheet-04dc0a56(datasheets) Declaration of Conformity 2014/35/EU-bac32bda(datasheets) CE Declaration of Conformity (2014/35/EU, 2015/863/EU)-5e3720bc(datasheets)

48 - In Stock pcs
Price:
£ 53.91
Units Per Unit Price
1 - 4 £ 53.91
5 - 9 £ 51.21
10 + £ 48.51
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Load Current 50 A rms
Mounting Type Panel Mount
Maximum Load Voltage 280 V ac
Minimum Load Voltage 24 V ac
Maximum Control Voltage 32 V dc
Minimum Control Voltage 3 V dc
Switching Type Zero Cross
Control Voltage Range 3 → 32 V dc
Minimum Load Current 100mA rms
Range Easy Pick
Number of Poles 1
Terminal Type Screw
Output Device SCR
Relay Type Solid State Relay
Maximum Turn On Time 1/2 cycle
Series 8413
Load Voltage Range 24 → 280V ac
Dimensions 44.5 x 57.3 x 30.9mm
Operating Temperature Range -40 → +80°C
Special Features Improved SEMS Screw & Washer, IP20, LED Input Status Indicator, Redesigned Housing with Anti-Rotation Barriers
Length 44.5mm
Off State Leakage Current 0.1mA rms
Maximum Operating Temperature +80°C
Standards Met CE, CSA LR 38595, cULus Recognised E79183, EMC Compliant, EN 60950-1, EN 62314:2006, IEC, IEC 61000-4-2, IEC 61000-4-4, TUV, UL
Depth 57.3mm
Height 30.9mm
Capacitance 8pF
Minimum Operating Temperature -40°C

More Information

Sensata | Crydom Solid-State Relay, AC Output, 1 Pole - GN Series - 84137020 Keep your automated assembly line running strong with this solid-state relay from Sensata | Crydom. You can use it to switch contacts on a control circuit, which makes it a snap to turn high-powered devices on and off. This smooth operator has no moving parts, so it cuts down on wear for an extended service life. A relay like this one is just what you need to manage the power supply in industrial data acquisition centres and commercial heating and lighting systems. • Cover has an IP20 rating, meaning it's touch-safe and protected against objects larger than 12mm
• Maximum turn-on and turn-off time of half a cycle for a swift response when called to action
• Flame-retardant for safety in the event of a fire How do I monitor the status of this SSR? The unit includes an LED indicator that lets you check its operational status with just a glance. How do I wire this relay? This relay has screw terminals that are designed to hold conductors securely in place, even in the event of heavy vibrations.
