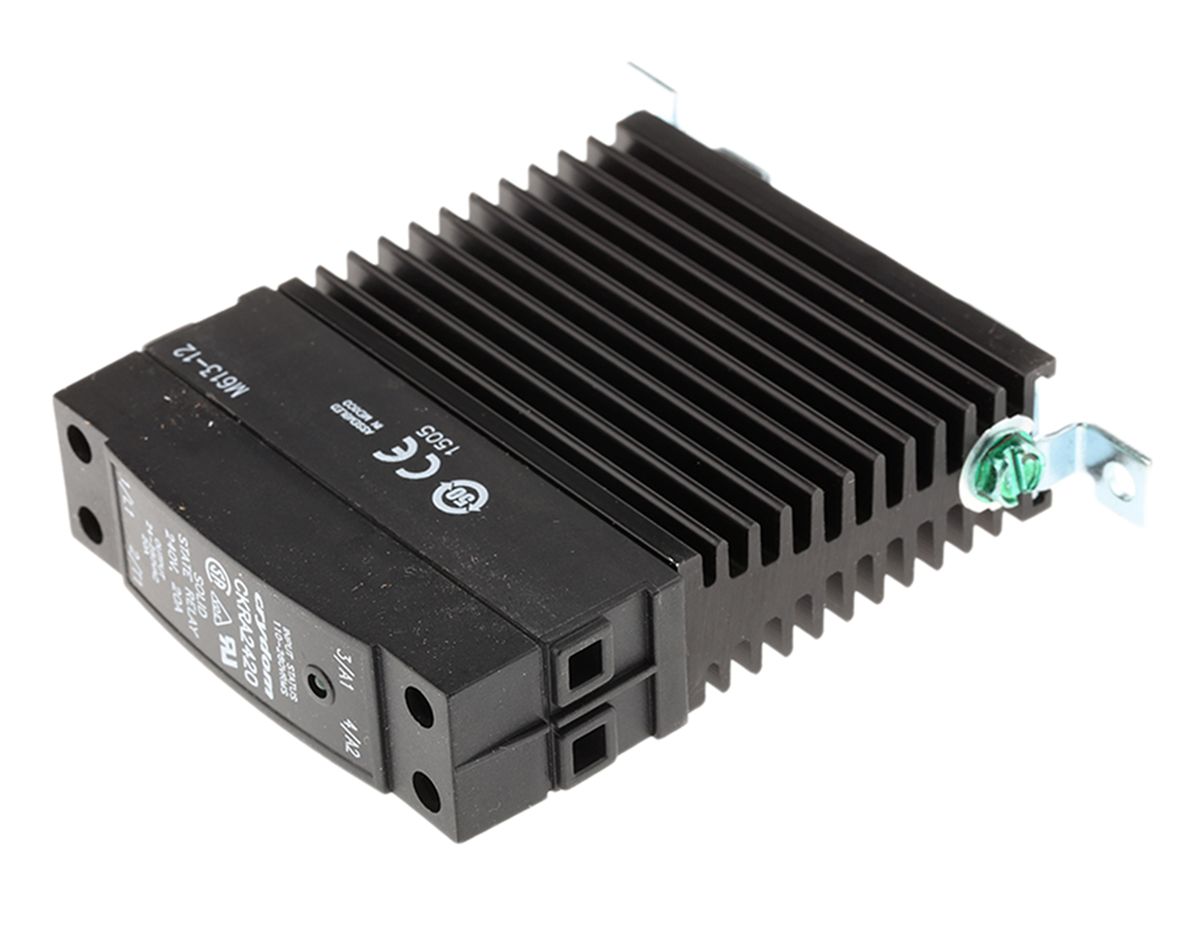

Sensata Crydom CKR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 280 V rms Load, 280 V rms Control

ckra2420 Sensata Crydom CKR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 280 V rms Load, 280 V rms Control
CKRA2420
CKRA2420
HT29741
HT29741
Solid State Relays
brand logo

HT Part No. HT29741

Mfr. Part No. CKRA2420

Manufacturer: Sensata / Crydom

Technical Documents: Datasheet-71aaa70d(datasheets) Declaration of Conformity 2014/35/EU-bac32bda(datasheets) CE Declaration of Conformity (2014/35/EU, 2015/863/EU)-5e3720bc(datasheets) Instruction Sheet - CKRA2410-f9cf9591(datasheets) Line Drawing - CKR SERIES-37c1f6ef(datasheets)

43 - In Stock pcs
Price:
£ 66.52
Units Per Unit Price
1 - 4 £ 66.52
5 - 9 £ 63.19
10 + £ 59.87
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Load Current 20 A rms
Mounting Type DIN Rail
Maximum Load Voltage 280 V rms
Maximum Control Voltage 280 V rms
Minimum Control Voltage 110 V ac
Switching Type Zero Cross
Control Voltage Range 90 → 280 V ac
Minimum Load Current 0.15 A
Terminal Type Box Clamp
Output Device SCR
Series CKR
Load Voltage Range 24 → 280V ac
Maximum Turn On Time 1/2 Cycle
Dimensions 81.9 x 22.5 x 99mm
Depth 22.5mm
Capacitance 8pF
Maximum Operating Temperature +80°C
Minimum Operating Temperature -40°C
Operating Temperature Range -40 → +80°C
Length 81.9mm
Standards Met CE
Off State Leakage Current 10 mArms
Height 99mm
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=30374&DisplayLogo=False

More Information

Sensata | Crydom Solid-State Relay, 10ms Turn-On Time, DIN Rail Mounting - CKR Series - CKRA2420 Make or break your circuit with lighting speed using this solid-state relay from Sensata | Crydom. Thanks to its maximum turn-on time of 10ms and turn-off time of 40ms, you can rest assured that it swiftly switches power to your device. As it converts an electrical signal to an optical one, this unit doesn't have any moving parts, reducing the risk of mechanical wear for a longer lifespan. Its thermally conductive epoxy case means it can stand the heat in demanding conditions. Use it in data centres or medical equipment. • Wide operating temperature range between -40°C and +80°C for use in harsh industrial environments
• Designed for mounting on a DIN rail for tool-free installation
• Box clamp terminals for secure wiring What's the control voltage range of this relay? This relay has a wide control voltage range between 110 and 280V AC, so it's compatible with many electrical systems. How do I check the operating status of this relay? A built-in LED indicator gives the green light when your SSR is on for easy status monitoring.
