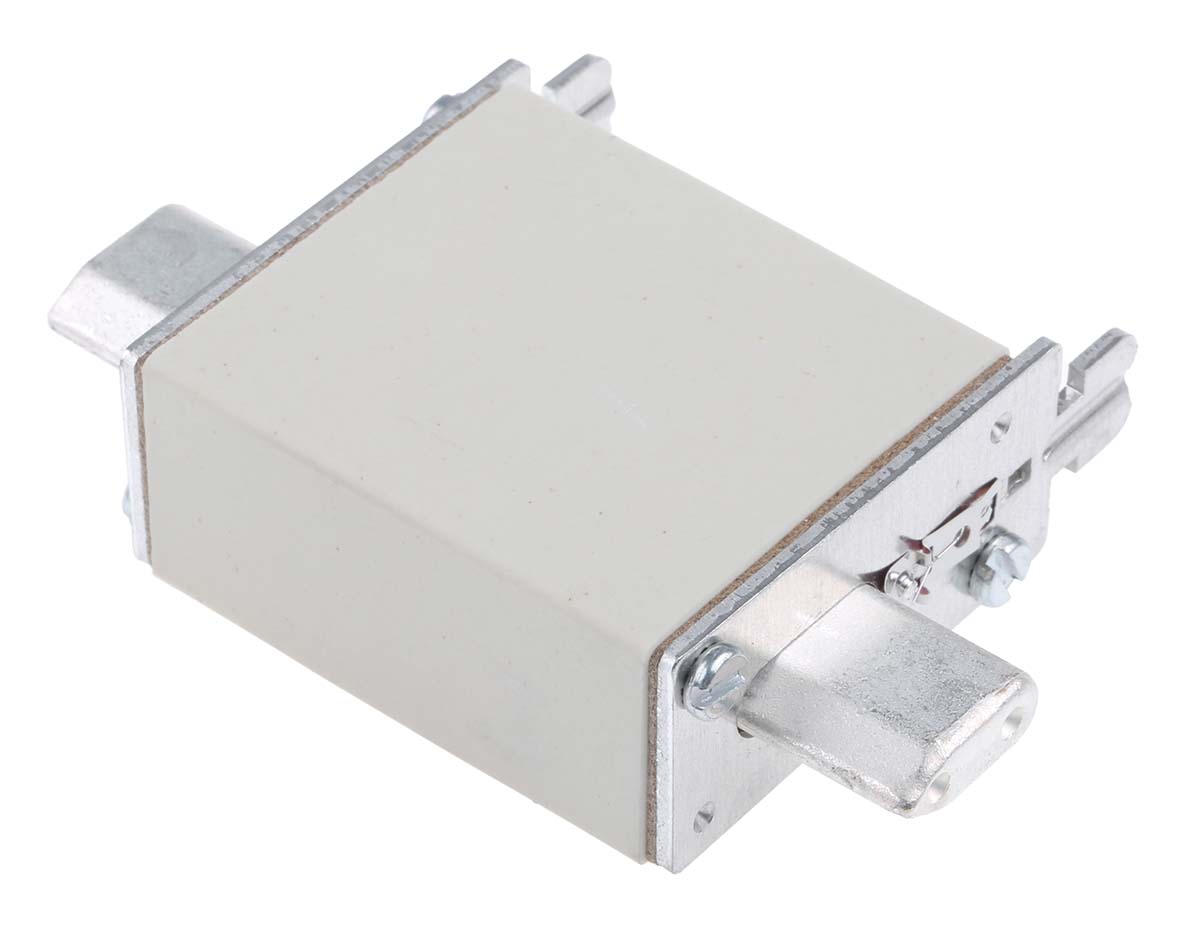

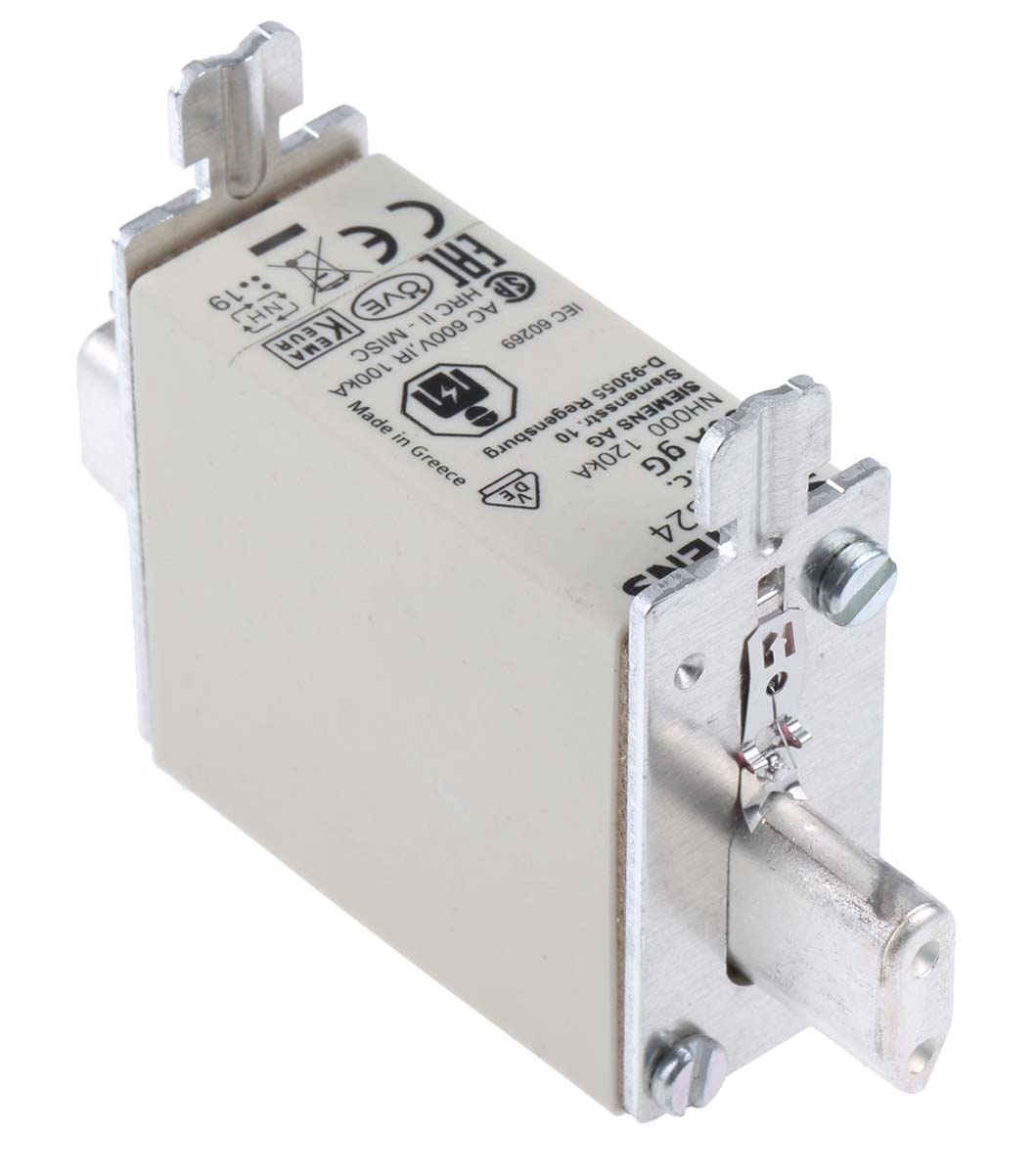

Siemens NH Fuse, 80mm Overall Length, NH000 Fuse Size - 3NA3824
This NH fuse offers dependable protection in electrical systems. With a current rating of 80A, it is suitable for diverse applications within automation, electronics, and mechanical industries. Its high rupture capacity and compliance with standards such as IEC EN 60269 and CSA 22.2 make it a practical option for safeguarding electrical circuits.
Features & Benefits
• High breaking capacity of 120kA at AC
• Blade tag design simplifies installation and removal
• Non-corroding, silver-plated switching contact enhances durability
• Operates efficiently within a voltage range of 500Vac and 250Vdc
• Front indicators improve visibility for users
• Designed for vertical mounting to optimise space
Applications
• Suitable for high rupture capacity requirements
• Used in electrical panels to manage overloads and short circuits
• Compatible with various low-voltage installations in commercial systems
What is the maximum ambient temperature this can operate in?
The maximum ambient temperature during operation is 40°C, ensuring adaptability to various environments.
How is installation performed for this model?
Installation involves the use of non-insulated grip lugs, allowing straightforward connection within the electrical system.
What is the power loss during operation?
The power loss is calculated at 5.8W for the rated current in a hot operating state per pole.
Is there a specific environmental condition required for storage?
It should be stored in an environment with a maximum relative humidity of 90% at 20°C for optimal preservation.
