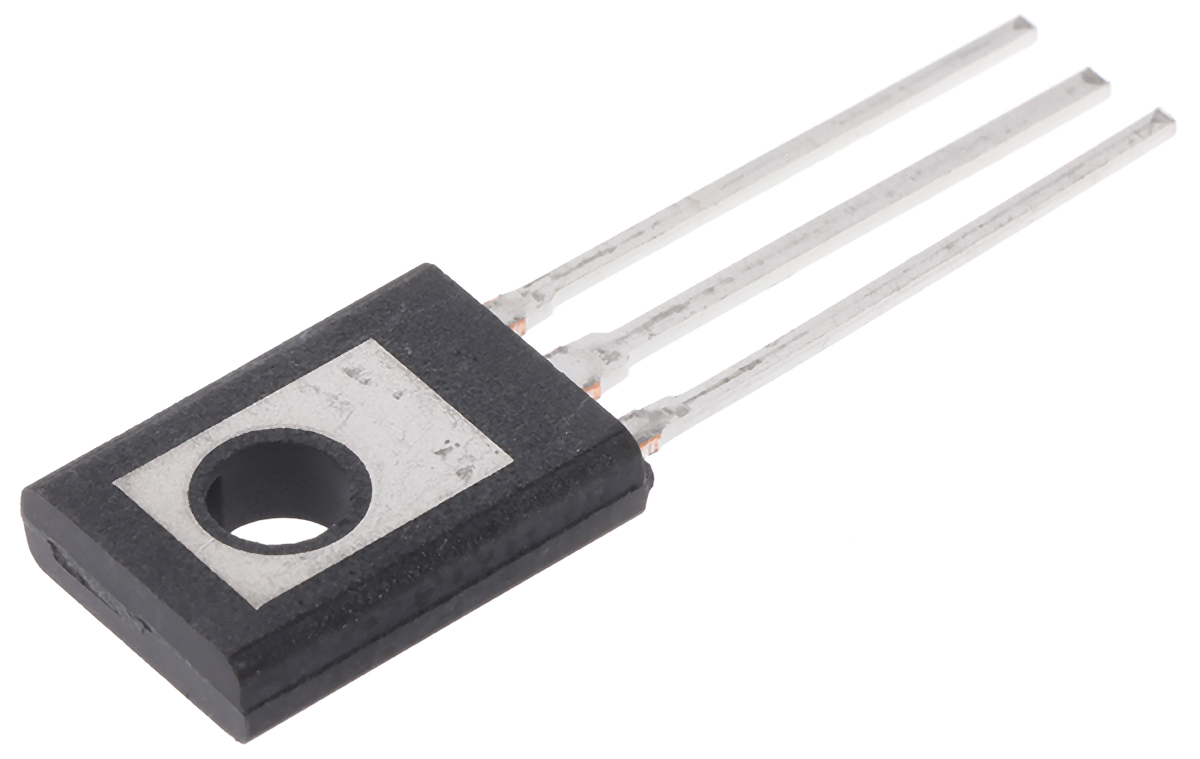

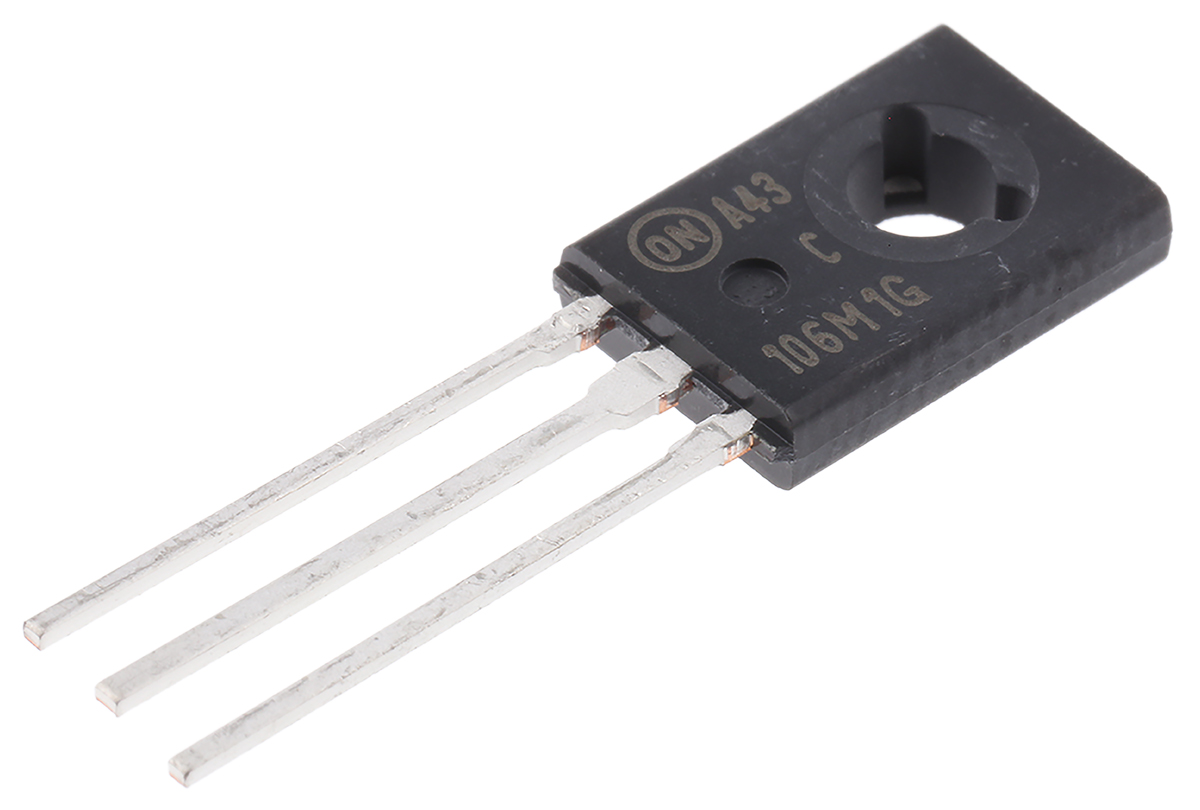

HT Part No. HT24481
Mfr. Part No. C106M1G
Manufacturer: Littelfuse
Technical Documents: C106 Series Sensitive Gate Silicon Controlled Rectifiers Data Sheet-f08c6135(datasheets) PCN - Littelfuse Acquisition of ON Semiconductor TVS Diode, Thyristor and Ignition IGBT Portfolio-29e86e19(datasheets)
| Product Attributes | |
|---|---|
| Rated Average On-State Current | 2.55A |

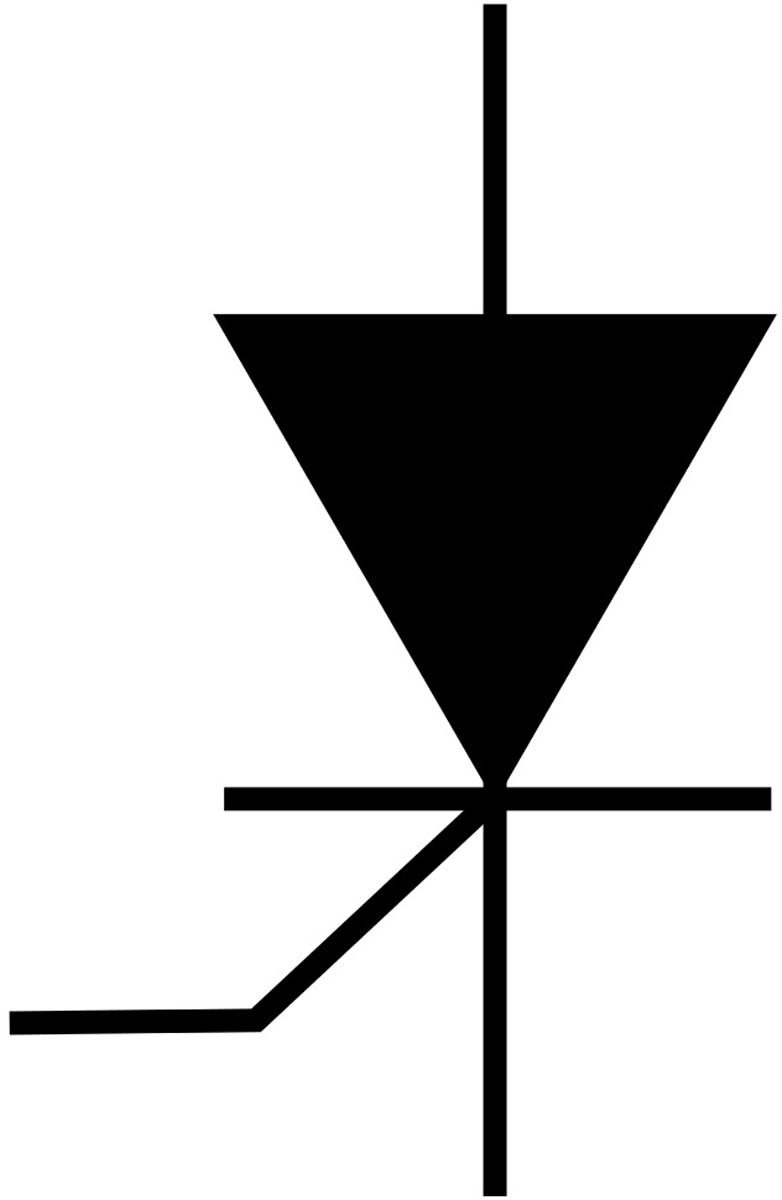

| Thyristor Type | SCR |
| Package Type | TO-225 |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 20A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 0.2mA |
| Maximum Gate Trigger Voltage | 0.8V |
| Maximum Holding Current | 3mA |
| Pin Count | 3 |
| Dimensions | 7.74 x 2.66 x 11.04mm |
| Repetitive Peak Off-State Current | 0.01mA |
| Maximum Operating Temperature | +110 °C |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Peak On-State Voltage | 2.2V |
| Minimum Operating Temperature | -40 °C |
