HT Part No. HT26989

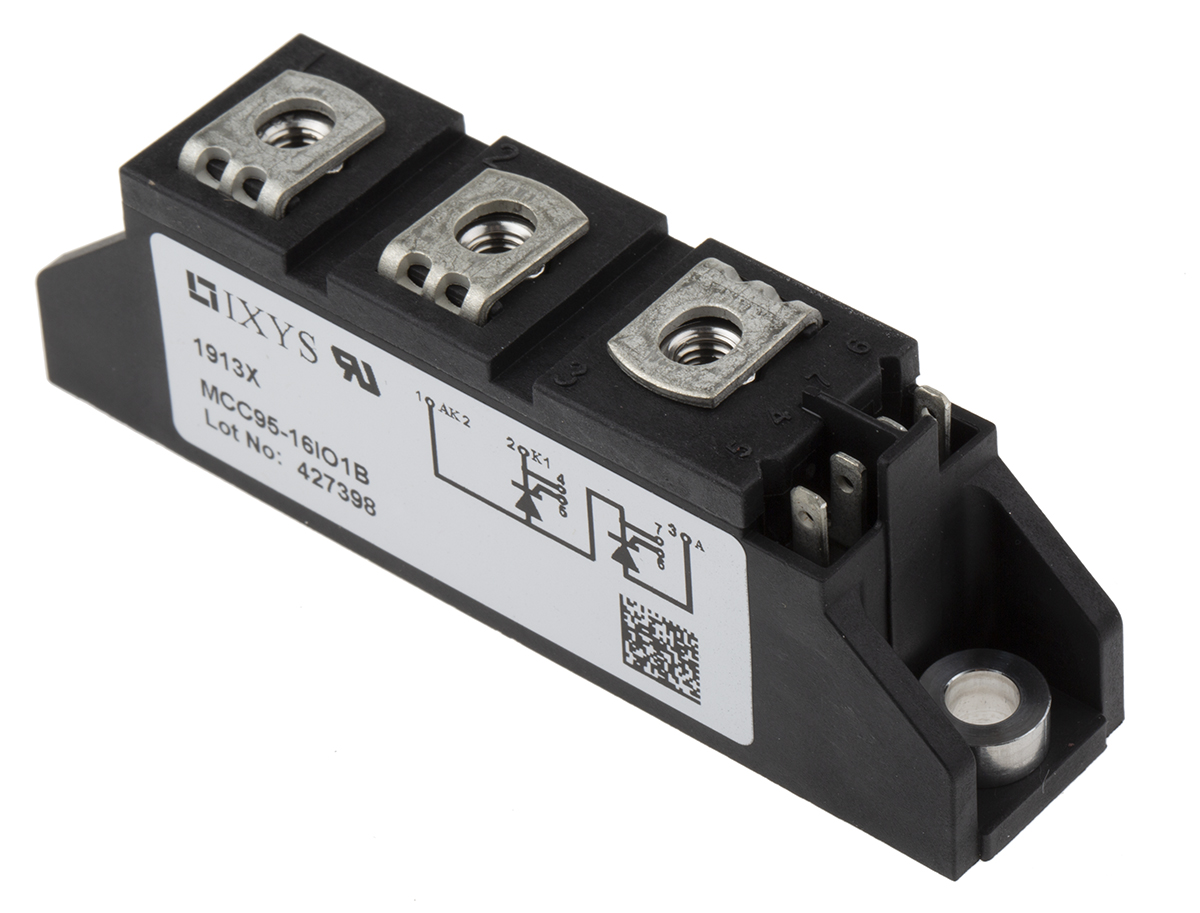

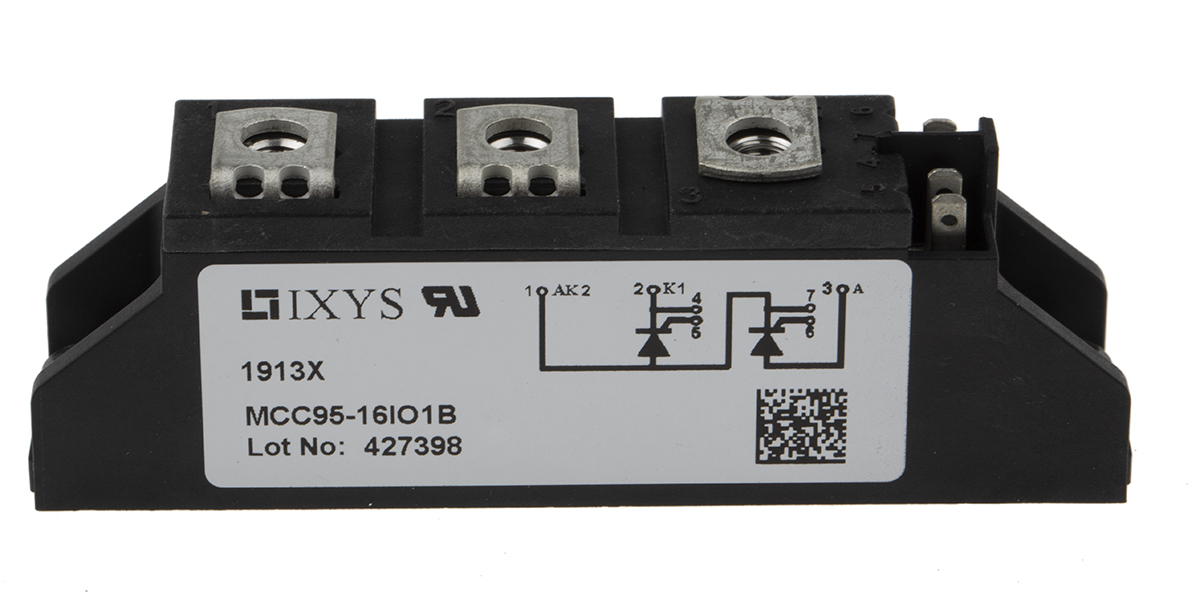

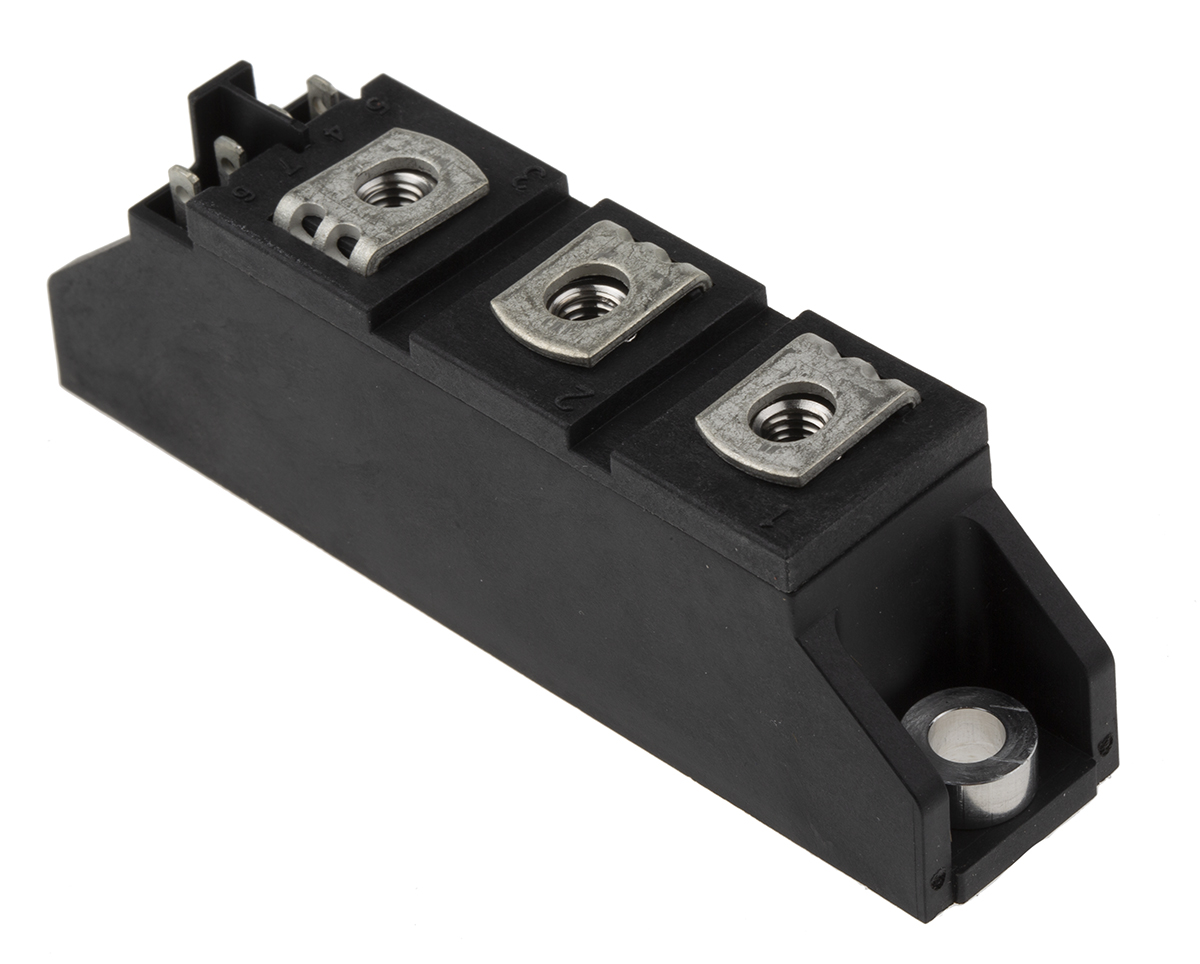

Mfr. Part No. MCC95-16IO1B
Manufacturer: IXYS
Technical Documents: MCC95-16IO1B Datasheet-7d8bd498(datasheets)
| Product Attributes | |
|---|---|
| Rated Average On-State Current | 116A |
| Thyristor Type | SCR Module |
| Package Type | TO-240AA |
| Repetitive Peak Reverse Voltage | 1600V |
| Surge Current Rating | 2.4kA |
| Mounting Type | Panel Mount |
| Maximum Gate Trigger Current | 150mA |
| Maximum Gate Trigger Voltage | 2.5V |
| Maximum Holding Current | 200mA |
| Pin Count | 7 |
| Dimensions | 92 x 20.8 x 30mm |
| Repetitive Peak Forward Blocking Voltage | 1600V |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 5mA |
| Minimum Operating Temperature | -40 °C |
| Peak On-State Voltage | 1.5V |
