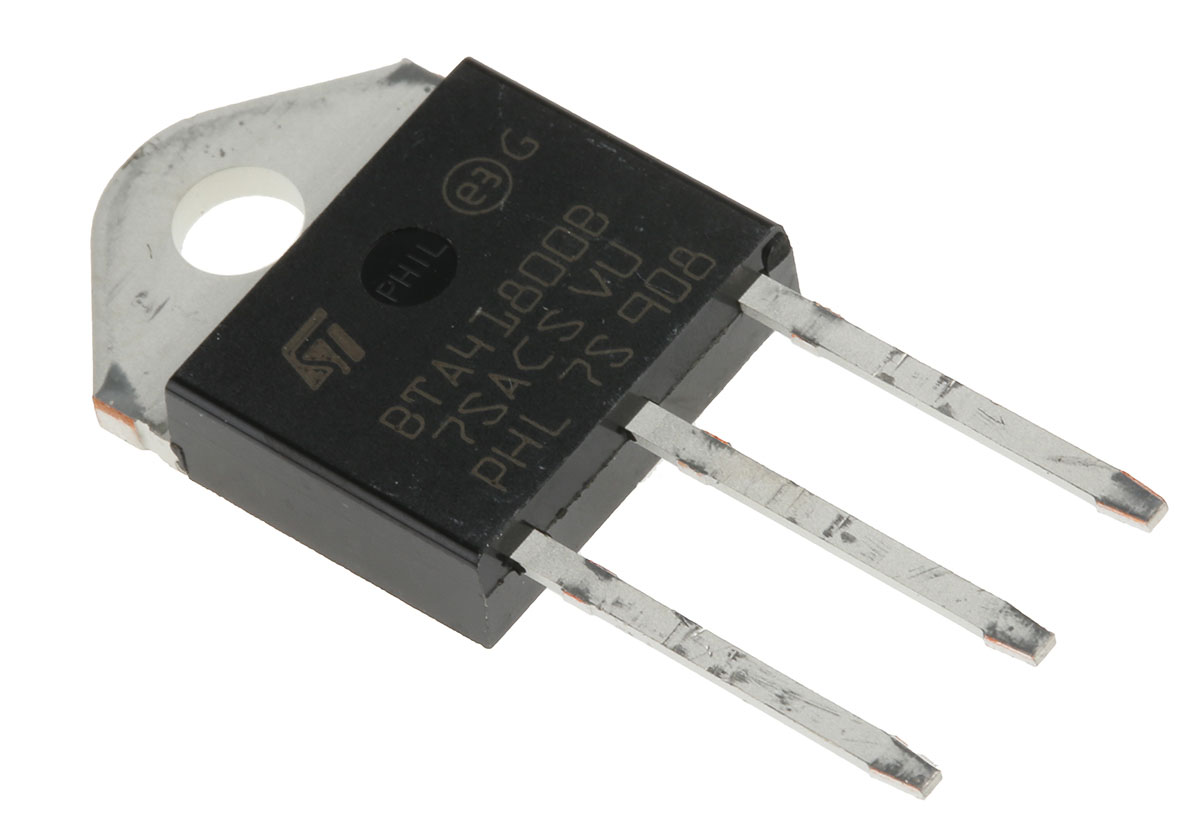

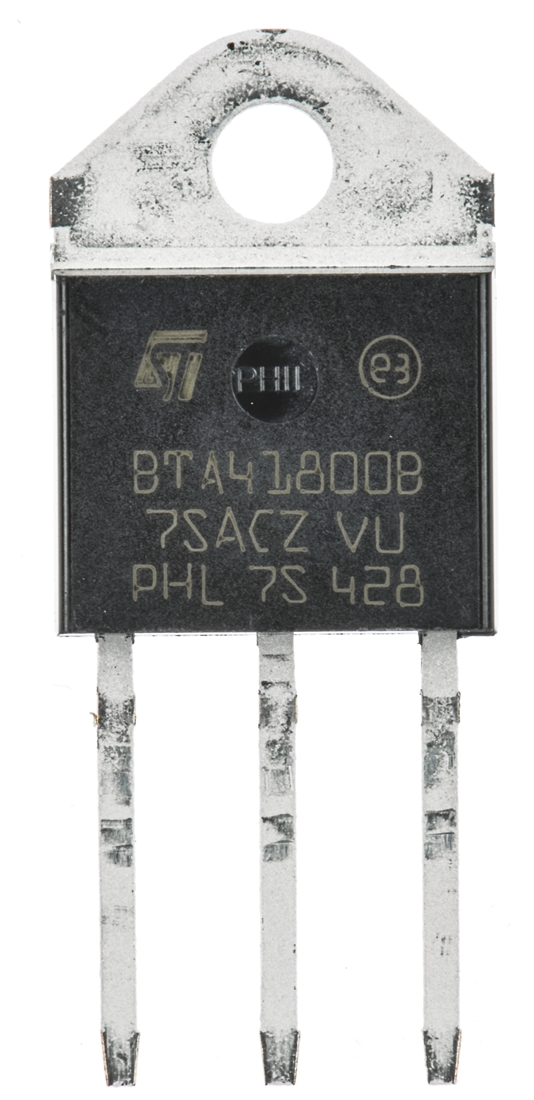

HT Part No. HT24796
Mfr. Part No. BTA41-800BRG
Manufacturer: STMicroelectronics
Technical Documents: Datasheet-404f5f4e(datasheets) ESD Control Selection Guide V1-6deb8552(datasheets)
| Product Attributes | |
|---|---|
| Rated Average On-State Current | 40A |
| Mounting Type | Through Hole |
| Package Type | TOP3 |
| Maximum Gate Trigger Current | 100mA |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 420A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 800V |
| Maximum Holding Current | 80mA |
| Dimensions | 15.5 x 4.6 x 12.85mm |
| Length | 15.5mm |
| Width | 4.6mm |
| Height | 12.85mm |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 0.005mA |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
