HT Part No. HT16324

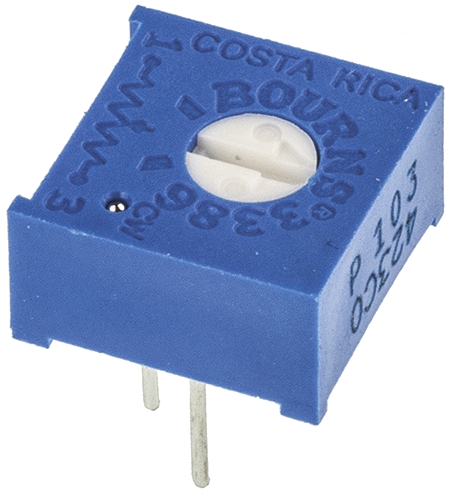

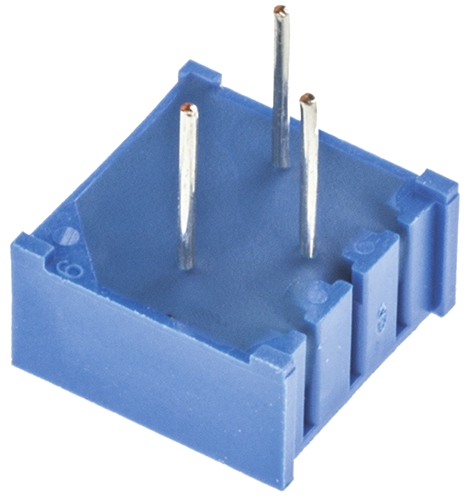

Mfr. Part No. 3386P-1-103LF
Manufacturer: Bourns
Technical Documents: Datasheet-f355f7fc(datasheets)
| Product Attributes | |
|---|---|
| Maximum Resistance | 10kΩ |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Orientation | Top Adjust |
| Power Rating | 0.5W |
| Series | 3386 |
| Termination Style | Pin |
| Tolerance | ±10% |
| Temperature Coefficient | ±100ppm/°C |
| Length | 9.53mm |
| Shaft Diameter | 3.15 mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
