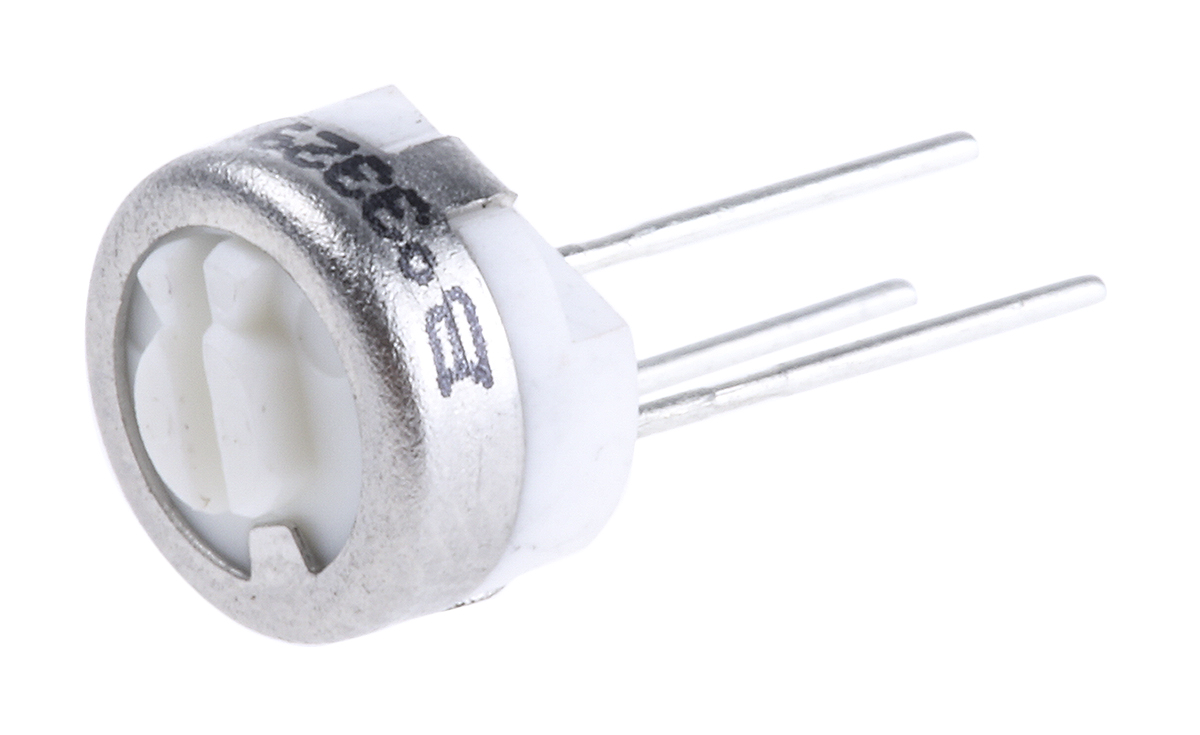

10kΩ, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3329

3329h-1-103lf 10kΩ, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3329
3329H-1-103LF
brand logo

HT Part No. HT16334

Mfr. Part No. 3329H-1-103LF

Manufacturer: Bourns

Technical Documents: 3329 - 1/4 Round Trimming Potentiometer Data Sheet-70620f50(datasheets)

50 - In Stock pcs
Price:
£ 1.56
Units Per Unit Price
50 + £ 1.56
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 10kΩ
Mounting Type Through Hole
Number of Turns 1
Orientation Top Adjust
Power Rating 0.5W
Series 3329
Termination Style Pin
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Diameter 6.35mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +150°C

More Information

Cermet 6.35mm (in.) 500mW Top Adjust 3329H Series Bourns® 3329H 1/4" Round Single Turn Cermet Trimming Potentiometer (Trimpot®) Able to withstand wave soldering and integrated circuit cleaning baths
