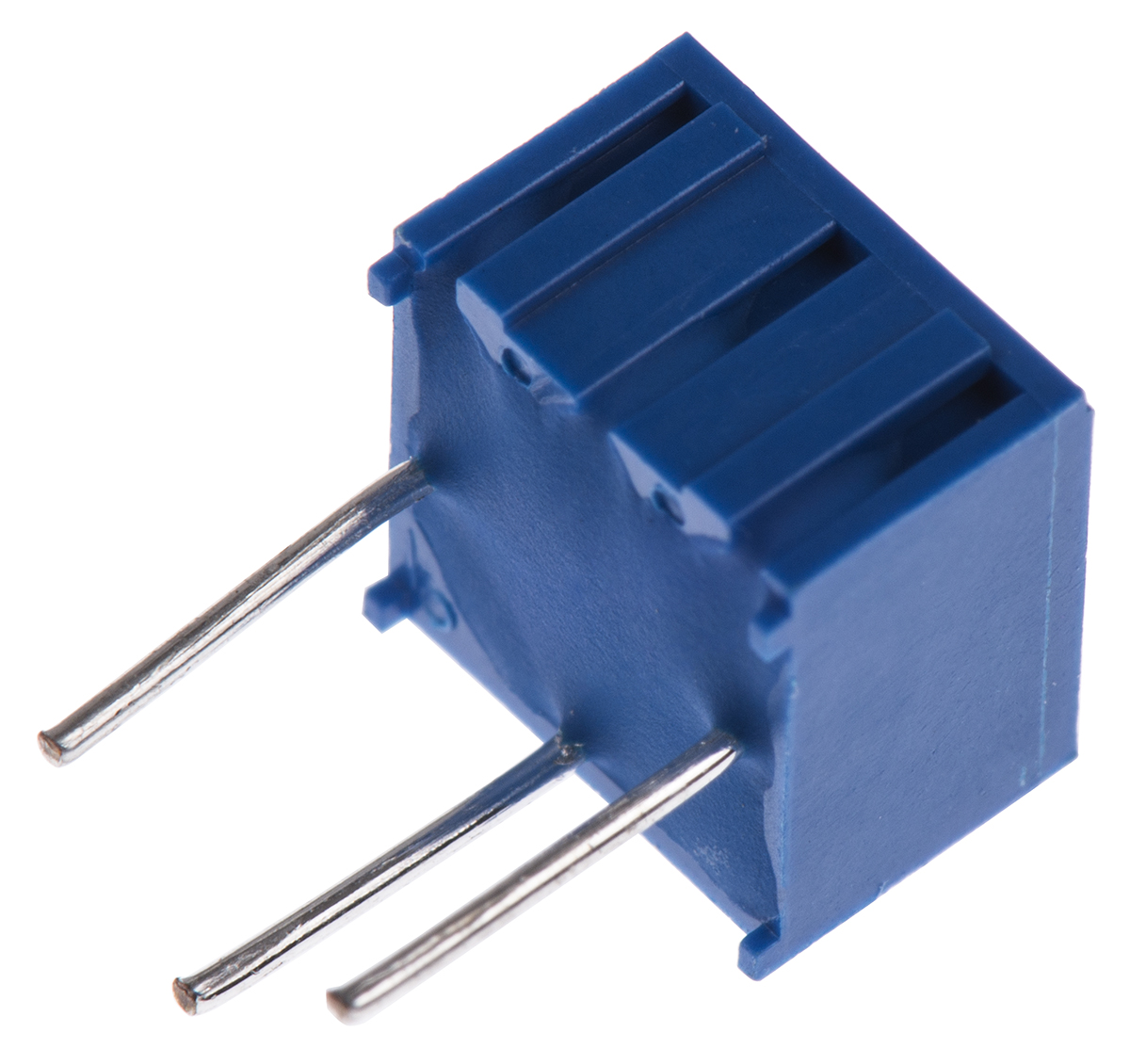

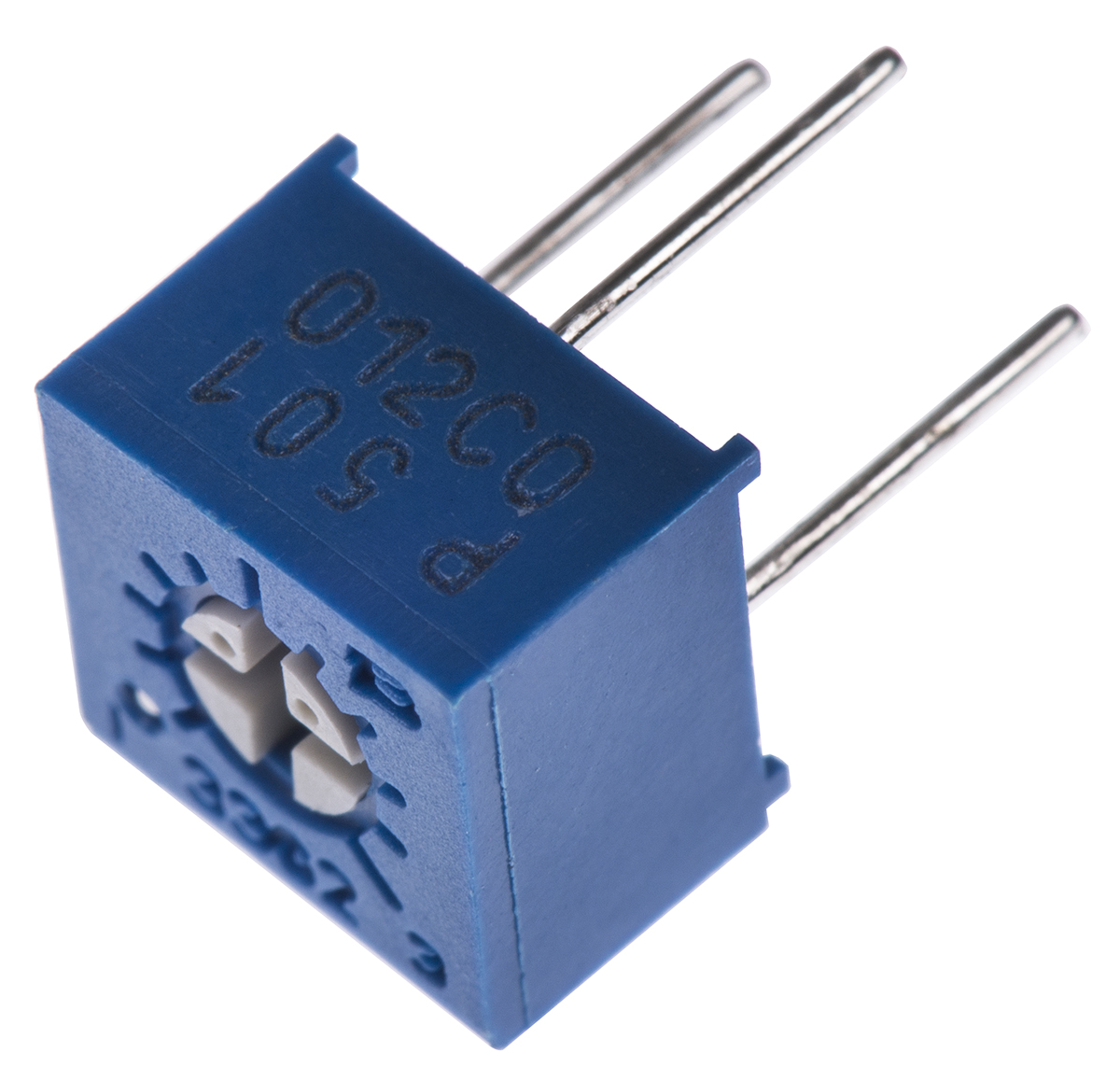

500Ω, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3362

3362p-1-501lf 500Ω, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3362
3362P-1-501LF
3362P-1-501LF
HT16284
brand logo

HT Part No. HT16284

Mfr. Part No. 3362P-1-501LF

Manufacturer: Bourns

Technical Documents: 3362 - 1/4 Square Trimming Potentiometer Data Sheet-fb309ced(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.61
Units Per Unit Price
50 - 249 £ 0.61
250 - 499 £ 0.56
500 + £ 0.50
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 500Ω
Mounting Type Through Hole
Number of Turns 1
Orientation Top Adjust
Power Rating 0.5W
Series 3362
Termination Style Pin
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Length 6.6mm
Shaft Diameter 2.77 mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C

More Information

Cermet 1//4 in. Square 500mW Top Adjust 3362P Series Miniature package
Rotor designed for automatic machine adjust interface
Sealed to withstand harsh environments and immersion cleaning
Built in board stand offs
Multi-wire wiper to minimise contact resistance variation
