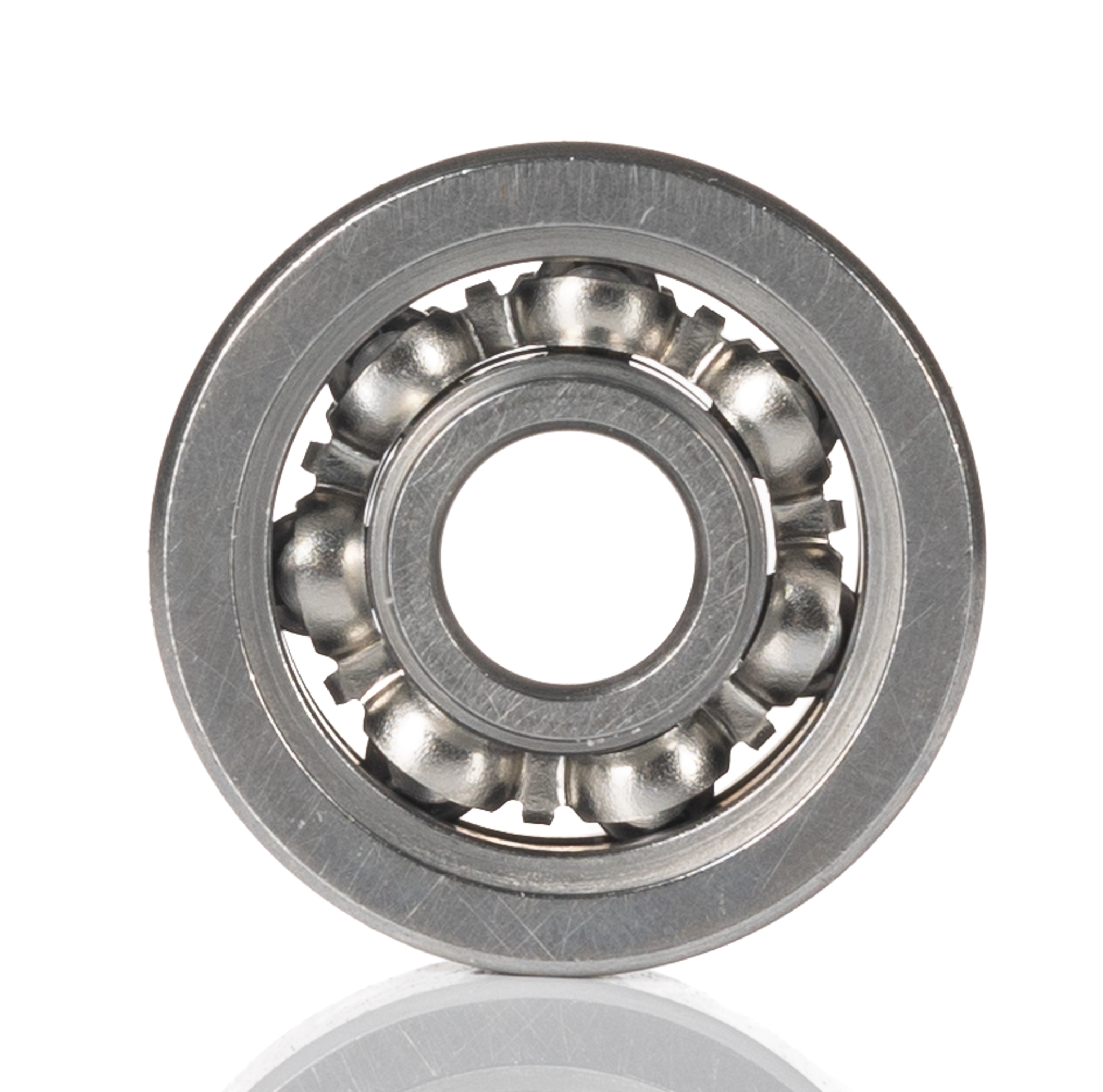

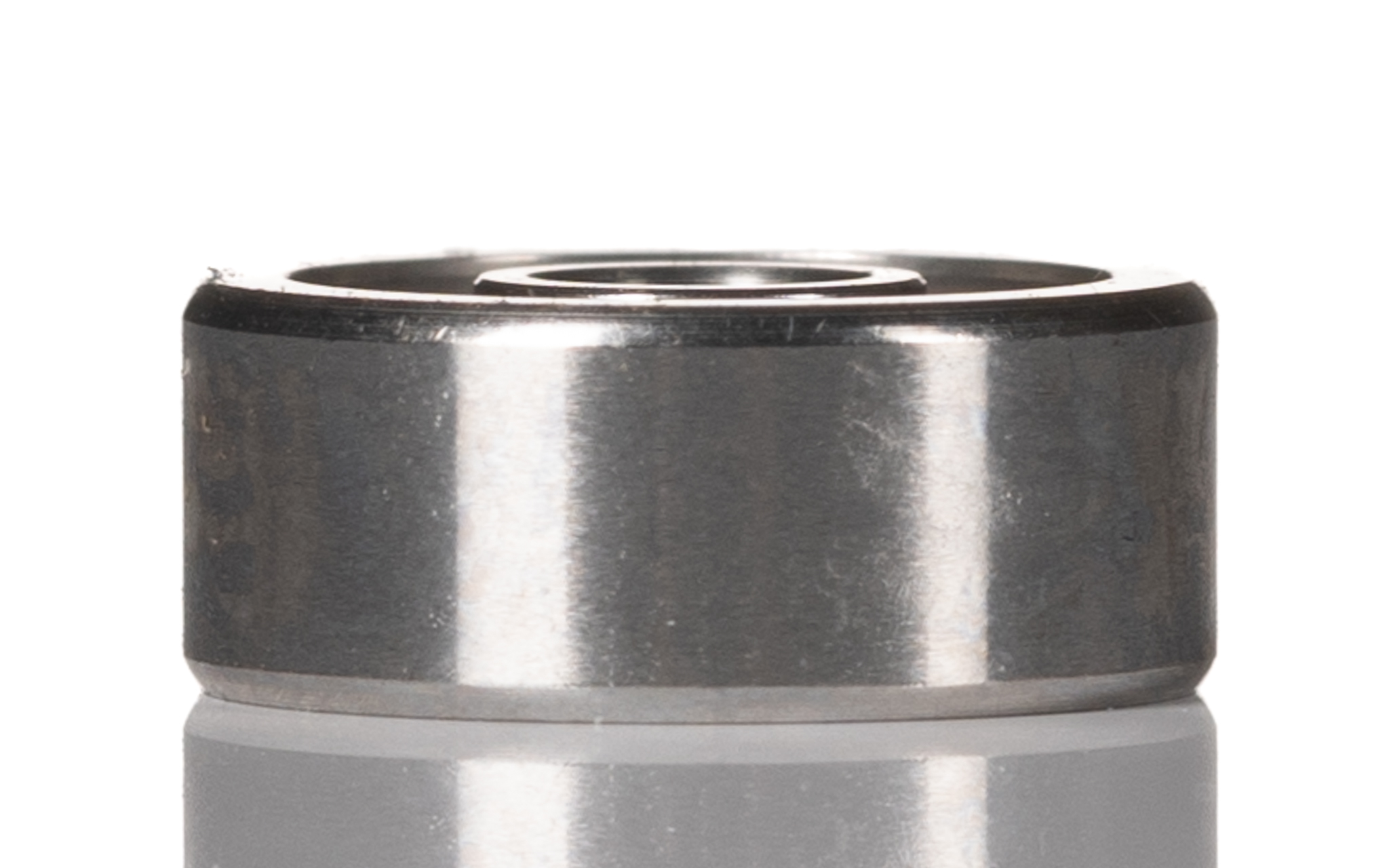

SKF 623 Single Row Deep Groove Ball Bearing- Open Type 3mm I.D, 10mm O.D

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inside Diameter 3mm
Outside Diameter 10mm
Race Width 4mm
Ball Bearing Type Single Row Deep Groove Ball Bearing
Sealing Arrangement Open Type
Bearing Clearance CN
Material Steel
Ball Material Steel
Cage Material Sheet Metal
Number of Rows 1
Static Load Rating 180N
Dynamic Load Rating 540N
Bore Type Parallel
Bearing Series 2 Light
Partial Bearing Code 623
Race Type Plain
Model Number p 623
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=2850790&DisplayLogo=False

More Information

SKF Ball Bearing, Deep-Groove Bearing Type, 3mm ID, 10mm OD - 623 When you need a versatile way to shift radial and axial loads in both directions, get your hands on this ball bearing from SKF. Its deep-groove configuration gives it low-friction properties so you can trust it moves smoothly without lubricant and is a reliable low-maintenance choice. Lower friction also helps reduce operating temperature and bearing fatigue, so you can be sure of a long service life. Thanks to an internal clearance rating of CN, you get free movement between the unit's two rings, letting it achieve limiting speeds of up to 80,000r/min. This means it's mechanically robust and able to take the strain of high-speed applications. Features & Benefits • Reference speed of 130,000r/min gives you a limiting value to avoid thermal degradation
• Dynamic load rating of 0.54kN, so tolerates substantial forces when in motion
• Creates minimal noise and vibration for use in settings where noise reduction is essential Applications • Dental tools
• Electric motors
• Optical encoders What's this bearing made of? This product's made of hardwearing carbon-rich steel, so it's a safe bet when you need a bearing with the strength and hardness to take on harsh environments.
