HT Part No. HT23392

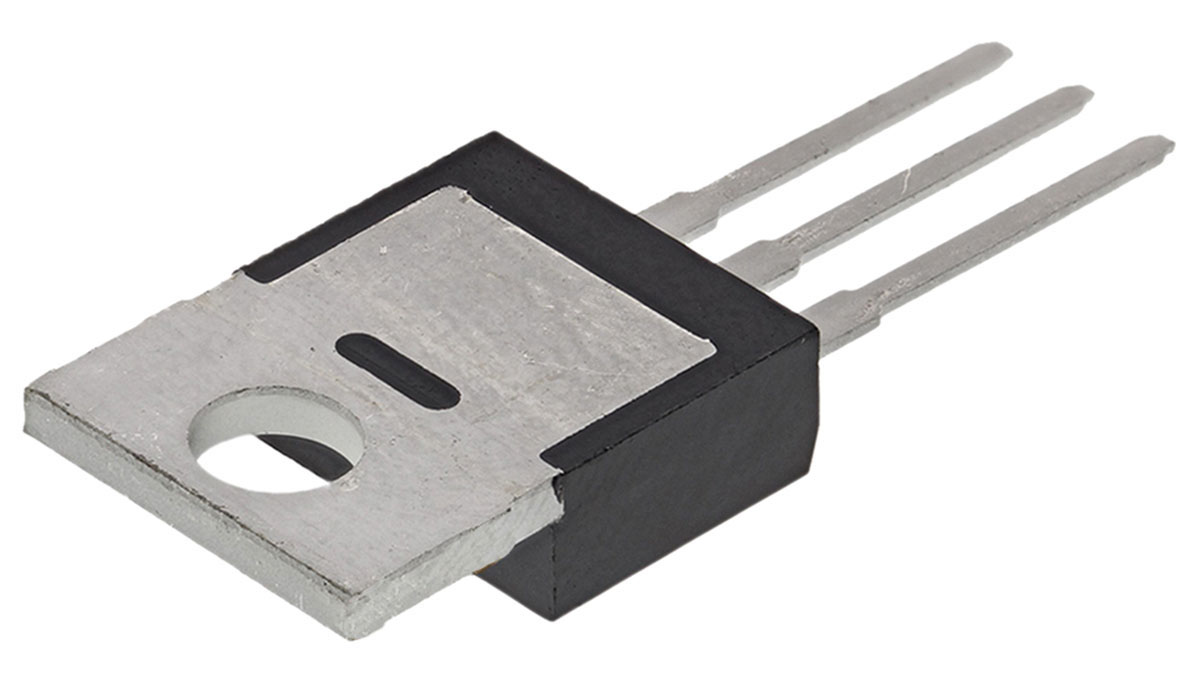

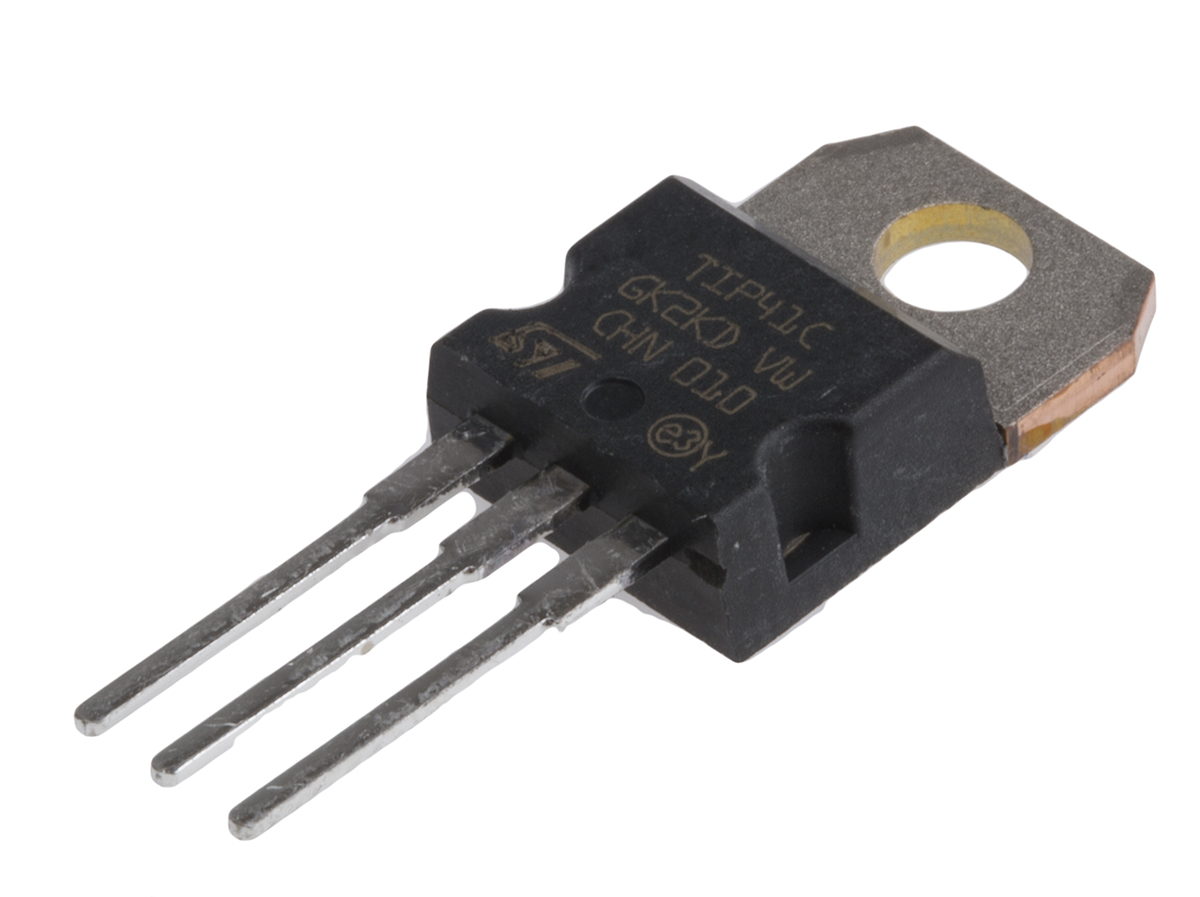

Mfr. Part No. TIP41C
Manufacturer: STMicroelectronics
Technical Documents: Datasheet-364d8efb(datasheets) ESD Control Selection Guide V1-4ea0d15e(datasheets)
| Product Attributes | |
|---|---|

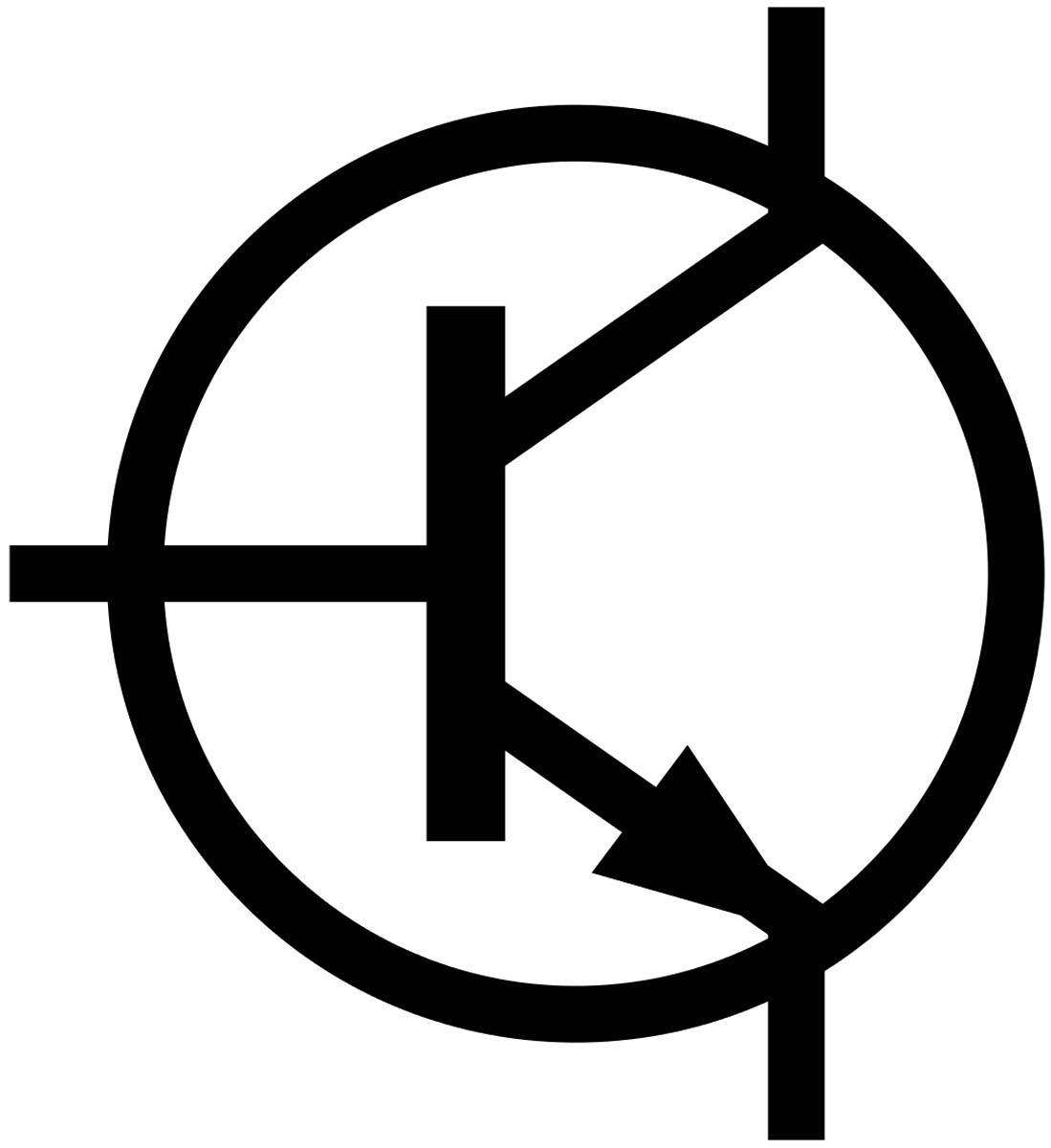

| Transistor Type | NPN |
| Maximum DC Collector Current | 6 A |
| Maximum Collector Emitter Voltage | 100 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 65 W |
| Minimum DC Current Gain | 15 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 9.15 x 10.4 x 4.6mm |
| Maximum Operating Temperature | +150 °C |
