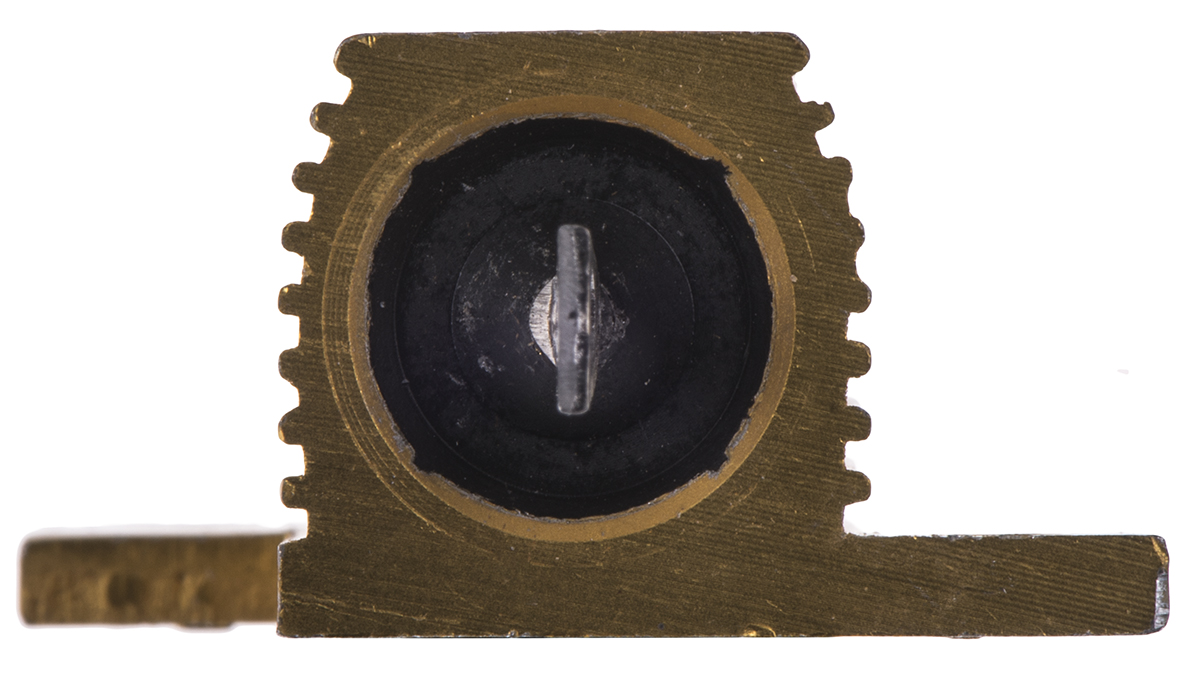

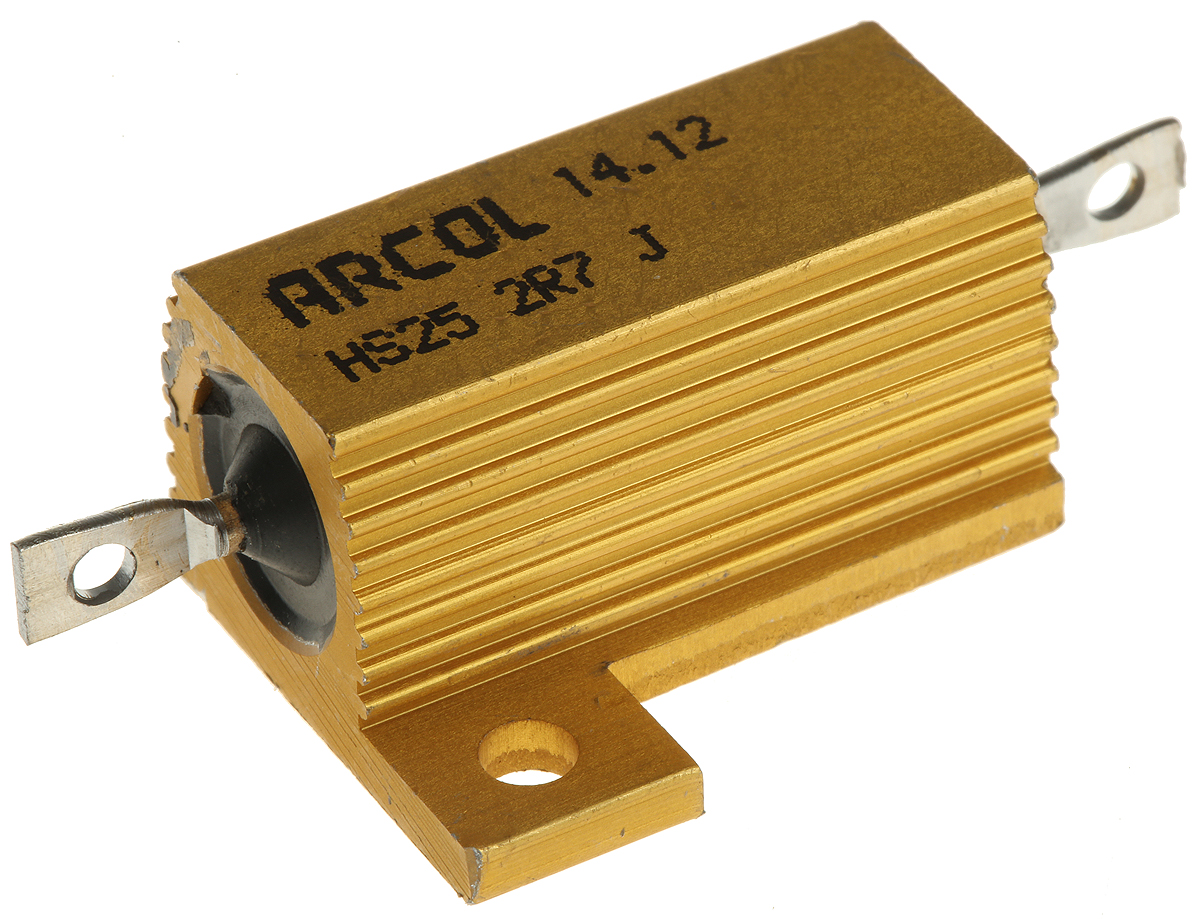

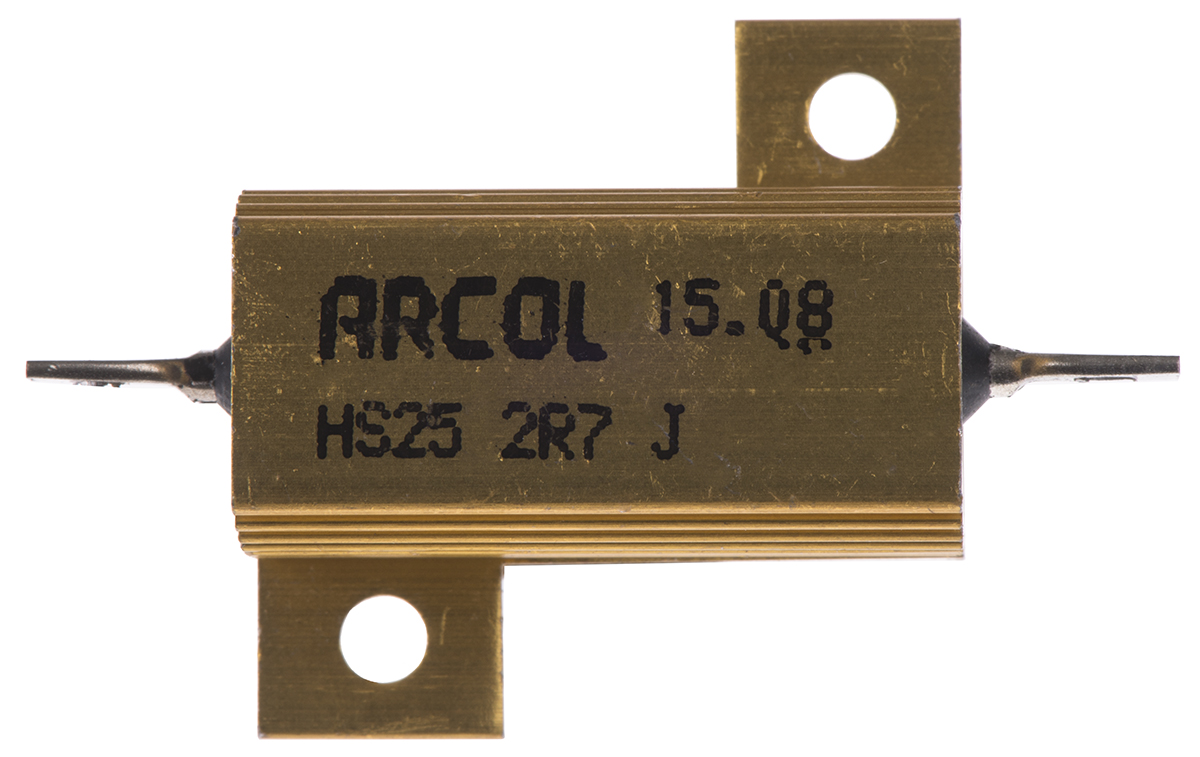

Arcol, 2.7Ω 25W Wire Wound Chassis Mount Resistor HS25 2R7 J ±5%

hs25-2r7-j Arcol, 2.7Ω 25W Wire Wound Chassis Mount Resistor HS25 2R7 J ±5%
HS25 2R7 J
HS25 2R7 J
HT25324
HT25324
Chassis Mount Resistors
brand logo

HT Part No. HT25324

Mfr. Part No. HS25 2R7 J

Manufacturer: Arcol

Technical Documents: Datasheet-1a3a6bce(datasheets) UL Approval Statement-479498d9(datasheets)

725 - In Stock pcs
Price:
£ 2.60
Units Per Unit Price
25 - 49 £ 2.60
50 - 99 £ 2.50
100 + £ 2.37
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Resistance 2.7Ω
Power Rating 25W
Series HS25
Package/Case Aluminium Housed
Tolerance ±5%
Technology Wire Wound
Termination Style Axial
Minimum Operating Temperature -55°C
Maximum Operating Temperature +200°C
Minimum Temperature Coefficient -100ppm/°C
Maximum Temperature Coefficient +100ppm/°C
Dimensions 14.6 x 51 x 28mm
Overall Height 14.6mm
Overall Length 51mm
Overall Width 28mm

More Information

25W Aluminium housed wirewound power resistor, HS Series From Arcol, the HS25 series of aluminium housed resistors are high power and offer a balance of pulse power capability and volume. These 25 W panel mount resistors are manufactured in line with IEC 115 and MIL 18546. These panel mount resistors are designed for direct heatsink mounting with thermal compound, which ensures maximum performance. Features and Benefits: At high ambient temperatures, dissipation derates linearly to zero at +200 °C Wirewound to maximise high pulse capability Compact size for power rating
