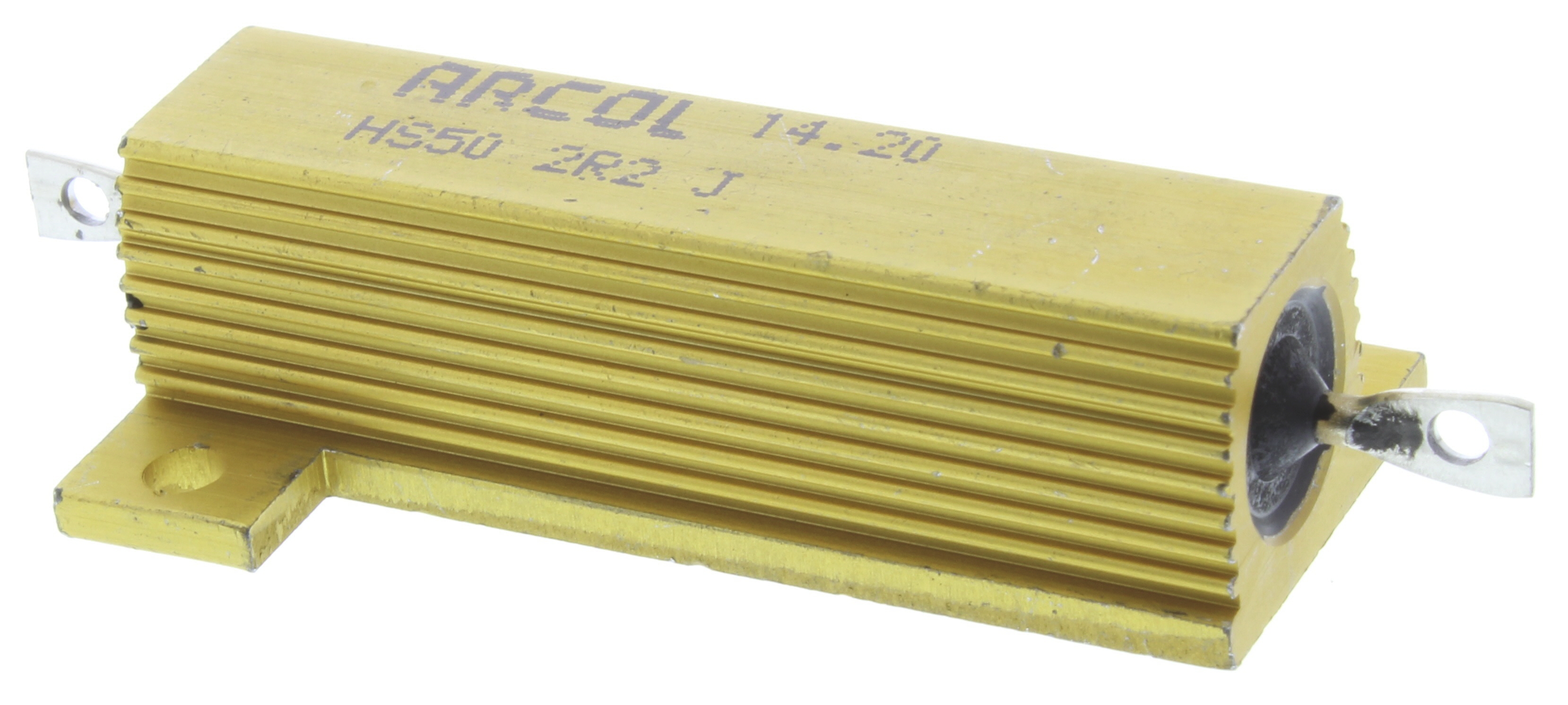

Arcol, 2.2Ω 50W Wire Wound Chassis Mount Resistor HS50 2R2 J ±5%

hs50-2r2-j Arcol, 2.2Ω 50W Wire Wound Chassis Mount Resistor HS50 2R2 J ±5%
HS50 2R2 J
HS50 2R2 J
HT28868
brand logo

HT Part No. HT28868

Mfr. Part No. HS50 2R2 J

Manufacturer: Arcol

Technical Documents: Datasheet-3b2f15a0(datasheets)

227 - In Stock pcs
Price:
£ 5.01
Units Per Unit Price
1 - 9 £ 5.01
10 - 24 £ 4.69
25 + £ 4.29
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Resistance 2.2Ω
Power Rating 50W
Series HS50
Package/Case Aluminium Housed
Tolerance ±5%
Technology Wire Wound
Termination Style Axial
Minimum Temperature Coefficient -100ppm/°C
Maximum Temperature Coefficient +100ppm/°C
Dimensions 14.8 x 72.5 x 29.7mm
Overall Width 29.7mm
Overall Height 14.8mm
Overall Length 72.5mm

More Information

50W Aluminium housed wirewound power resistor, HS Series From Arcol, the HS50 series of aluminium housed resistors are high power and offer a balance of pulse power capability and volume. These panel mount resistors are manufactured in line with IEC 115 and MIL 18546. These panel mount resistors are designed for direct heatsink mounting with thermal compound, which ensures maximum performance. Features and Benefits: At high ambient temperature dissipation derates linearly to zero at +200 °C Wirewound to maximise high pulse capability Compact size for power rating
