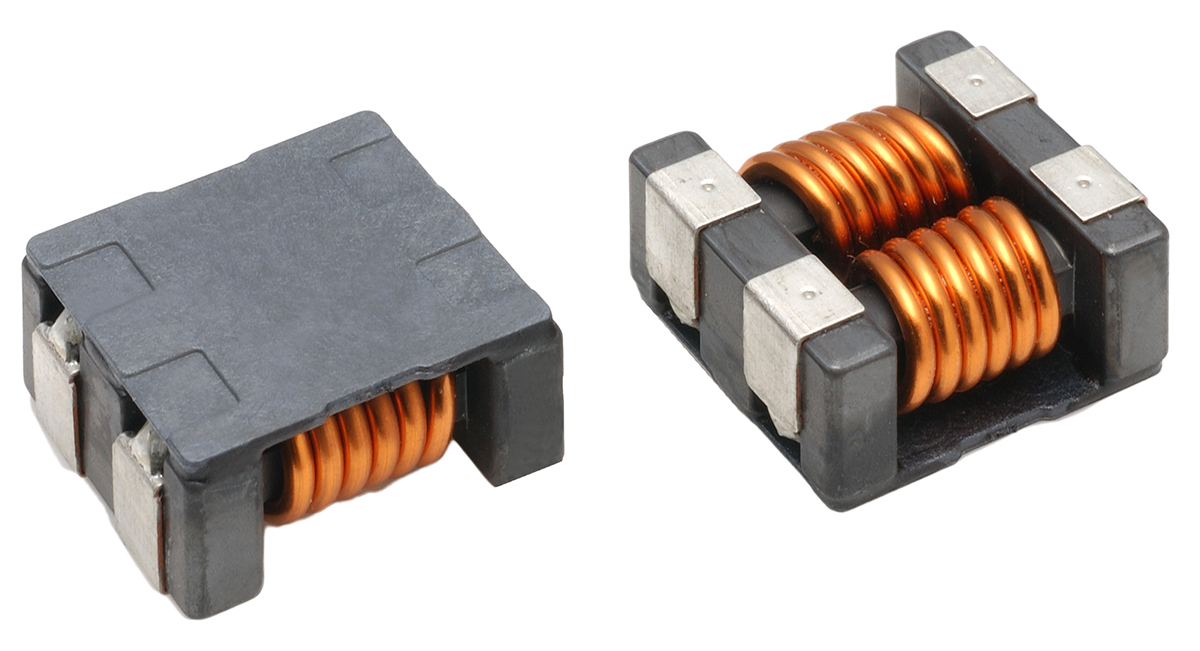

TDK 51 μH 200 mA Common mode filter 0.7Ω 80V

act1210-510-2p-tl00 TDK 51 μH 200 mA Common mode filter 0.7Ω 80V
ACT1210-510-2P-TL00
brand logo

HT Part No. HT25724

Mfr. Part No. ACT1210-510-2P-TL00

Manufacturer: TDK

Technical Documents: ACT1210 Datasheet_EN-20a19795(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 51 μH
Series ACT
Impedance 2600 Ω
Test Frequency 10 MHz
DC Resistance 0.7Ω
Maximum Current 200 mA
Dimensions 3.9 x 2.5 x 2.5mm
Operating Temperature Range -55°C → +150°C
Number of Lines 2
Mounting Type Surface Mount
Voltage Rating 80V
Termination Style Surface Mount
Package/Case 1210 (3225M)
Depth 2.5mm
Height 2.5mm
Length 3.9mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +150°C

More Information

TDK ACT1210 Series SMD Common Mode Chokes ACT common filters from TDK are a compact solution, and offer the same characteristics of the standard products (ACT45B/ACT45R) in a smaller package. With the ability to withstand temperatures ranging from -55°C to +155°C, these common mode filters are suitable for CAN-BUS and FlexRay applications. AEC-Q200 qualified
Suitable for automobile signal lines
Halogen free
Compatible with lead free solders
