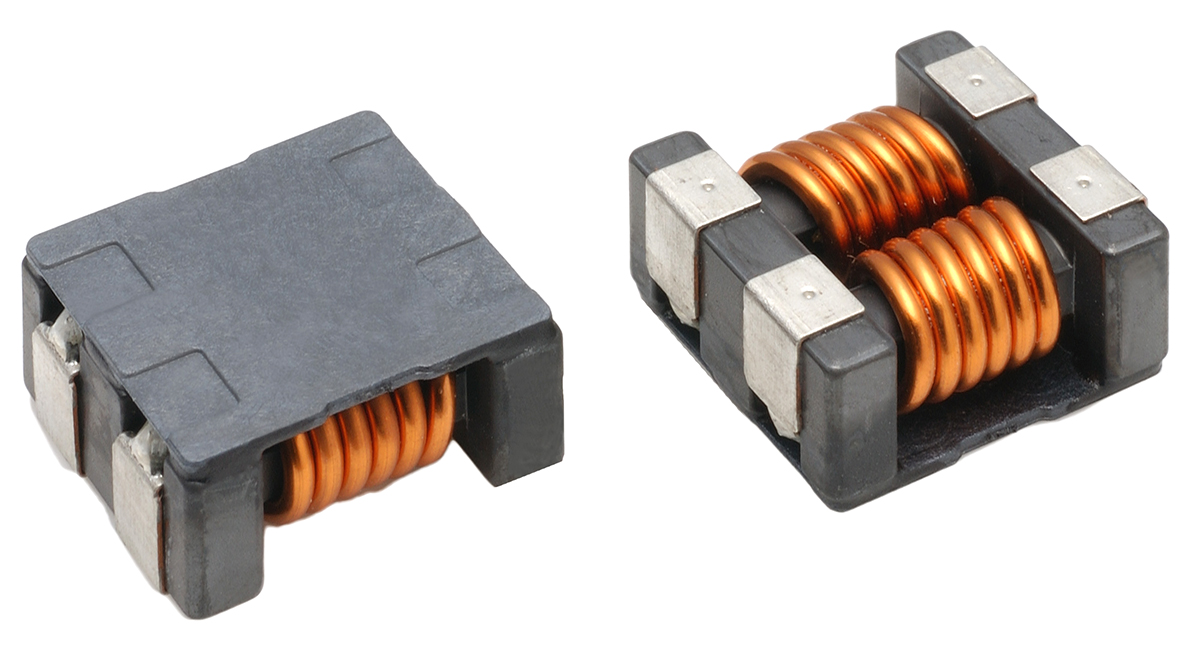

TDK 1.5 μH 4 A Common mode filter 15mΩ 80V

acm7060-701-2pl-tl01 TDK 1.5 μH 4 A Common mode filter 15mΩ 80V
ACM7060-701-2PL-TL01
brand logo

HT Part No. HT25725

Mfr. Part No. ACM7060-701-2PL-TL01

Manufacturer: TDK

Technical Documents: ACM7060 Datasheet_EN-afc7432a(datasheets) Datasheet_ACM7060-701-2PL-TL01-6afdc486(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 1.5 μH
Series ACM
Impedance 700 Ω
Test Frequency 100 MHz
DC Resistance 15mΩ
Maximum Current 4 A
Dimensions 7 x 6 x 3.5mm
Operating Temperature Range -40°C → +85°C
Number of Lines 2
Mounting Type Surface Mount
Voltage Rating 80V
Termination Style Surface Mount
Package/Case 7060
Depth 6mm
Height 3.5mm
Length 7mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C

More Information

Common Mode Filter ACM3225/4532/
7060/9070/1211/1513 Large-Current Wirewound Chip Common Mode Filter
Supports up to 10 A
