Common Mode Filter ACM3225/4532/
7060/9070/1211/1513

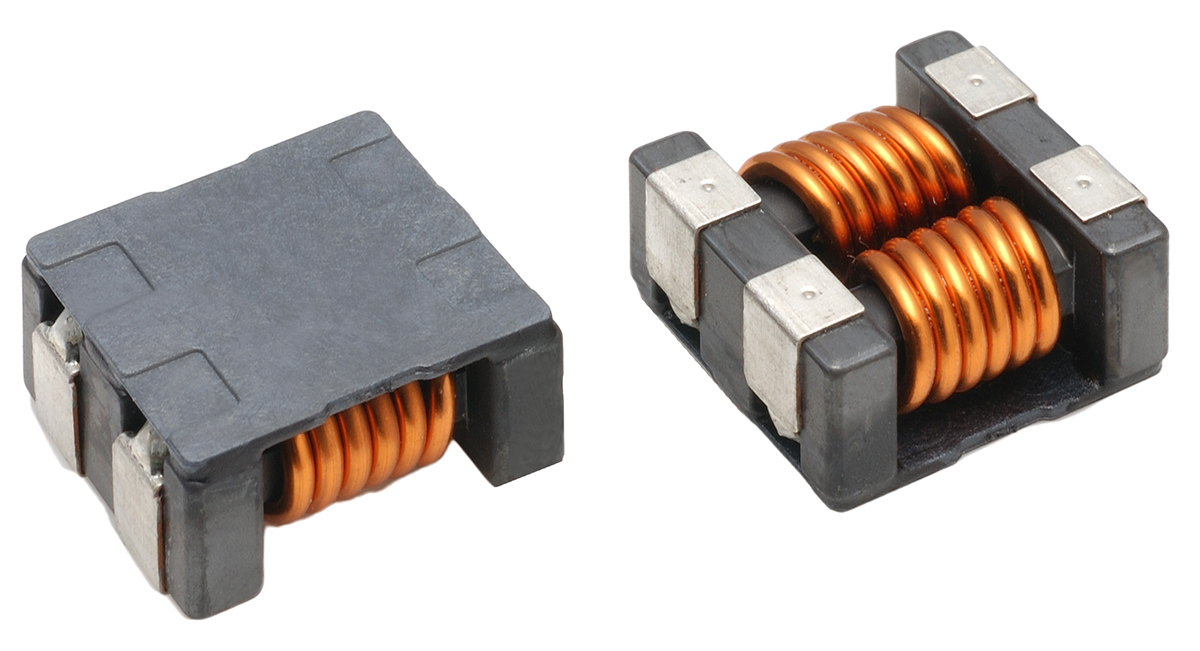

Large-Current Wirewound Chip Common Mode Filter
Supports up to 10 A
HT Part No. HT25728
Mfr. Part No. ACM1211-102-2PL-TL01
Manufacturer: TDK
Technical Documents: ACM1211 Datasheet_EN-b20a2913(datasheets)
| Product Attributes | |
|---|---|
| Inductance | 33.7 μH |
| Series | ACM |
| Impedance | 1000 Ω |
| Test Frequency | 100 MHz |
| DC Resistance | 14mΩ |
| Maximum Current | 6 A |
| Dimensions | 12 x 11 x 6mm |
| Operating Temperature Range | -40°C → +85°C |
| Number of Lines | 2 |
| Mounting Type | Surface Mount |
| Voltage Rating | 80V |
| Termination Style | Surface Mount |
| Package/Case | 1211 |
| Height | 6mm |
| Minimum Operating Temperature | -40°C |
| Depth | 11mm |
| Maximum Operating Temperature | +85°C |
| Length | 12mm |
