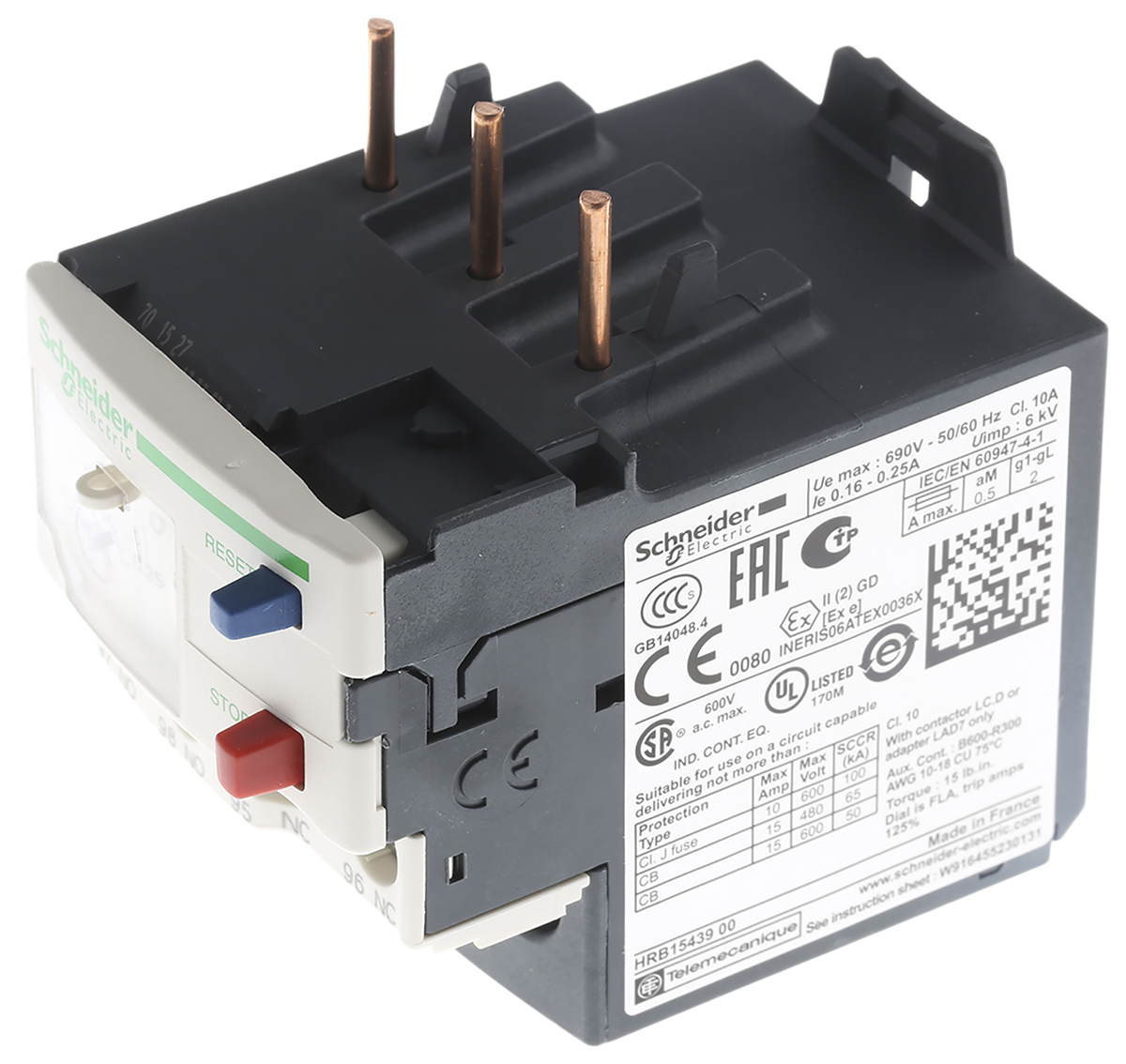

Schneider Electric LRD Overload Relay, 0.16 → 0.25 A F.L.C, 250 mA Contact Rating, 3P, TeSys

lrd02 Schneider Electric LRD Overload Relay, 0.16 → 0.25 A F.L.C, 250 mA Contact Rating, 3P, TeSys
LRD02
LRD02
HT16541
brand logo

HT Part No. HT16541

Mfr. Part No. LRD02

Manufacturer: Schneider Electric

Technical Documents: TeSys protection components Data Sheet-896e7e77(datasheets) LRD02-Datasheet-c9701151(datasheets) Product Change Notice (PCN)-e0068913(datasheets) Product Environmental Profile-372ea61a(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 41.26
Units Per Unit Price
1 + £ 41.26
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
FLC Motor Rating 0.16 → 0.25 A
Contact Current Rating 250 mA
Range TeSys
Pole Configuration 3P
Series LRD
Mounting Style Direct Contactor
Terminal Type Screw
Reset Method Automatic, Manual
Width 45mm
Depth 66mm
Length 123mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Better World Verification Green Premium
Better World Product Yes
Operating Temperature Range -20 → +60 °C
Contact Voltage Rating 690 V ac

More Information

TeSys thermal protection three-pole relays Range of TeSys thermal relays for motor protection.
Compensated, with automatic or manual reset, and trigger display.
Equipped with test function.
To be mounted on LC1 type contactors from the TeSys range.
No direct fitting on old contactors (add panel ) for refs. LRD01 to LRD35.
Possible to use pre-wiring kit and assembly support for DIN rail.
