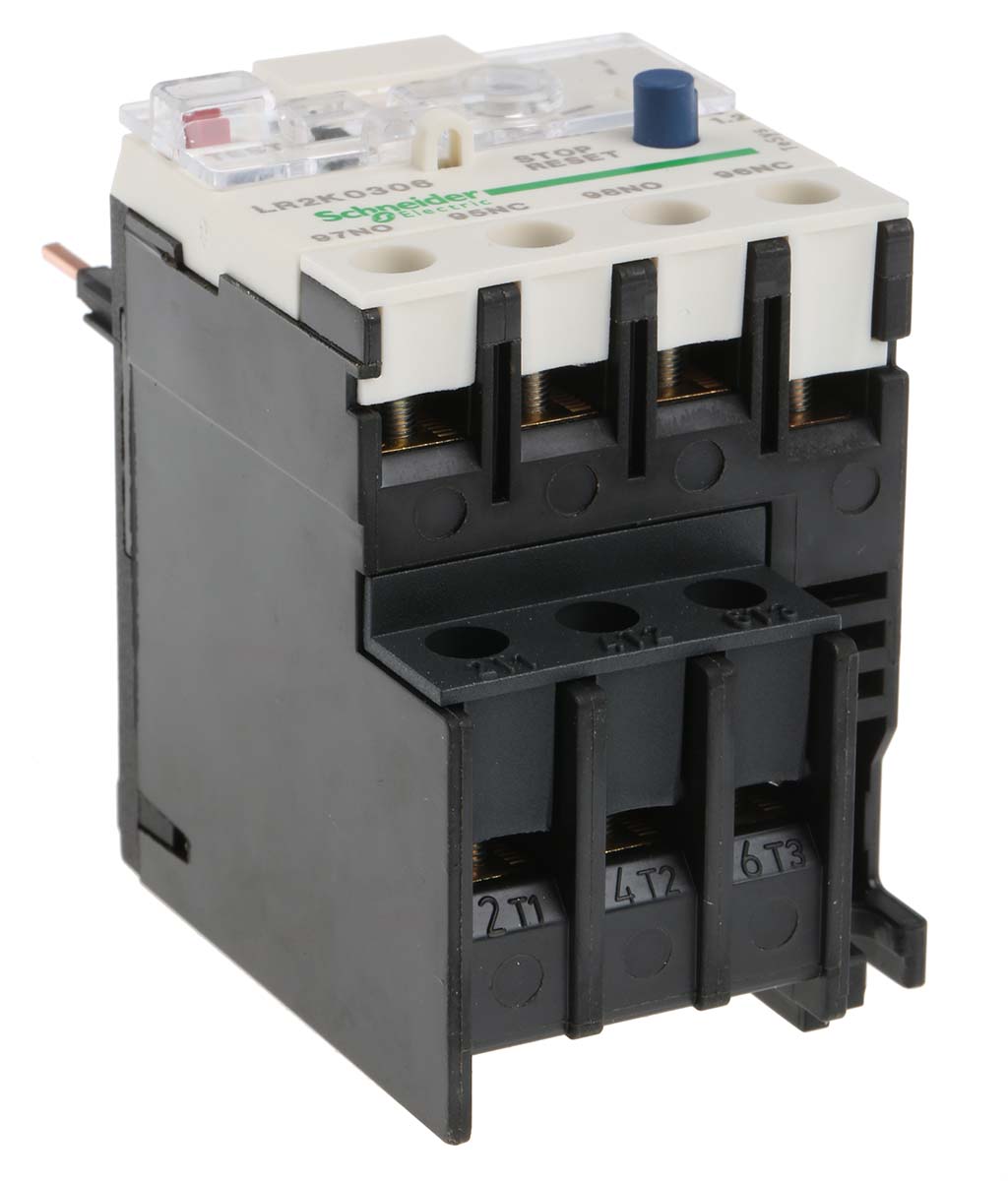

Schneider Electric LR2K Thermal Overload Relay 1NO + 1NC, 0.8 → 1.2 A F.L.C, 1.2 A Contact Rating, 100 W, 250 V

lr2k0306 Schneider Electric LR2K Thermal Overload Relay 1NO + 1NC, 0.8 → 1.2 A F.L.C, 1.2 A Contact Rating, 100 W, 250 V
LR2K0306
LR2K0306
HT26764
HT26764
Contactor Overload Relays
Contactor Overload Relays
lr2k0306 Schneider Electric LR2K Thermal Overload Relay 1NO + 1NC, 0.8 → 1.2 A F.L.C, 1.2 A Contact Rating, 100 W, 250 VSchneider Electric
brand logo

HT Part No. HT26764

Mfr. Part No. LR2K0306

Manufacturer: Schneider Electric

Technical Documents: K 3-Pole Contactors for Motor Control -References-595b5e79(datasheets) UL E164353-21886c26(datasheets) LR2K0306 Datasheet-bf979062(datasheets) Green Premium Ecolabel-b8aa7bbc(datasheets) Green Premium - Product Environmental Profile-af0e243d(datasheets) Product Environmental Profile-b662cf30(datasheets) Instruction Sheet - LR2K0306-2c31d2fb(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
FLC Motor Rating 0.8 → 1.2 A
Contact Current Rating 1.2 A
Range TeSys
Pole Configuration 3P
Series LR2K
Mounting Style Direct Contactor
Power Rating 100 W
Normal State Configuration 1NO + 1NC
Terminal Type Screw
Reset Method Automatic, Manual
Width 45mm
Number Of Auxiliary Contacts 2
Depth 65mm
Length 116mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +55°C
Better World Product Yes
Operating Temperature Range -20 → +55 °C
Better World Verification Green Premium
Contact Voltage Rating 690 V ac
Control Voltage 250 V dc, 690 V ac
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=758939&DisplayLogo=False

More Information

Schneider Electric LR2K Series Thermal Overload Relay, 1NO + 1NC, Direct Contactor Mounting Style - LR2K0306 This thermal overload relay from Schneider Electric is designed to protect motors from overheating and damage, with a contact voltage rating of 690V AC and a motor rating of 1.2A. It ensures reliable performance and durability in demanding industrial environments. Features & Benefits • Automatic reset function for convenient operation
• Direct contactor mounting style for easy installation
• Screw terminal type relay for secure connections
• On delay timer type for precise control
• 1 C/O pole contact composition for versatility Applications • Ideal for use in motor control panels
• Suitable for HVAC systems
• Can be used for protecting pumps and compressors Can this thermal overload relay handle a maximum temperature of +55°C? Yes, the Schneider Electric thermal overload relay is designed to operate effectively in temperatures up to +55°C. Will it automatically reset after a trip? Yes, this relay features an automatic reset function for convenience and ease of use. Is the LR2K0306 suitable for use in motor control panels? Yes, the relay from Schneider Electric is ideal for applications in motor control panels.
