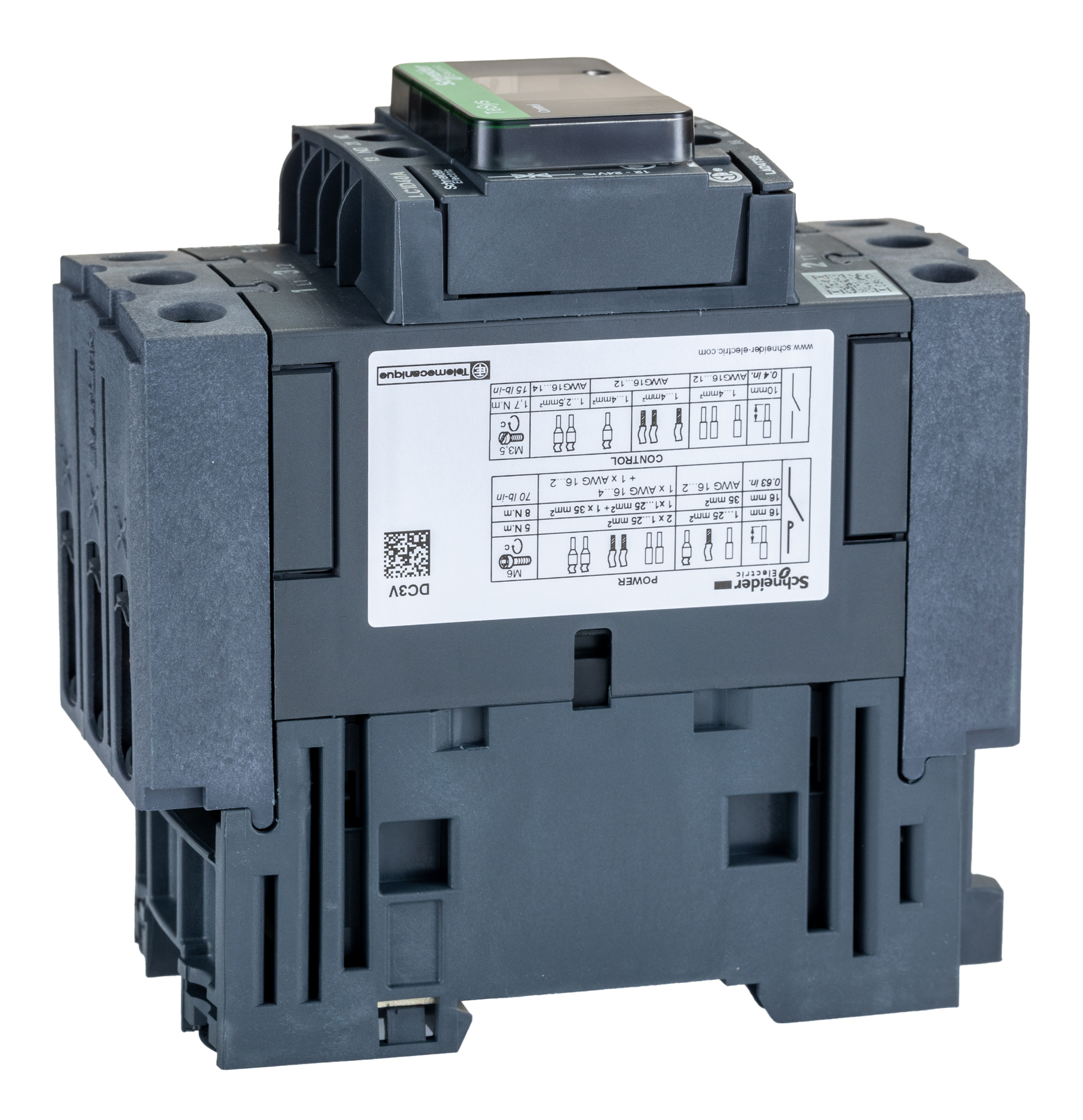

Schneider Electric LC1D40ABD
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3/3e (18.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 90A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Features & Benefits
• 24V DC coil voltage enables versatile control
• Operates with a current rating of 40A for high efficiency
• Suitable for motor control and resistive loads
• Includes 2 auxiliary contacts for added functionality
• Screw terminal connections simplify wiring
• Green Premium certified, reflecting environmental responsibility
Applications
• Ideal for use in motor control applications
• Suitable for HVAC systems
• Utilised in manufacturing and processing machinery
• Commonly found in pumping and conveyor systems
Can it handle multiple types of loads?
Yes, it is suitable for resistive and motor loads.
Is it compatible with different operational voltages?
It operates effectively at various voltages up to 690V AC.
Will it provide performance in harsh environments?
Yes, it adheres to IP20 protection standards and possesses robust durability.
Can it be easily integrated into existing systems?
Yes, the screw terminal design facilitates straightforward integration.
