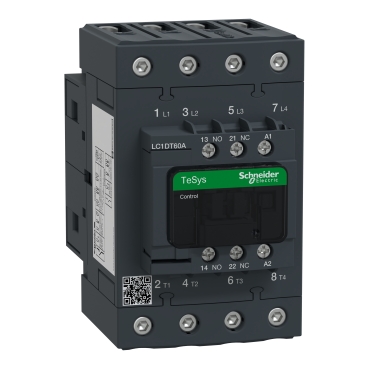

Schneider Electric TeSys D Contactor, 230 V ac Coil, 4-Pole, 60 A, 4NO

Schneider Electric LC1DT60AP7 TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 60A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connections by EverLink BTR screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Power contacts have a 60A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.40 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. The Schneider Electric TeSys series model is a 4 pole contactor featuring a 230 V ac operating coil which built-in bidirectional peak limiting diode suppressor, with an AC-1 full load current rating of 60 A. It is allows control by a maintained signal and compact in size which is suitable for use in a wide variety of application. IP degree of protection IP20
Ambient air temperature for operation from -40 to 60 °C
Network frequency 50 Hz
