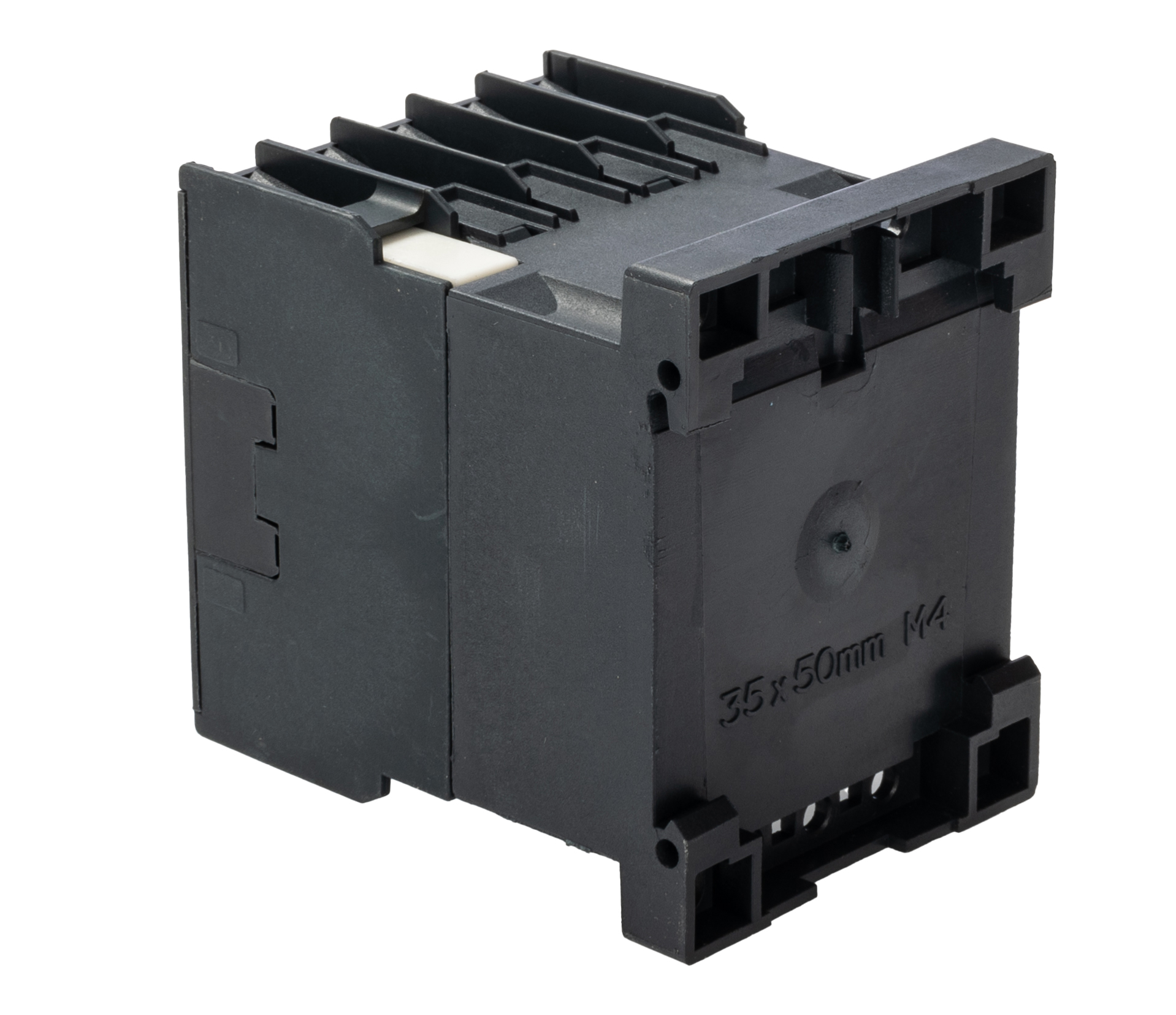

Schneider Electric LC1K0601F7
LC1K0601F7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 6A AC-3 2.2kW@400V, it includes a 110V 50/60Hz AC coil and 1NC auxiliary contact. LC1K0601F7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 110V 50/60Hz AC coil and 1NC built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NC built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).
Features & Benefits
• DIN rail mountable for easy installation
• 3-pole configuration for efficient power control
• Auxiliary contact 1NC provides additional functionality
• Screw terminal connections for secure wiring
Applications
• Motor control in industrial machinery
• HVAC systems for efficient operation
• Lighting control in commercial buildings
Can it handle high voltage applications?
Yes, this contactor is rated for up to 690V AC for power circuit applications.
Is it suitable for use in challenging environments?
Yes, with an IP2x degree of protection, it is well-suited for various operating conditions.
