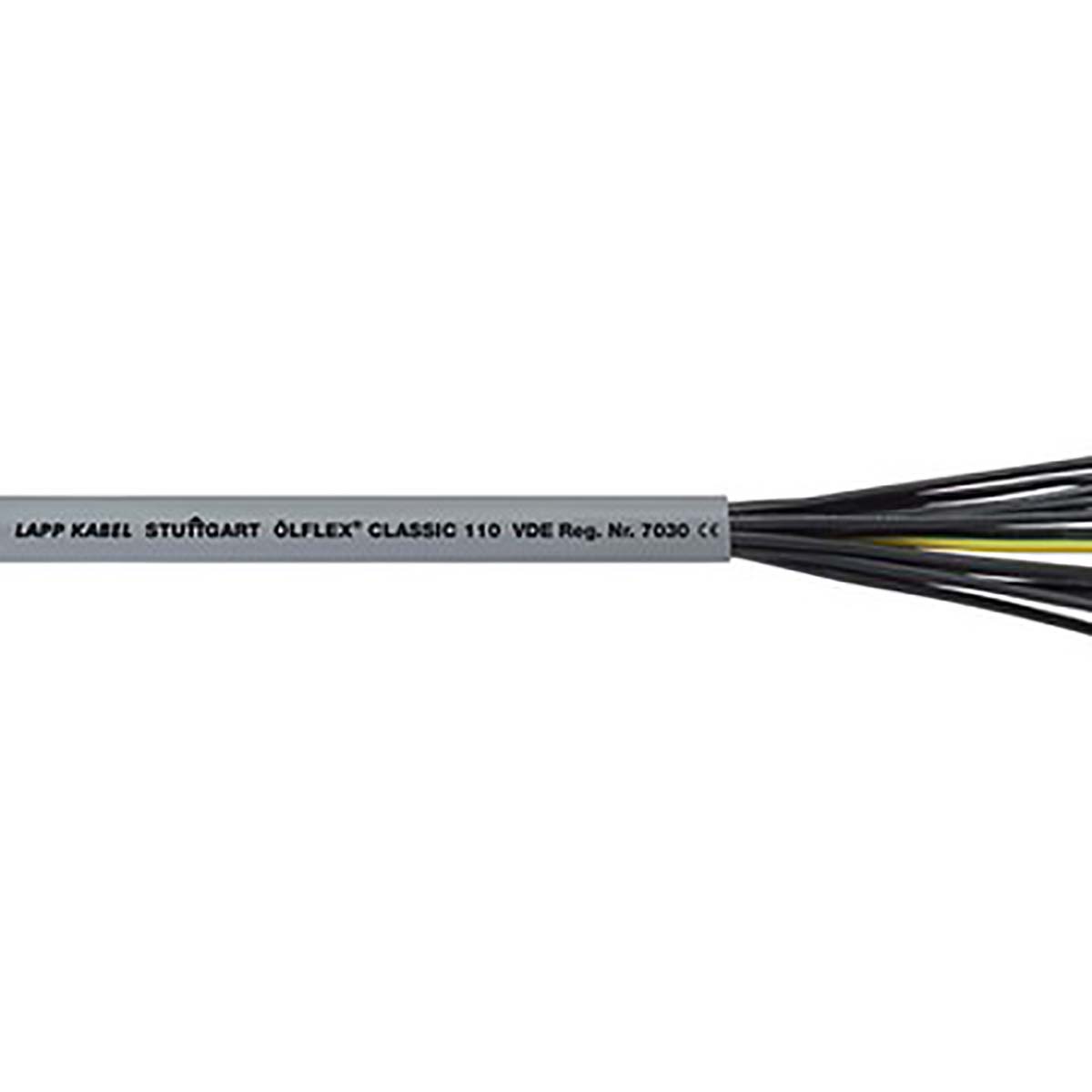

Lapp ÖLFLEX CLASSIC 110 Control Cable, 18 Cores, 1 mm², YY, Unscreened, 50m, Grey PVC Sheath, 17 AWG

1119218 Lapp ÖLFLEX CLASSIC 110 Control Cable, 18 Cores, 1 mm², YY, Unscreened, 50m, Grey PVC Sheath, 17 AWG
1119218
1119218
HT23534
HT23534
Control Cable
brand logo

HT Part No. HT23534

Mfr. Part No. 1119218

Manufacturer: Lapp

Technical Documents: Datasheet-2a75d2aa(datasheets) Cable Selection Guide-81635ef3(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Series ÖLFLEX CLASSIC 110
Number of Cores 18
Cross Sectional Area 1 mm²
American Wire Gauge 17 AWG
Conductor Material Copper
Sheath Material PVC
Sheath Colour Grey
Control Cable Type YY
Screened/Unscreened Unscreened
Length 50m
Minimum Bend Radius Fixed - 4 x D Occasional flexing - 10 x D
Outer Diameter 12.7mm
Voltage Rating 300/500 V
Current Rating 15 A
CPR Certification Eca
Standards Met CE
Maximum Operating Temperature +80°C
Earth Cable Yes
Insulation Material PVC
Oil Resistant Yes
Minimum Operating Temperature -40°C
Filler Material Non-Wicking Filler
Conductor Resistance 19.5 Ω/km
Core Strands 32/0.2 mm

More Information

LAPP Multicore Control Cable, 18 Cores, 50m Length - ÖLFLEX Series - 1119218 Choose this LAPP control cable to reliably transmit information across your equipment. It has 18 conductor cores, so packs multiple data connections into one cable, saving space in busy wiring systems. As the cable's bare copper cores are highly conductive, it delivers efficient and reliable performance. PVC insulation that resists heat, oil and chemicals means this is a suitable choice for demanding environments. Features & Benefits • Included earth cable minimises the risk of electric shocks
• Stranded conductor cores provide high flexibility for installation in confined areas
• Numbered conductors make it easy to identify connections
• Non-wicking filler material prevents corrosion from moisture for use in damp environments Applications • Refrigeration systems
• Control cabinets
• Manufacturing industry Is this control cable suitable for use in applications with EMI? This cable is unscreened, meaning external shielding would be needed if it was used where EMI was likely.
