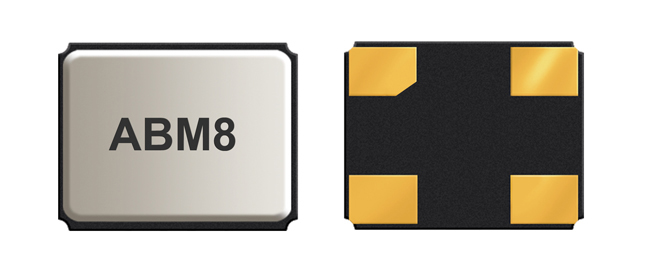

Abracon 25MHz Crystal Unit ±20ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm

abm8-25000mhz-b2-t Abracon 25MHz Crystal Unit ±20ppm SMD 4-Pin 3.2 x 2.5 x 0.8mm
ABM8-25.000MHZ-B2-T
brand logo

HT Part No. HT15996

Mfr. Part No. ABM8-25.000MHZ-B2-T

Manufacturer: Abracon

Technical Documents: Datasheet-6eadfe86(datasheets) ESD Control Selection Guide V1-e82fff3c(datasheets)

7000 - In Stock pcs
Price:
£ 0.20
Units Per Unit Price
1000 + £ 0.20
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Standard Frequency 25MHz
Mounting Type Surface Mount
Load Capacitance 18pF
Package Type SMD
Pin Count 4
Length 3.2mm
Width 2.5mm
Height 0.8mm
Dimensions 3.2 x 2.5 x 0.8mm
Frequency Tolerance ±20ppm
Frequency Stability ±50ppm
Series Resistance 50Ω
Maximum Operating Temperature 70°C
Minimum Operating Temperature -20°C

More Information

Low in height, suitable for thin equipment, 0.8mm max
Seam sealed package assures high reliability
Tight tolerance and stability available
Available for fundamental and 3rd over tone mode
High density applications
Modems, communication and test equipment
PMCIA, Wireless applications
