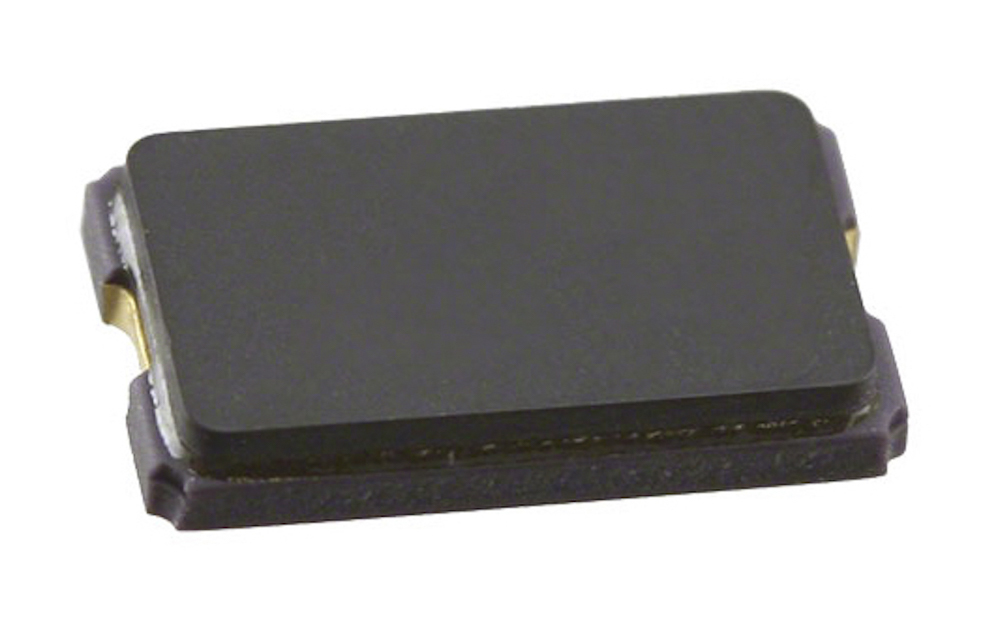

Abracon 8MHz Crystal ±20ppm SMD 5 x 3 x 1.3mm

abm3-8000mhz-d2y-t Abracon 8MHz Crystal ±20ppm SMD 5 x 3 x 1.3mm
ABM3-8.000MHZ-D2Y-T
brand logo

HT Part No. HT16025

Mfr. Part No. ABM3-8.000MHZ-D2Y-T

Manufacturer: Abracon

Technical Documents: Datasheet-a3821fde(datasheets) ESD Control Selection Guide V1-e82fff3c(datasheets)

1050 - In Stock pcs
Price:
£ 0.41
Units Per Unit Price
5 - 49 £ 0.41
50 - 99 £ 0.30
100 + £ 0.27
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Standard Frequency 8MHz
Mounting Type Surface Mount
Load Capacitance 18pF
Package Type SMD
Length 5mm
Width 3.2mm
Height 1.3mm
Dimensions 5 x 3 x 1.3mm
Frequency Tolerance ±20ppm
Frequency Stability ±30ppm
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C

More Information

ABM3 Abracon ABM3 series miniature ceramic SMD crystal has a ceramic package and heretically glass sealed to ensure high precision and reliability. AT-cut fundamental or 3rd OT mode. Applications Cellular Telephones Pagers PCMCIA and wireless applications Communication and test equipment
