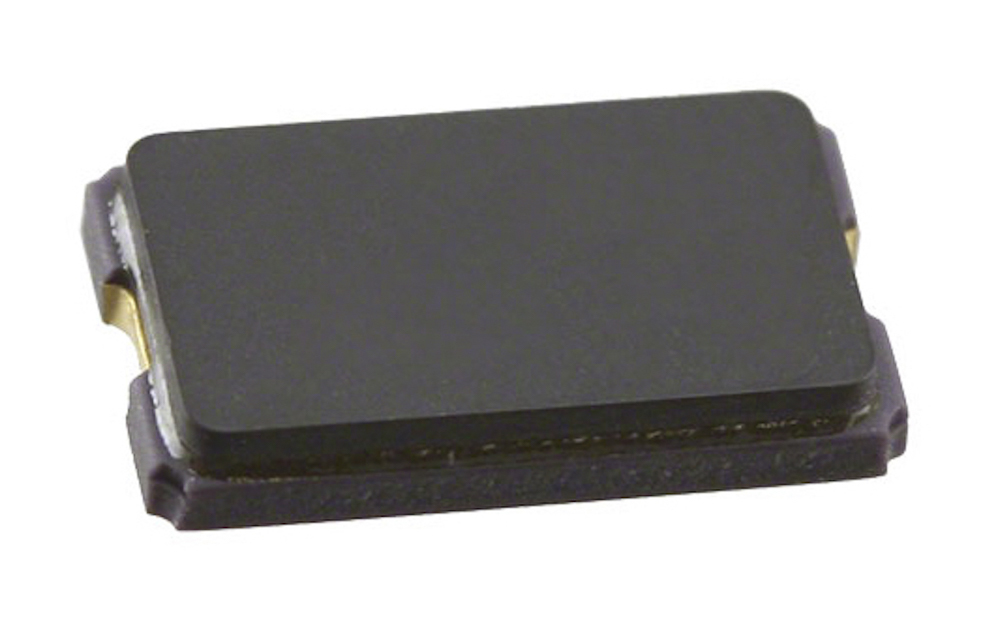

Abracon 25MHz Crystal ±20ppm SMD 5 x 3 x 1.3mm

abm3-25000mhz-b2-t Abracon 25MHz Crystal ±20ppm SMD 5 x 3 x 1.3mm
ABM3-25.000MHZ-B2-T
brand logo

HT Part No. HT16027

Mfr. Part No. ABM3-25.000MHZ-B2-T

Manufacturer: Abracon

Technical Documents: Datasheet-34f456b9(datasheets) ESD Control Selection Guide V1-e82fff3c(datasheets)

1620 - In Stock pcs
Price:
£ 0.57
Units Per Unit Price
5 - 49 £ 0.57
50 - 99 £ 0.48
100 + £ 0.46
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Standard Frequency 25MHz
Mounting Type Surface Mount
Load Capacitance 18pF
Package Type SMD
Length 5mm
Width 3.2mm
Height 1.3mm
Dimensions 5 x 3 x 1.3mm
Frequency Tolerance ±20ppm
Frequency Stability ±50ppm
Maximum Operating Temperature 70°C
Minimum Operating Temperature -20°C

More Information

ABM3 Abracon ABM3 series miniature ceramic SMD crystal has a ceramic package and heretically glass sealed to ensure high precision and reliability. AT-cut fundamental or 3rd OT mode. Applications Cellular Telephones Pagers PCMCIA and wireless applications Communication and test equipment
