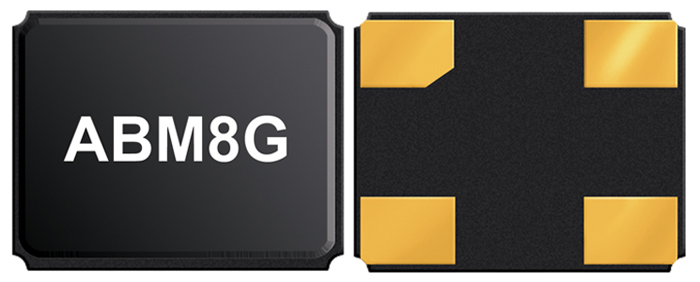

Abracon 12MHz Crystal Unit ±20ppm SMD 4-Pin 3.2 x 2.5 x 1mm

abm8g-12000mhz-18-d2y-t Abracon 12MHz Crystal Unit ±20ppm SMD 4-Pin 3.2 x 2.5 x 1mm
ABM8G-12.000MHZ-18-D2Y-T
brand logo

HT Part No. HT16038

Mfr. Part No. ABM8G-12.000MHZ-18-D2Y-T

Manufacturer: Abracon

Technical Documents: Datasheet-2b25ab47(datasheets) ESD Control Selection Guide V1-e82fff3c(datasheets)

45 - In Stock pcs
Price:
£ 0.30
Units Per Unit Price
5 - 49 £ 0.30
50 - 99 £ 0.23
100 + £ 0.20
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Standard Frequency 12MHz
Mounting Type Surface Mount
Load Capacitance 18pF
Package Type SMD
Pin Count 4
Length 3.2mm
Width 2.5mm
Height 1mm
Dimensions 3.2 x 2.5 x 1mm
Frequency Tolerance ±20ppm
Frequency Stability ±30ppm
Series Resistance 120Ω
Maximum Operating Temperature 85°C
Minimum Operating Temperature -40°C

More Information

Low in height, suitable for thin equipment
Glass sealed package assures high reliability and high temperature operation
Tight tolerance and stability available
IR reflow capable
Low cost version of ABM8 crystal
High density applications.
Modems, communication and test equipment
PMCIA, wireless applications
