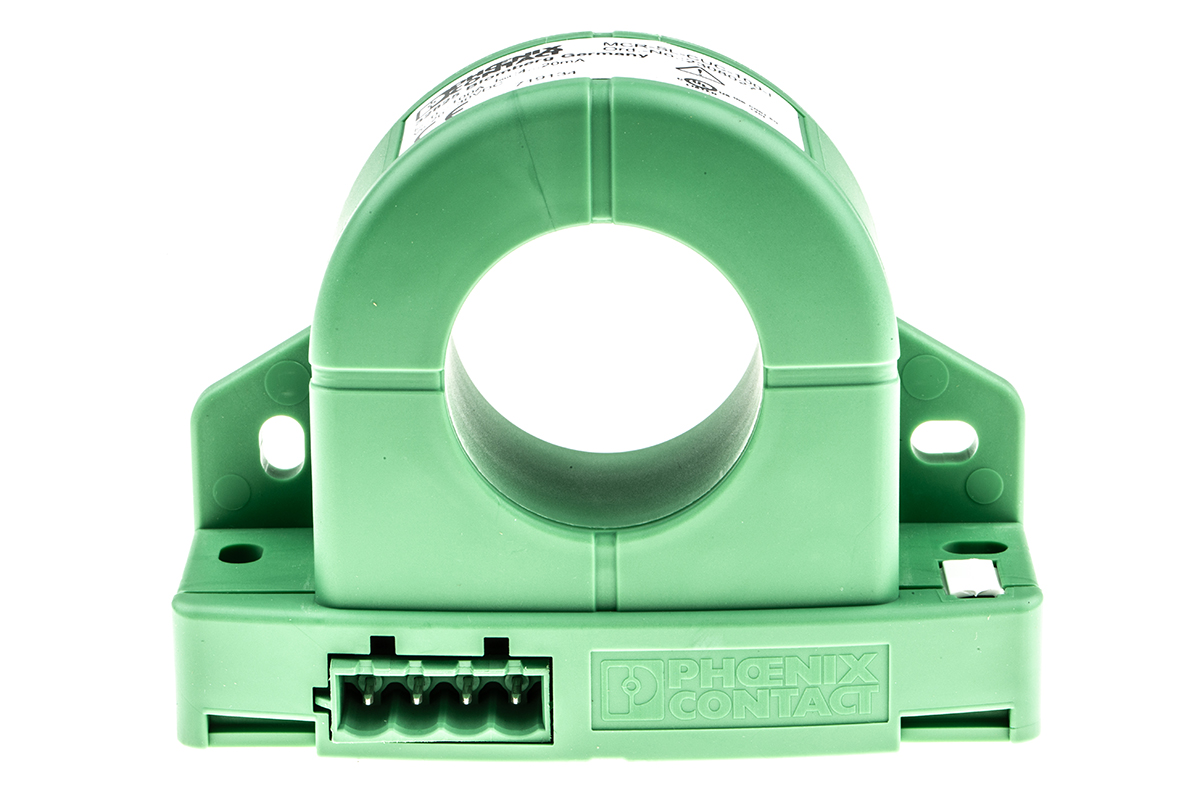

Phoenix Contact MCR-SL-CUC-100-I Series Current Transformer, 100A Input, 100:1, 4 → 20 mA Output, 32mm Bore, 20

2308027 Phoenix Contact MCR-SL-CUC-100-I Series Current Transformer, 100A Input, 100:1, 4 → 20 mA Output, 32mm Bore, 20
2308027
2308027
HT17068
HT17068
Current Transformers
Current Transformers
2308027 Phoenix Contact MCR-SL-CUC-100-I Series Current Transformer, 100A Input, 100:1, 4 → 20 mA Output, 32mm Bore, 20Phoenix Contact
2308027 Phoenix Contact MCR-SL-CUC-100-I Series Current Transformer, 100A Input, 100:1, 4 → 20 mA Output, 32mm Bore, 20Phoenix Contact
2308027 Phoenix Contact MCR-SL-CUC-100-I Series Current Transformer, 100A Input, 100:1, 4 → 20 mA Output, 32mm Bore, 20
2308027
2308027
brand logo

HT Part No. HT17068

Mfr. Part No. 2308027

Manufacturer: Phoenix Contact

Technical Documents: Datasheet 2308027-282bded0(datasheets) Instruction Sheet - 2308027-f4652c9b(datasheets) Line Drawing - 2308027-1242380a(datasheets)

8 - In Stock pcs
Price:
£ 192.09
Units Per Unit Price
1 - 4 £ 192.09
5 - 9 £ 186.24
10 + £ 178.29
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Current Ratio 100:1
Series MCR-SL-CUC-100-I
Bore Size 32mm
Supply Voltage 20 → 30 V dc
Input Current 100A
Output Current 4 → 20 mA
Overall Height 70mm
Overall Width 14.3mm
Overall Depth 30.2mm
Minimum Temperature -40°C
Maximum Temperature +65°C
Mounting Type DIN Rail
Dimensions 85 x 90 x 33.8 mm

More Information

Universal Current Transformer MCR-SL-CUC series universal current transducer for measuring dc, ac, and distorted currents. Universal current measurement, no shunt required
Compact dimensions also enable distributed use
Variable mounting on DIN rail and mounting plate
Simple connection method due to COMBICON plug-in connection terminal blocks
