HT Part No. HT17260

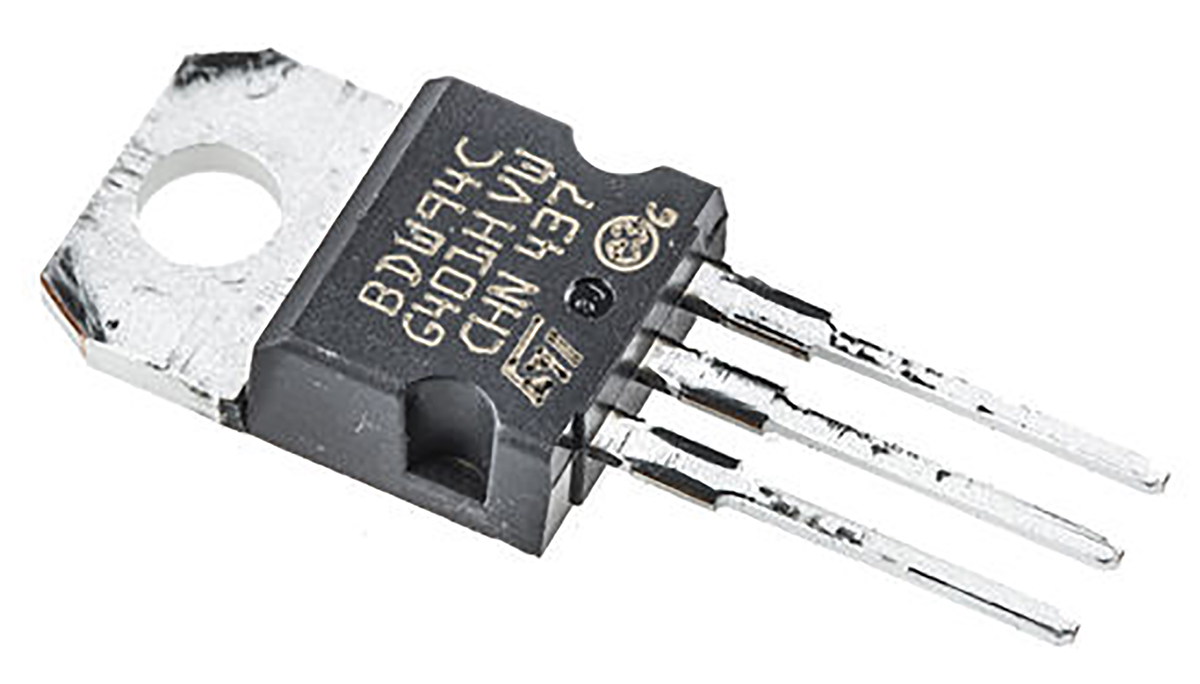

Mfr. Part No. BDW94C
Manufacturer: STMicroelectronics
Technical Documents: Datasheet-b9c711f2(datasheets) ESD Control Selection Guide V1-38e92ccd(datasheets)
| Product Attributes | |
|---|---|
| Transistor Type | PNP |
| Maximum Continuous Collector Current | 12 A |
| Maximum Collector Emitter Voltage | 100 V |

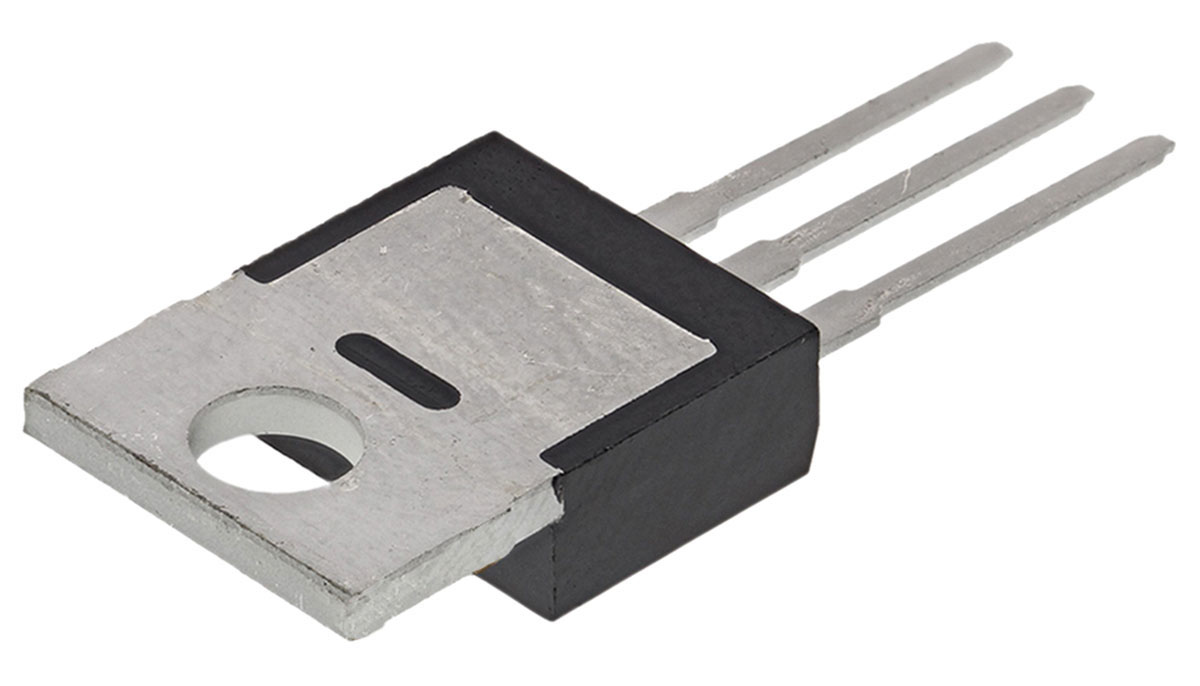

| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 100 |
| Maximum Base Emitter Saturation Voltage | 4 V |
| Maximum Collector Base Voltage | 100 V |
| Maximum Collector Emitter Saturation Voltage | 3 V |
| Maximum Collector Cut-off Current | 0.1mA |
| Height | 9.15mm |
| Width | 4.6mm |
| Length | 10.4mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 10.4 x 4.6 x 9.15mm |
