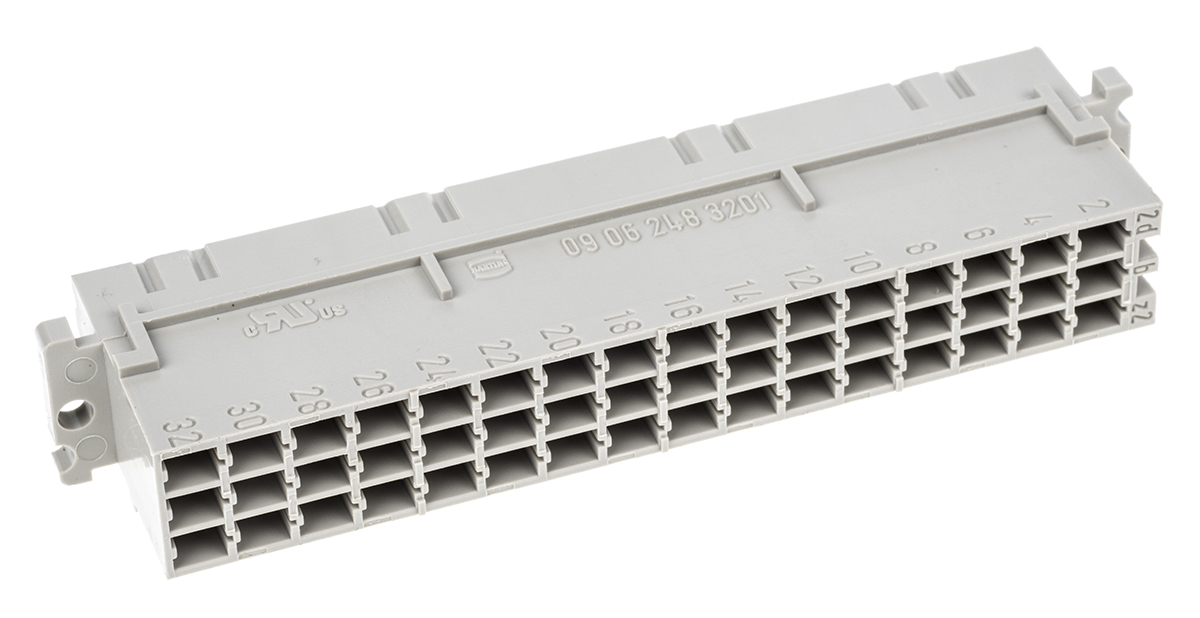

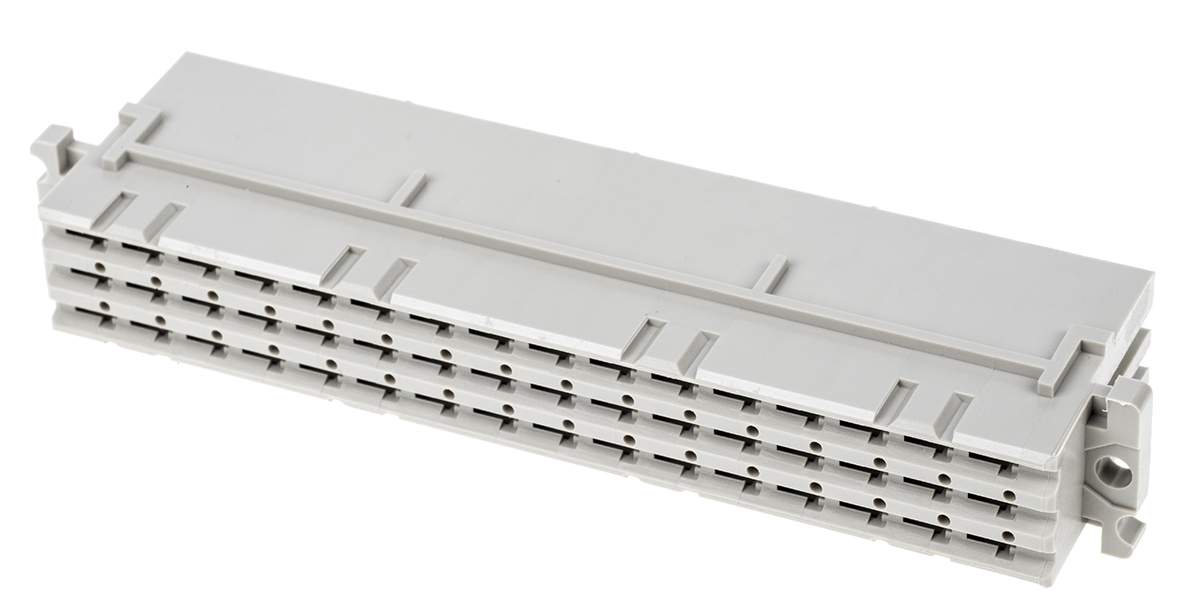

HARTING 09 06 48 Way 3.81 mm, 5.08 mm Pitch, Type F, 3 Row, Straight DIN 41612 Connector, Socket

09062483201 HARTING 09 06 48 Way 3.81 mm, 5.08 mm Pitch, Type F, 3 Row, Straight DIN 41612 Connector, Socket
09062483201
brand logo

HT Part No. HT20795

Mfr. Part No. 09062483201

Manufacturer: HARTING

Technical Documents: Connector DIN-Power crimp 48-way f-8e0ee0f8(datasheets) Datasheet_09062483201-85c7eb14(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 1.23
Units Per Unit Price
1 - 19 £ 1.23
20 - 74 £ 1.02
75 + £ 0.91
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Number of Contacts 48
Gender Female
Number of Rows 3
Body Orientation Straight
Termination Method Crimp
Type F
Pitch 3.81 mm, 5.08 mm
Contact Plating Gold over Nickel
Current Rating 6A
Contact Material Copper Alloy
Maximum Contact Resistance 20mΩ
Series 09 06
Housing Material Thermoplastic
Maximum Operating Temperature +125°C
Voltage Rating 125 V ac
Minimum Operating Temperature -55°C
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=22360&DisplayLogo=False

More Information

Harting DIN 41612 Type F Backplane Power Connectors A durable range of DIN 41612 Type F backplane power edge connectors suitable for many applications including railway transportation and power supplies, allowing reliable board to board PCB and cable to board connections. Robust and hardwearing and available in a variety of termination methods.
Stock numbers 757-7939, 757-7910, 757-7914, 757-7973, 757-7923 and 757-7982 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2 5.08mm contact pitch
Operating temp -55 to +125 °C
6A max per contact
Contact resistance up to 15mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
