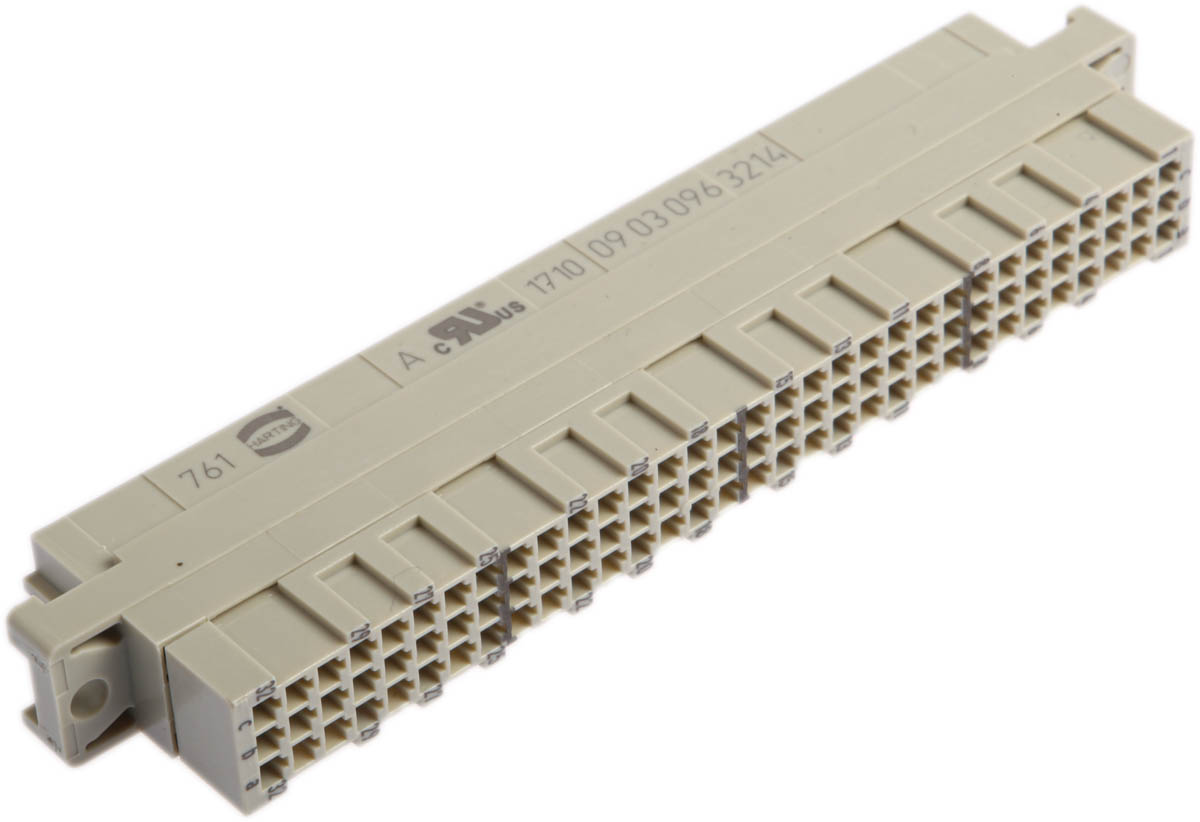

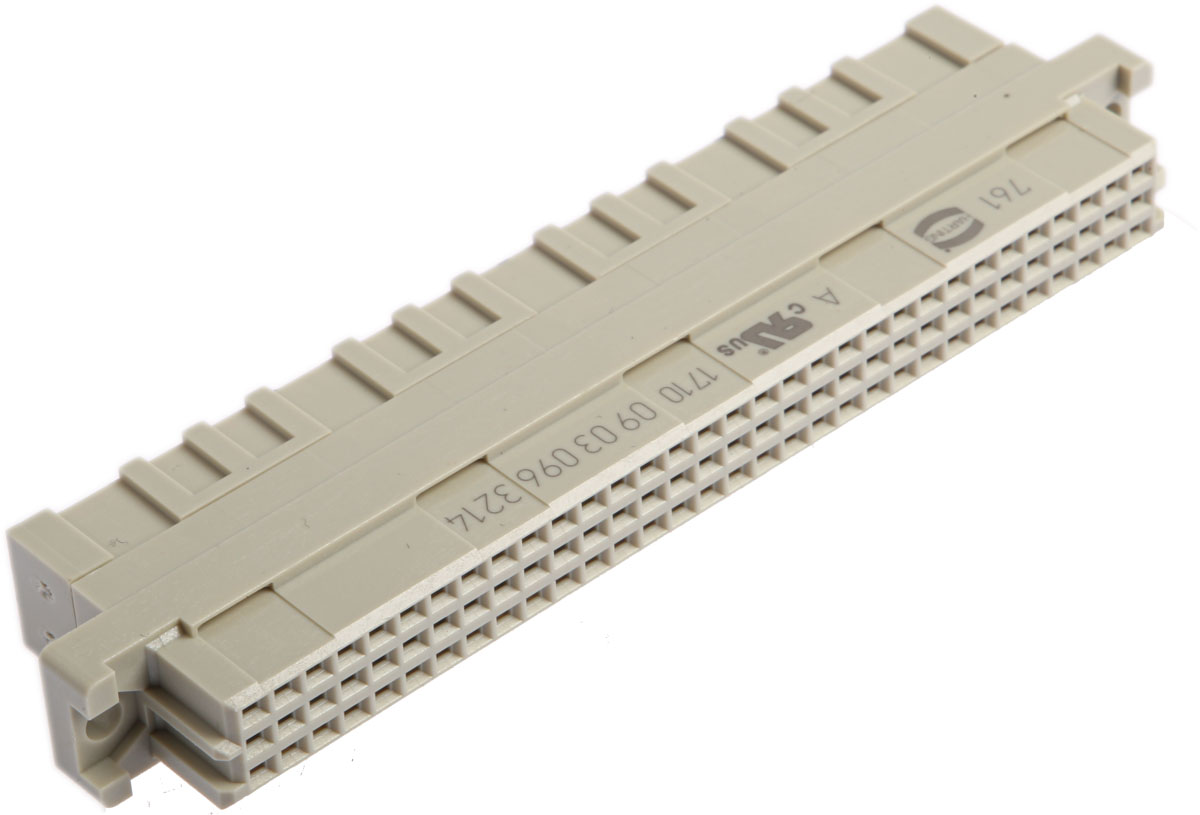

HARTING 96 Way 2.54mm Pitch, 3 Row, Straight DIN 41612 Connector, Socket

09030963214 HARTING 96 Way 2.54mm Pitch, 3 Row, Straight DIN 41612 Connector, Socket
09030963214
09030963214
HT20954
brand logo

HT Part No. HT20954

Mfr. Part No. 09030963214

Manufacturer: HARTING

Technical Documents: Connector DIN-Signal crimp 96-way f-256d72e9(datasheets) Datasheet-e4e0c747(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 6.08
Units Per Unit Price
1 - 19 £ 6.08
20 - 74 £ 5.03
75 + £ 4.47
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Number of Contacts 96
Gender Female
Number of Rows 3
Body Orientation Straight
Termination Method Crimp
Pitch 2.54mm
Mounting Type Panel Mount
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=54329&DisplayLogo=False

More Information

Harting DIN 41612 Type C Backplane Signal Connectors Harting DIN 41612 Type C backplane signal connectors are designed for PCB connection. Hard wearing and durable with a good mating cycle life these DIN 41612 type C PCB backplane signal connectors offer a economical solution to many electronic signal connector design applications. Mating first at positions a1 and a31.
Stock numbers 757-7951, 757-7945, 757-7970, 757-7936, 757-7954, 757-7926, 757-7998, 757-7967 and 757-7958 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2 • Operating temp -55 to +125 °C
• Test voltage 1kV
• Contact resistance up to 20mΩ
• Thermoplastic resin - glass fibre filled
• Copper alloy contacts
• Mating first at positions a1 and a31

Available with 4.5mm connectors (RS 406-284) and 13mm connectors (RS 740-6723)
