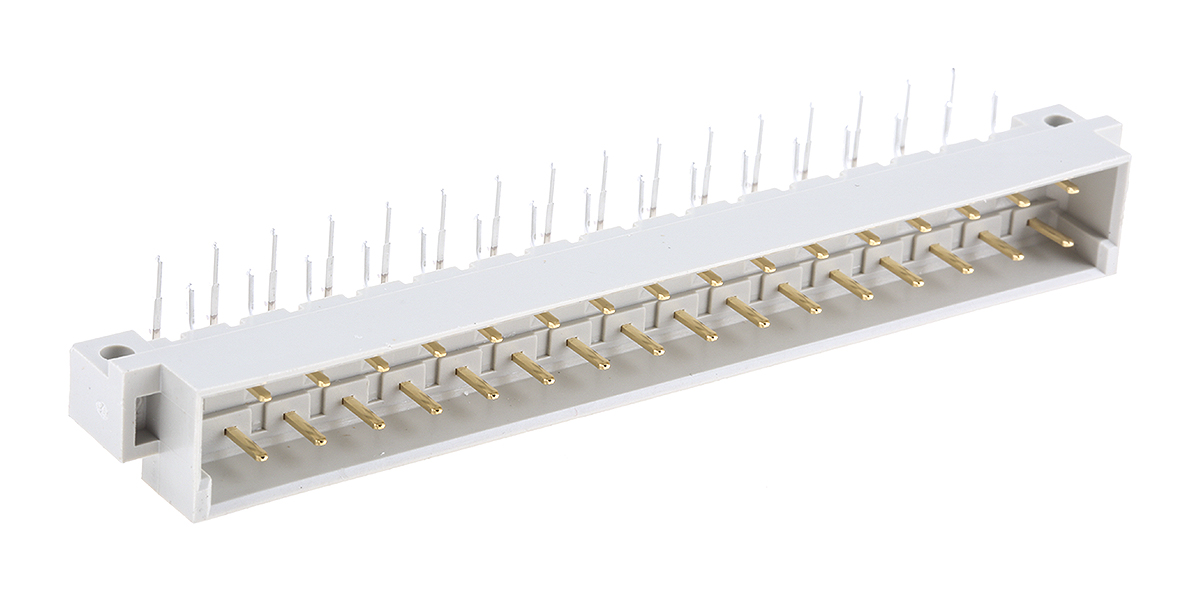

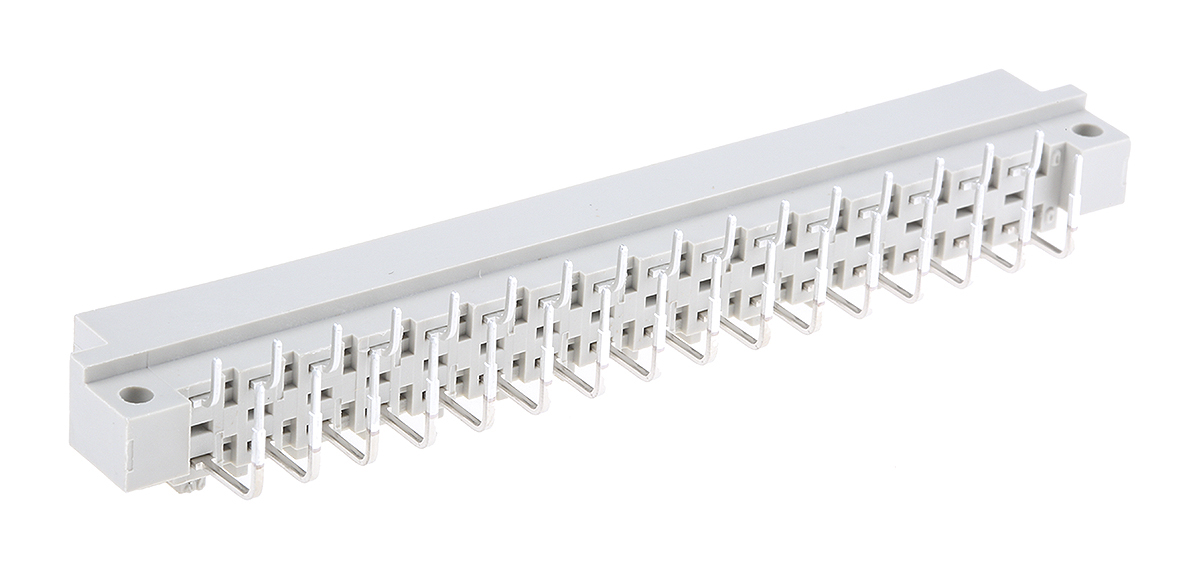

HARTING 32 Way 5.08mm Pitch, Type D Class C2, 2 Row, Right Angle DIN 41612 Connector, Plug

09041326921 HARTING 32 Way 5.08mm Pitch, Type D Class C2, 2 Row, Right Angle DIN 41612 Connector, Plug
09041326921
09041326921
HT24332
brand logo

HT Part No. HT24332

Mfr. Part No. 09041326921

Manufacturer: HARTING

Technical Documents: Datasheet-8b54a504(datasheets) Dimensional Drawing-3ada3a94(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Number of Contacts 32
Gender Male
Number of Rows 2
Body Orientation Right Angle
Termination Method Solder
Row Loading a/c
Type D
Pitch 5.08mm
Mounting Type Through Hole
Contact Plating Gold over Nickel
Class Rating C2
Current Rating 6A
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=473133&DisplayLogo=False

More Information

Harting DIN 41612 Type D Backplane Power Connectors Harting DIN 41612 type D backapane power connectors are designed for various application areas that demand high power, such as power supply and railway transportation.Harting power connectors complying with DIN 41612 are robust and durable with a good mating life cycle for board to board connections.
For female crimp contacts for female connector housing (stock number 740-6922) see stock number 741-2924 typically Operating temp -55 to +125 °C
6A max per contact
Contact resistance up to 15mΩ
Thermoplastic resin - glass fibre filled
Copper alloy contacts
