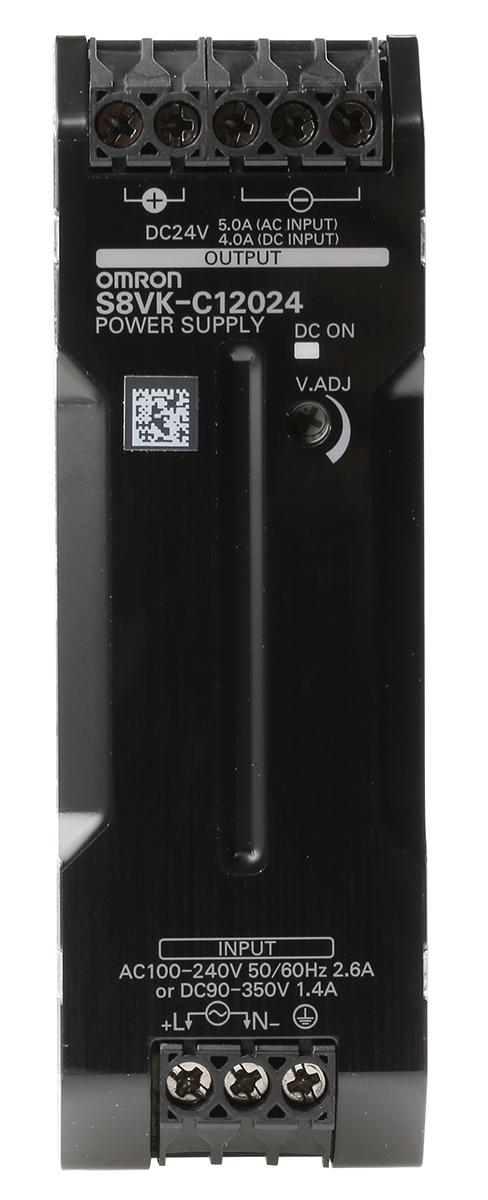

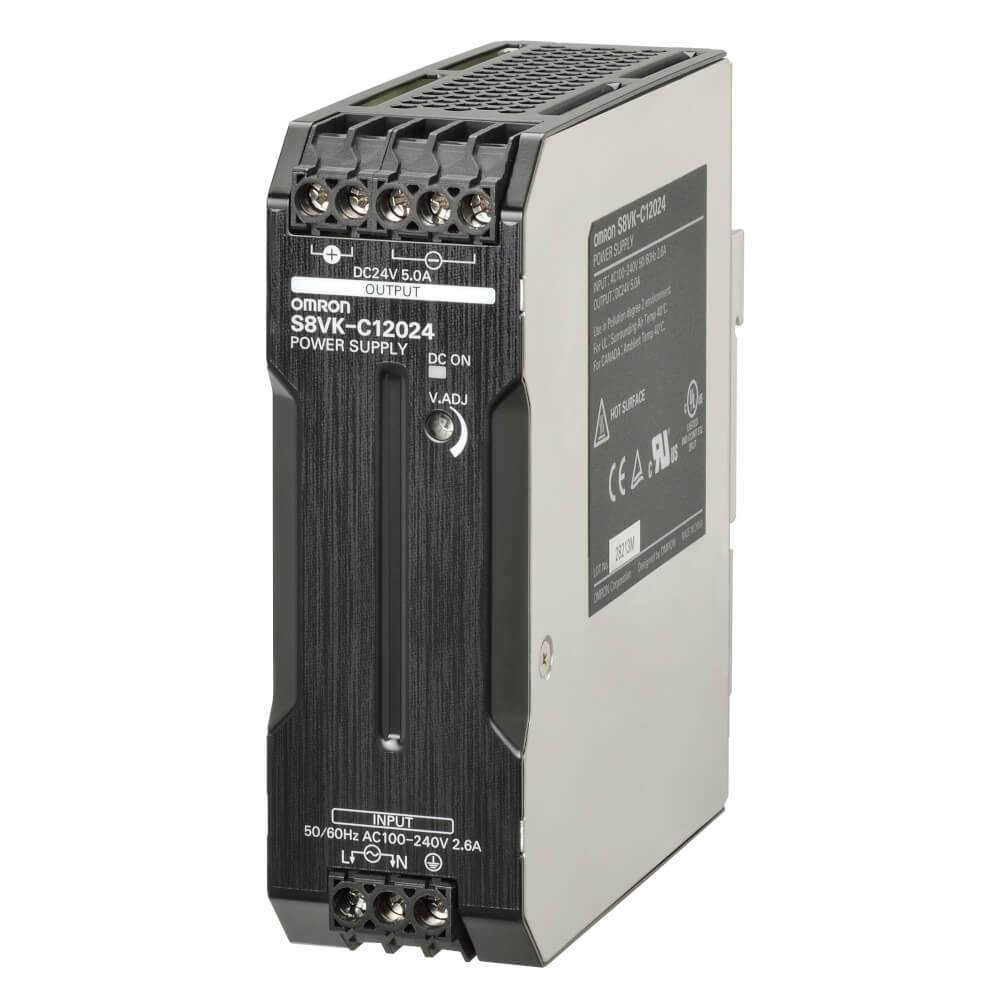

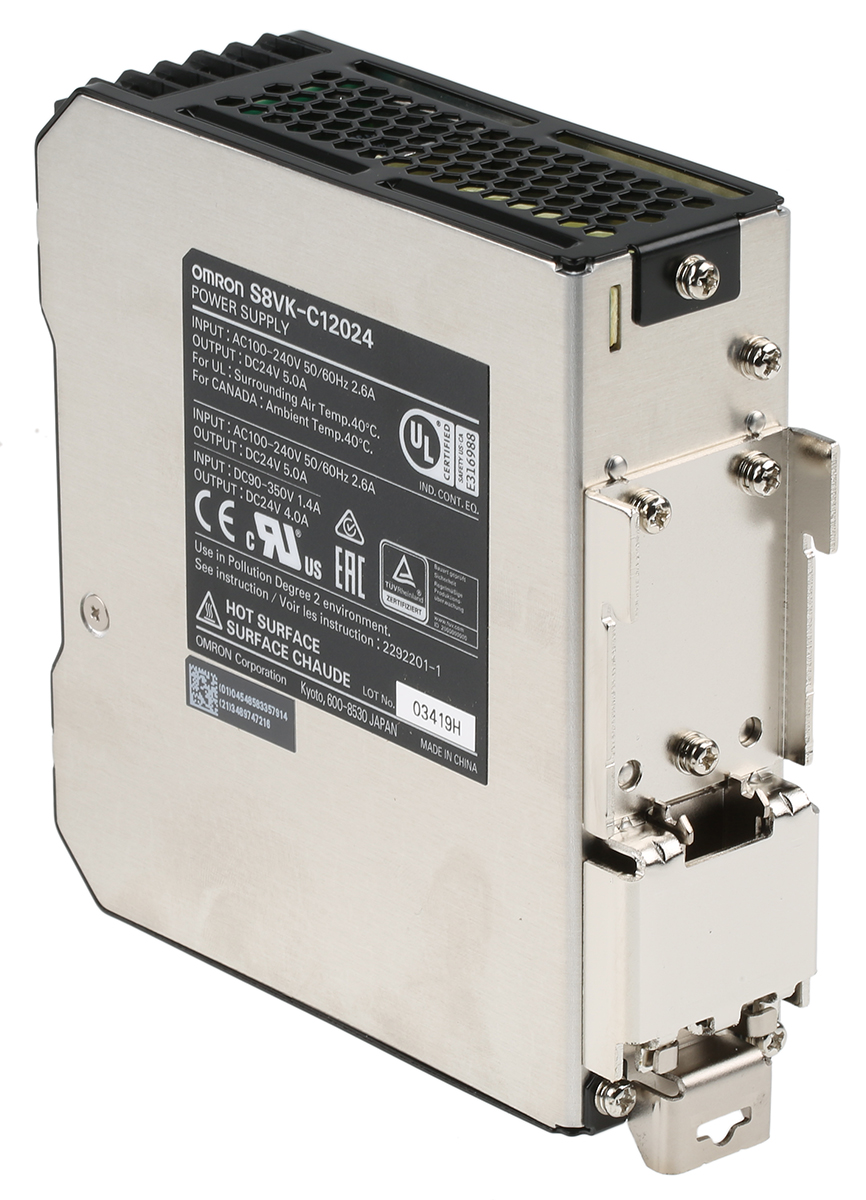

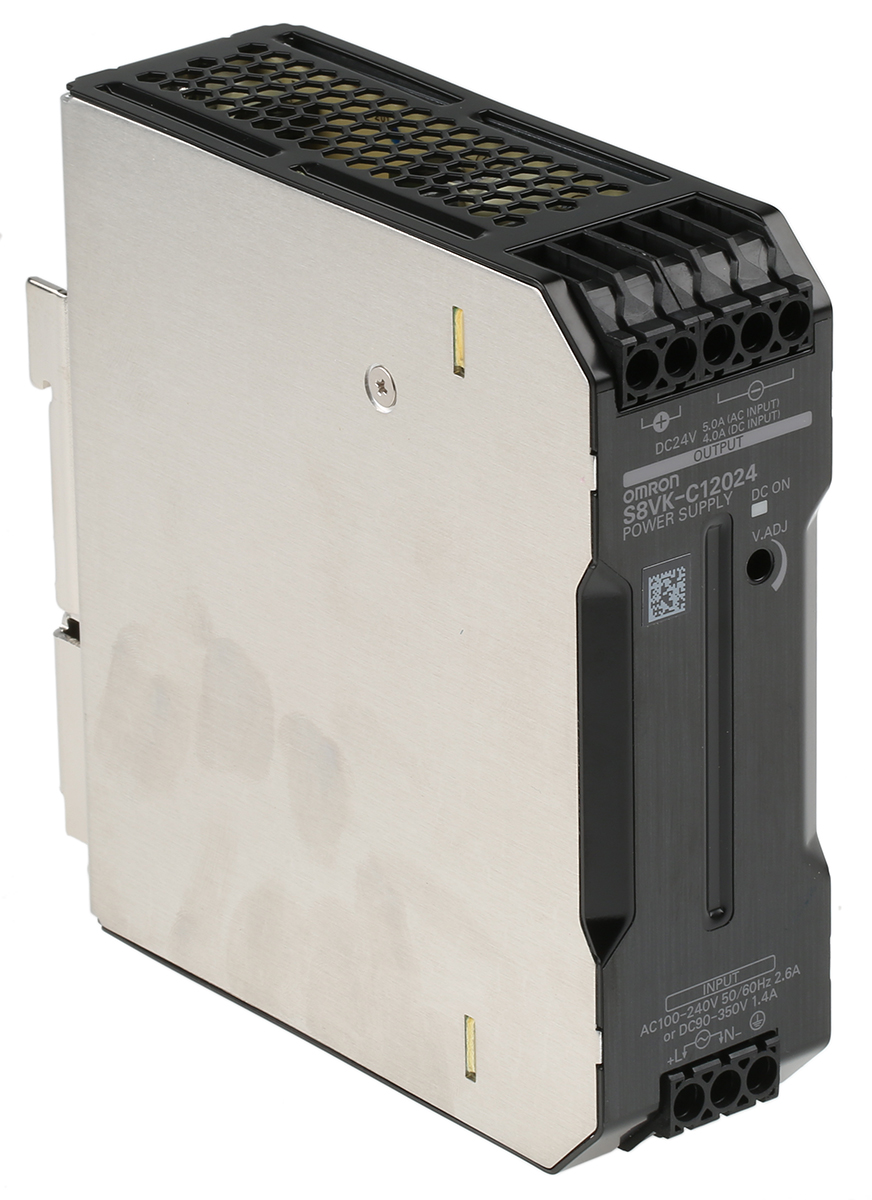

Omron S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc

s8vk-c12024 Omron S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dc
S8VK-C12024
S8VK-C12024
HT17194
HT17194
DIN Rail Power Supplies
DIN Rail Power Supplies
s8vk-c12024 Omron S8VK-C Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 90 → 350V dc ac, dc Input, 24V dc dcOmron
brand logo

HT Part No. HT17194

Mfr. Part No. S8VK-C12024

Manufacturer: Omron

Technical Documents: Datasheet-e3a111a9(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 90.66
Units Per Unit Price
1 - 9 £ 90.66
10 - 14 £ 85.24
15 + £ 81.61
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 5A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 100 → 240 V ac / 90 → 350V dc
Power Rating 120W
Electrical Phase 1
Number of Outputs 1
Height 125mm
Width 40mm
Depth 122mm
Series S8VK-C
Output Voltage Adjustment Range -10 → +15%
Efficiency 88%
MTBF 490000h
Ripple And Noise 120mV
Minimum Temperature -25°C
Maximum Temperature +60°C
Standards Met CE
Special Features Overvoltage and Short Circuit Protection
Mounting Type DIN Rail Mount

More Information

60W to 480W S8VK-C Series The S8VK-C series of power supplies are a space saving single phase power supply with universal input and safety worldwide standards. An excellent power supply that provides quality, reliability and cost effective. The pwer supply is a compact design which is easy to fit and withstands harsh environments plus suns for long periods within stable conditions. This vesatile series simply clicks onto a DIN rail saving you valuable time and effort.
