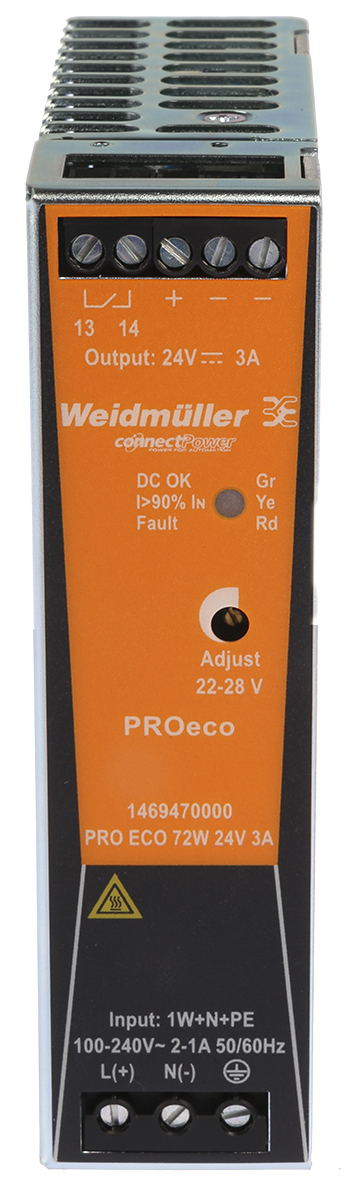

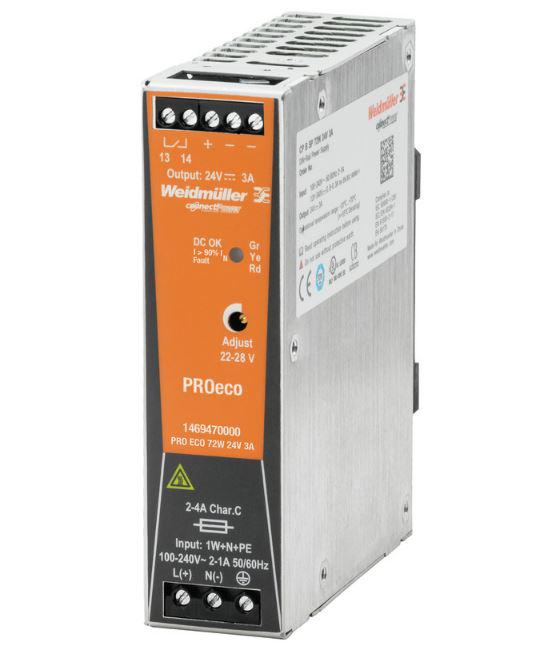

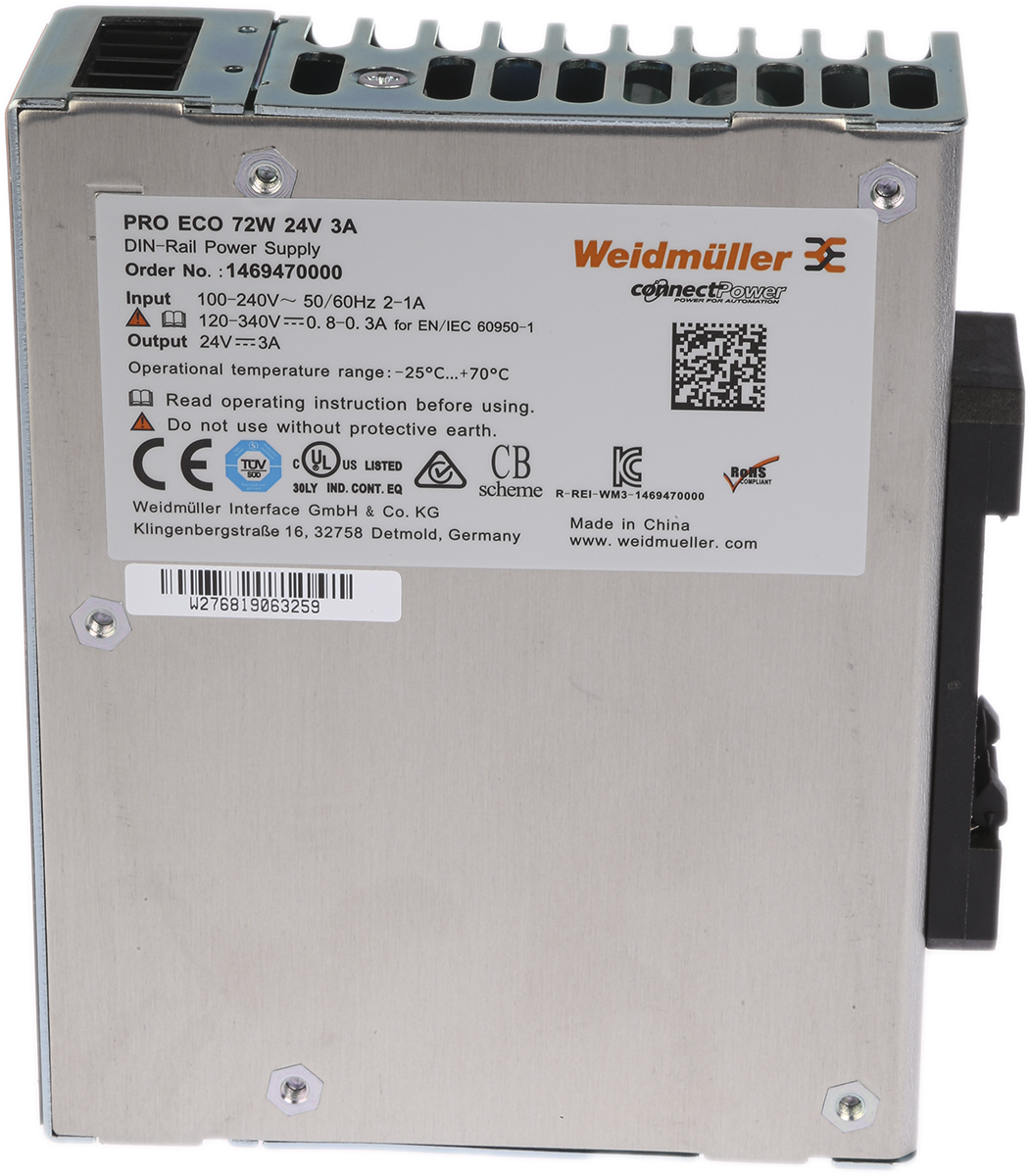

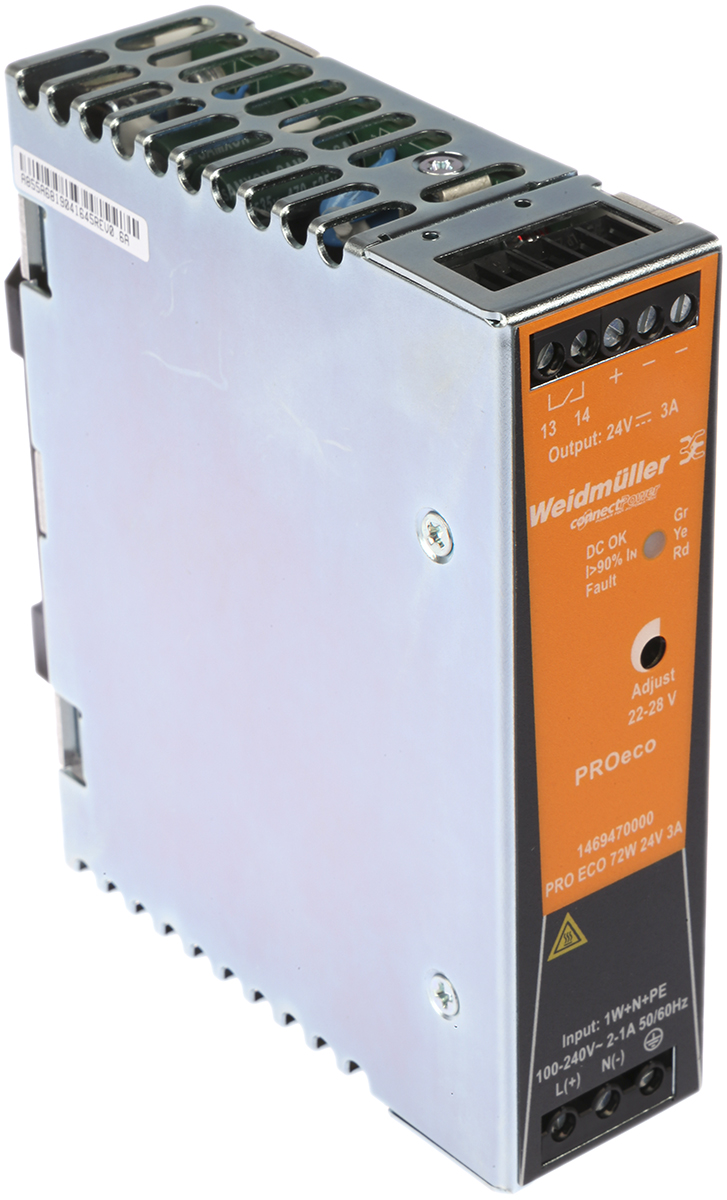

Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dc

1469470000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dc
1469470000
1469470000
HT19148
HT19148
DIN Rail Power Supplies
DIN Rail Power Supplies
1469470000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dcWeidmüller
1469470000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dcWeidmüller
1469470000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dc
brand logo

HT Part No. HT19148

Mfr. Part No. 1469470000

Manufacturer: Weidmüller

Technical Documents: PRO ECO-a087c19e(datasheets) Instruction Sheet - 1469470000-17b9f424(datasheets) Catalogue - Power Supplies-84c4e3dc(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 57.21
Units Per Unit Price
1 + £ 57.21
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 3A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 85 → 264 V ac / 80 → 370V dc
Power Rating 72W
Electrical Phase 1
Number of Outputs 1
Height 125mm
Width 34mm
Depth 100mm
Series PRO ECO
Special Features Compact Size, Easy to Maintain, Flexible, High Efficiency
MTBF >500000h
Ripple And Noise <50mV
Efficiency 87%
Minimum Temperature -25°C
Mounting Type DIN Rail Mount
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
Maximum Temperature +70°C

More Information

Weidmuller DIN Rail Power Supply, 24V DC Output Voltage, 578g Weight - PRO ECO Series - 1469470000 Use this DIN rail power supply from Weidmuller to power your rail-mounted devices. By converting input signals into a steady 24V DC output, this device allows you to run low-voltage equipment. For versatility, it can receive inputs between 80 and 370V DC or 85 and 264V AC. Thanks to its built-in overload and reverse voltage protection, your devices are safeguarded against electrical damage in the event of a fault. Features & Benefits • Compact dimensions of 125 (H) x 34 (W) x 100mm (D) to maximise space on your DIN rail
• Wide operating temperature range between -25°C and +70°C for use in demanding environments
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Light weight of 578g to place minimal strain on your equipment Applications • Power distribution
• Process control
• Factory automation How much energy does this power supply consume? For energy efficiency, this power supply consumes 0.55A at 230V AC and 1.04A at 110V AC, or 0.22A at 370V DC and 0.68A at 120V DC.
