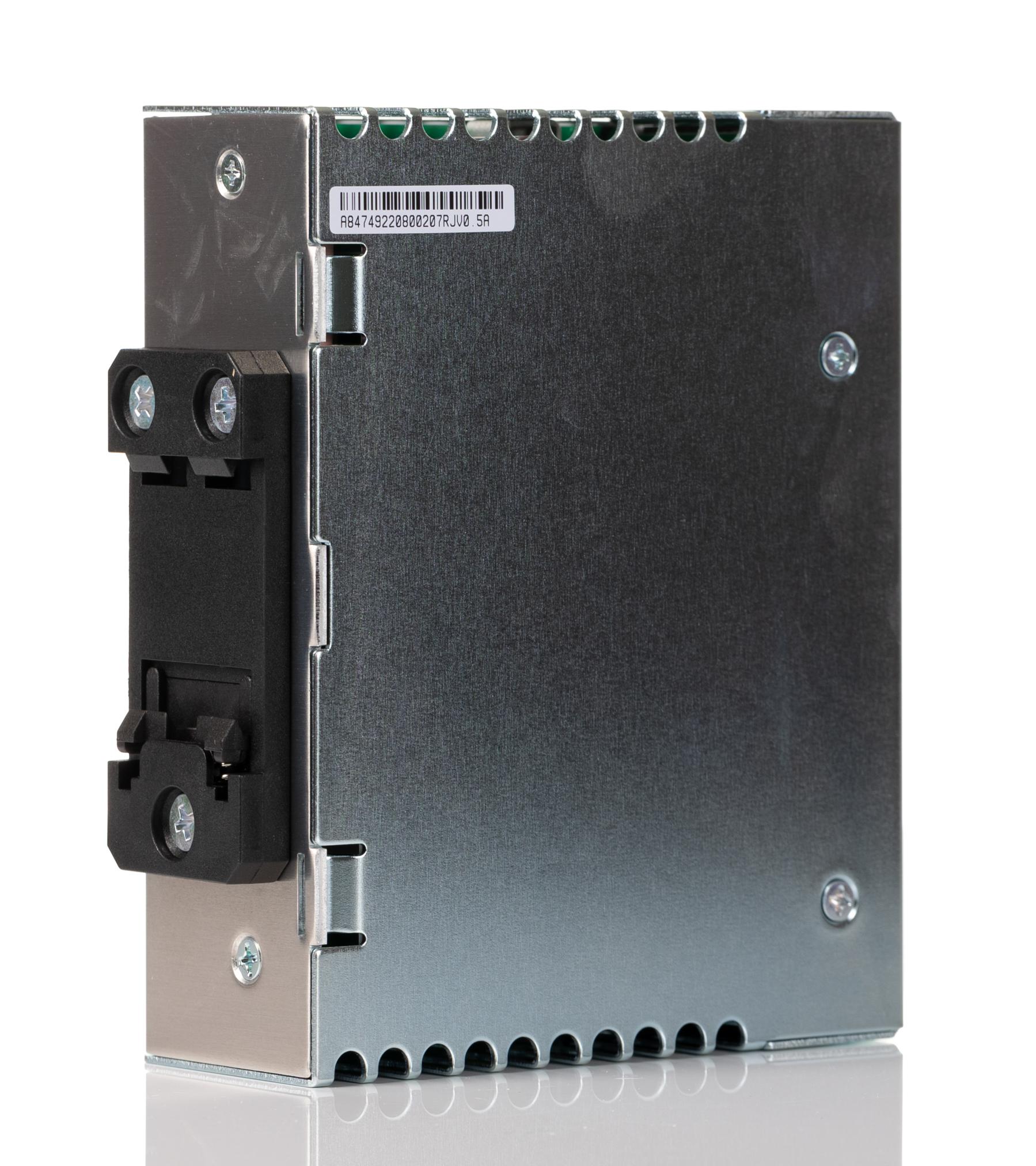

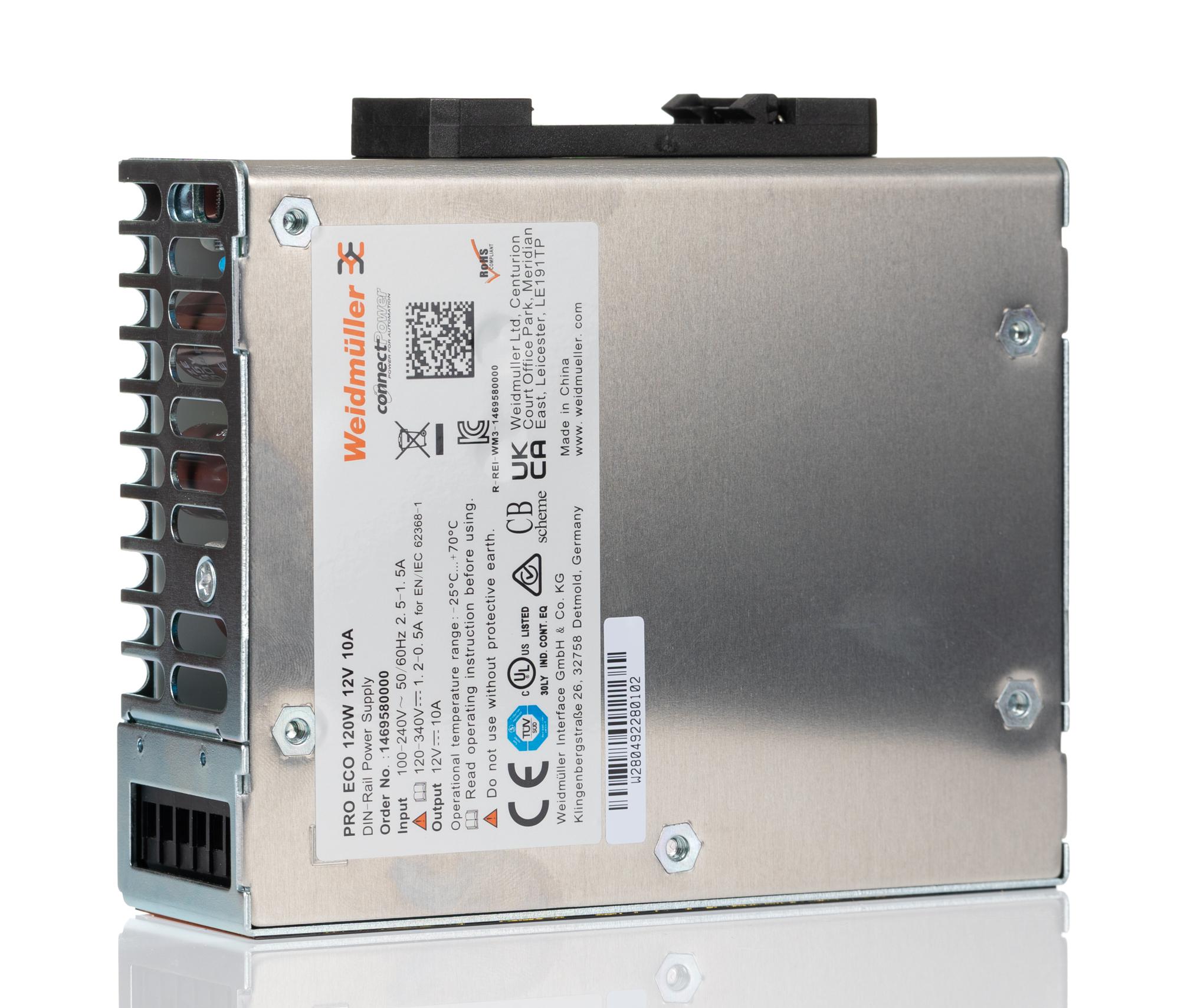

Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 12V dc

1469580000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 12V dc
1469580000
1469580000
HT19177
HT19177
DIN Rail Power Supplies
brand logo

HT Part No. HT19177

Mfr. Part No. 1469580000

Manufacturer: Weidmüller

Technical Documents: PRO ECO-d0aebbc5(datasheets) Instruction Sheet - 1469580000-cecc639c(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 137.12
Units Per Unit Price
1 + £ 137.12
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 12V dc
Output Current 10A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 85 → 264 V ac / 80 → 370V dc
Power Rating 120W
Electrical Phase 1
Number of Outputs 1
Height 125mm
Width 40mm
Depth 100mm
Series PRO ECO
Special Features Compact Size, Easy to Maintain, Flexible, High Efficiency
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
Ripple And Noise <50mV
Minimum Temperature -25°C
Output Voltage Adjustment Range -1 → +1%
Efficiency 87%
MTBF >500000h
Mounting Type DIN Rail Mount
Maximum Temperature +70°C

More Information

Weidmuller DIN Rail Power Supply, 87% Efficiency, 120W Power Rating - PRO ECO Series - 1469580000 In search of an efficient power conversion solution? This DIN rail power supply from Weidmuller fits the bill. It converts input voltages ranging between 85 and 264V AC or between 80 and 370V DC into a reliable 12V DC output. This makes it suitable for use in low-voltage applications. Thanks to an efficiency of up to 87%, very little energy is wasted as heat. It's a cinch to install as you can mount it directly on your DIN rail. Features & Benefits • MTBF of over 500,000 hours for long-lasting use
• Compact dimensions of 125 (H) x 40 (W) x 100mm (D) mean it fits neatly into tight spaces
• Light weight of just 698g puts minimal strain on your rail
• Performs reliably in harsh environments, as it has a wide operating temperature range between -25°C and +70°C
• Power rating of 120W for use in heavy-duty applications Applications • Automotive manufacturing
• Commercial power management
• Process control How can I check the status of this device? This DIN rail power supply comes with a tricolour LED indicator, so you can quickly determine its status.
