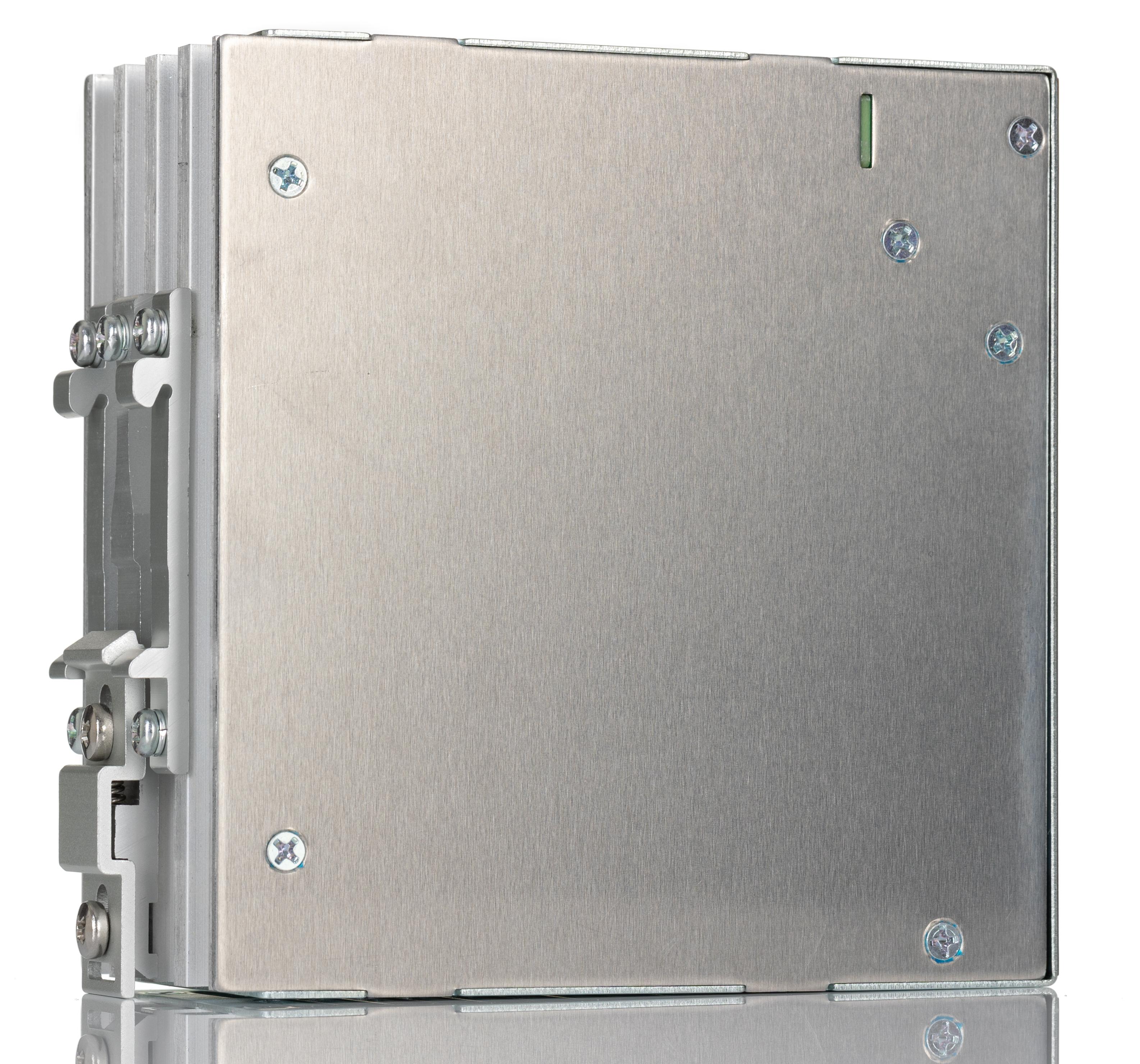

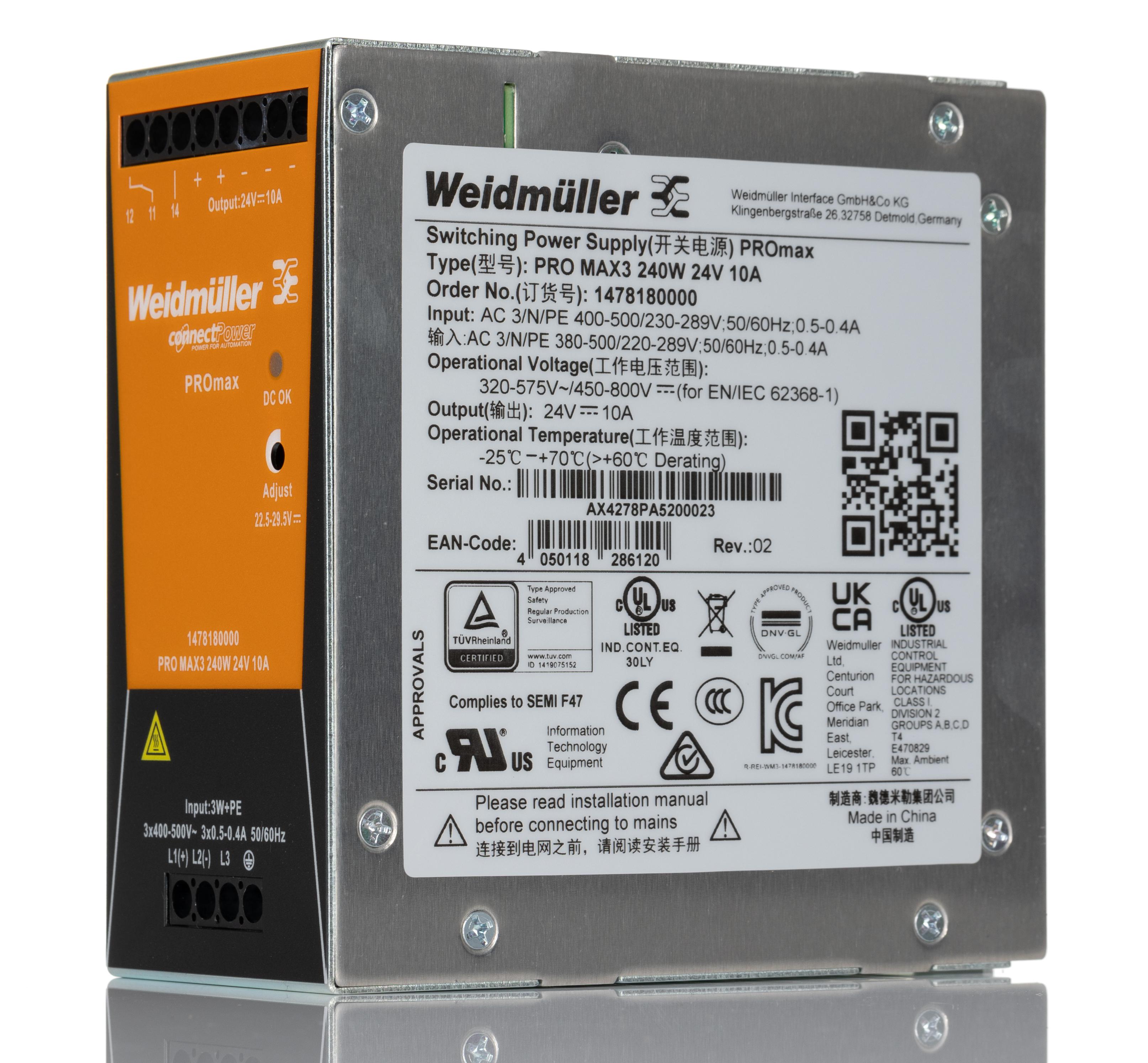

Weidmuller PRO MAX Switched Mode DIN Rail Power Supply, 320 → 575 V ac / 450 → 800V dc ac, dc Input, 24V

1478180000 Weidmuller PRO MAX Switched Mode DIN Rail Power Supply, 320 → 575 V ac / 450 → 800V dc ac, dc Input, 24V
1478180000
1478180000
HT19183
HT19183
DIN Rail Power Supplies
brand logo

HT Part No. HT19183

Mfr. Part No. 1478180000

Manufacturer: Weidmüller

Technical Documents: PRO MAX-fd98aeb9(datasheets) Instruction Sheet - 1478180000-8e1363e5(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 203.90
Units Per Unit Price
1 + £ 203.90
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 10A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 320 → 575 V ac / 450 → 800V dc
Power Rating 240W
Electrical Phase 3
Number of Outputs 1
Height 130mm
Width 60mm
Depth 125mm
Series PRO MAX
Ripple And Noise <50mV
Efficiency 91.5%
Minimum Temperature -25°C
Mounting Type DIN Rail Mount
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101
Special Features Durable, High Performance
Output Voltage Adjustment Range -1 → +1%
MTBF >500000h
Maximum Temperature +70°C

More Information

Weidmuller DIN Rail Power Supply, 3 Phases, 24V DC Output Voltage - PRO MAX Series - 1478180000 Switch things up in your electrical system with this DIN rail power supply from Weidmuller. It's suitable for use in low-power systems, as it provides a regulated 24V DC output voltage by converting input voltages between 320 and 575V AC or between 450 and 800V DC. This robust device wastes very little energy as heat, as it has an efficiency rating of 91.5%. It can handle continuous overloads up to 20% and short-term peak loads of 300%, so it stays strong in heavy-duty applications. Features & Benefits • Mounts onto a DIN rail for installation in a snap
• Power rating of 240W for use in demanding settings
• Light weight of 1.3kg to minimise strain on your DIN rail
• Safe for use in challenging environments, thanks to a wide operating temperature range of -25°C to +70°C Applications • Automated machinery
• Power lines and transformers
• Signal controls What wire sizes does this power supply accept? It takes wires ranging in size from 26 to 10AWG, making it a versatile piece of kit.
