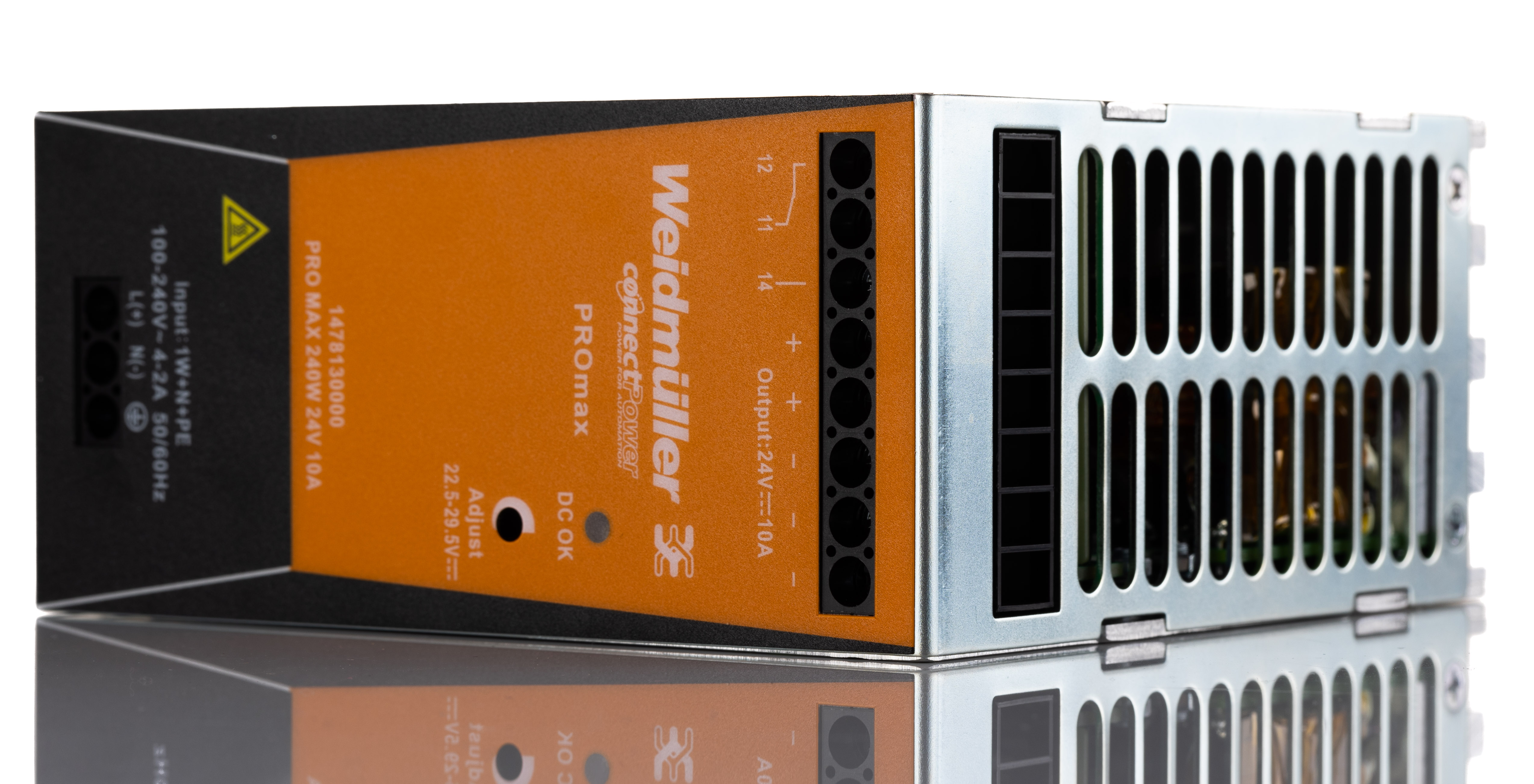

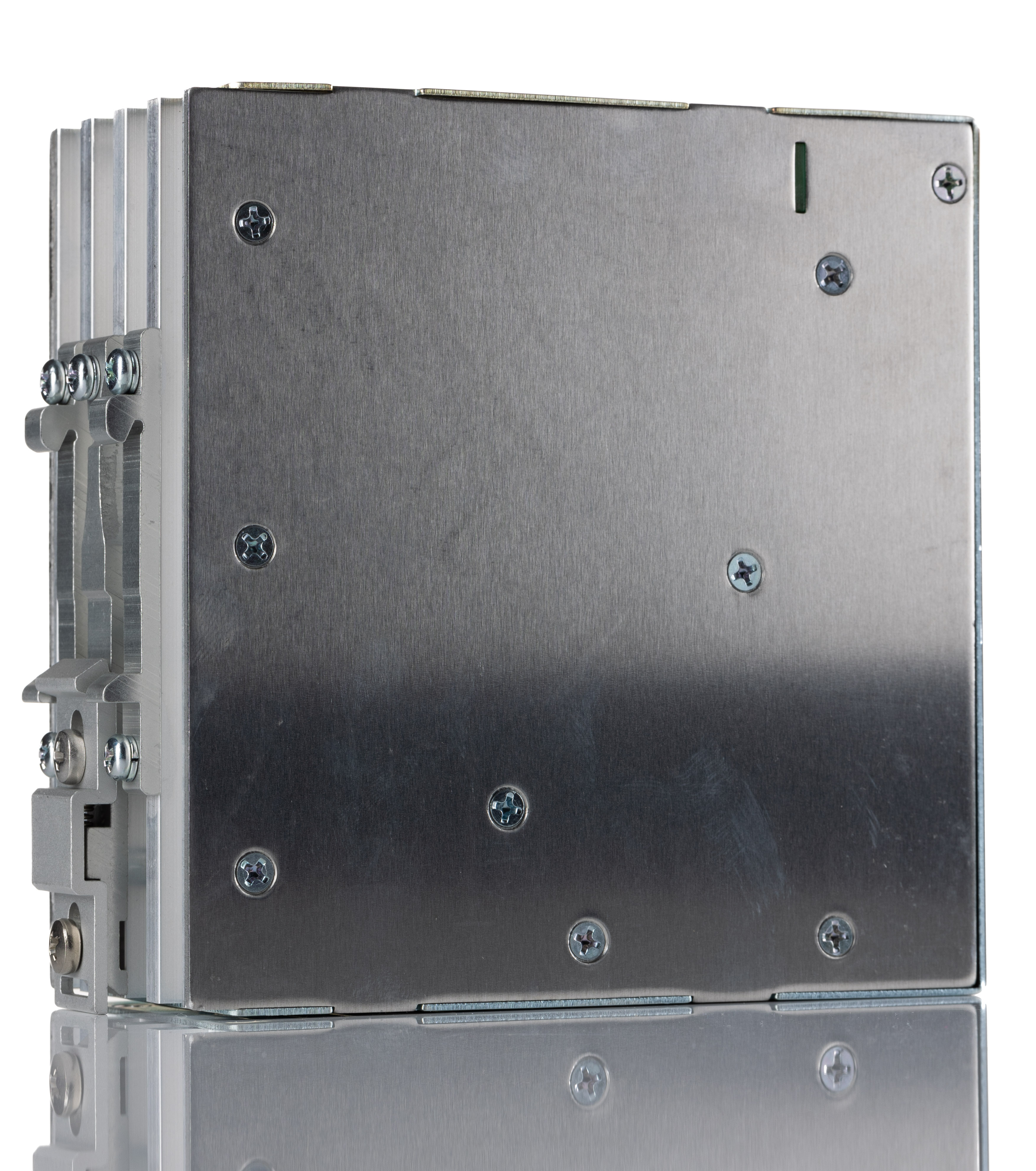

Weidmuller PRO MAX Switched Mode DIN Rail Power Supply, 85 → 277 V ac / 80 → 370V dc ac, dc Input, 24V dc

1478130000 Weidmuller PRO MAX Switched Mode DIN Rail Power Supply, 85 → 277 V ac / 80 → 370V dc ac, dc Input, 24V dc
1478130000
1478130000
HT19184
HT19184
DIN Rail Power Supplies
brand logo

HT Part No. HT19184

Mfr. Part No. 1478130000

Manufacturer: Weidmüller

Technical Documents: PRO MAX-bbc73d51(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 170.51
Units Per Unit Price
1 + £ 170.51
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 10A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 85 → 277 V ac / 80 → 370V dc
Power Rating 240W
Electrical Phase 1
Number of Outputs 1
Height 130mm
Width 60mm
Depth 125mm
Series PRO MAX
MTBF >500000h
Ripple And Noise <50mV
Minimum Temperature -25°C
Mounting Type DIN Rail Mount
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101
Maximum Temperature +70°C
Efficiency 91.5%
Special Features Durable, High Performance

More Information

Weidmuller DIN Rail Power Supply, 85 to 277V AC Input Voltage Range, 240W Output Power - PRO MAX Series - 1478130000 When durability and performance are top priorities, look no further than this DIN rail power supply from Weidmuller. It accepts inputs ranging from 85 to 277V AC or 80 to 370V DC and steps them down a stable 24V DC output. Thanks to the potentiometer, you can adjust the output voltage to between 22.5 and 29.5V DC, making it a piece of cake to tailor it according to the needs of your application. You can count on this unit to power through in harsh environments as it has a broad operating temperature range of -25°C to +70°C. Features & Benefits • Built-in fuse for protection against surge damage
• Screw terminals for a secure electrical connection
• Efficiency of 91.5% means it wastes little energy as heat Applications • Factory automation
• Power management
• Process control Is this unit safe to handle? Yes, this product's IP20 rating means it's touchproof and protected against objects larger than 12mm in size, so there won't be any shocks during installation or maintenance.
