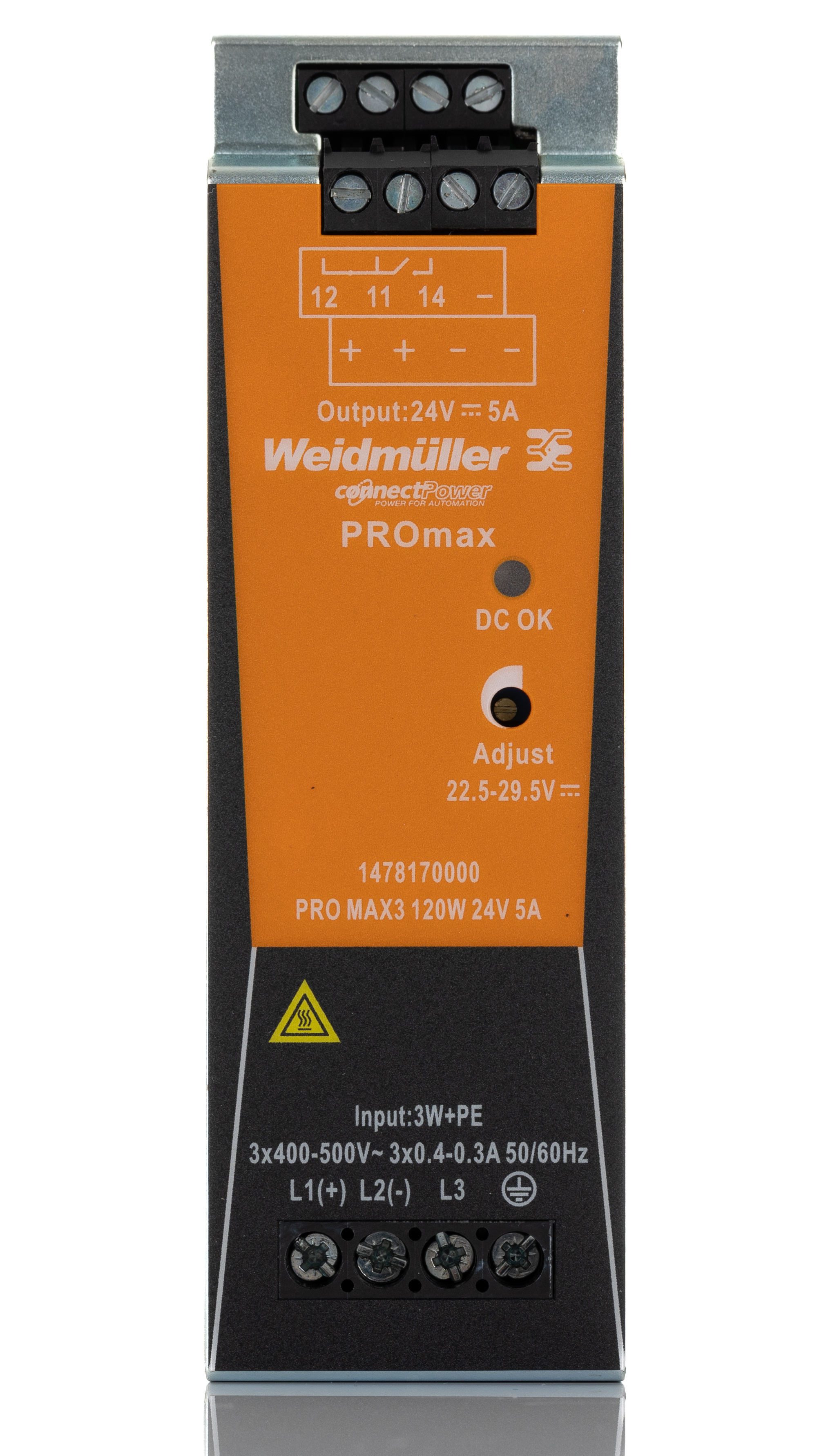

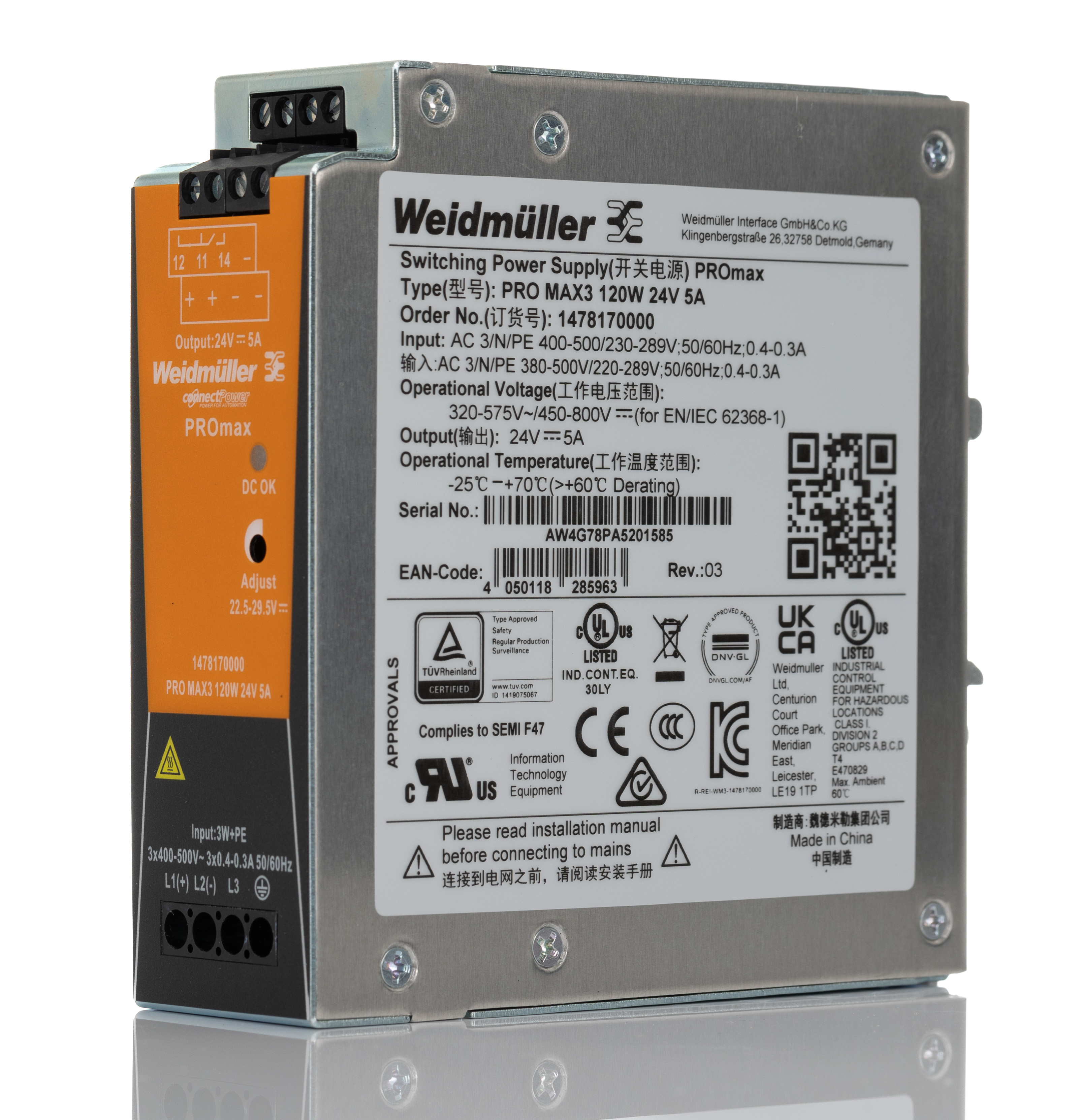

Weidmuller PRO MAX Switched Mode DIN Rail Power Supply, 320 → 575 V ac / 450 → 800V dc ac, dc Input, 24V

1478170000 Weidmuller PRO MAX Switched Mode DIN Rail Power Supply, 320 → 575 V ac / 450 → 800V dc ac, dc Input, 24V
1478170000
1478170000
HT19185
HT19185
DIN Rail Power Supplies
brand logo

HT Part No. HT19185

Mfr. Part No. 1478170000

Manufacturer: Weidmüller

Technical Documents: PRO MAX-ef44b96c(datasheets) Catalogue - Power Supplies-9e0f6cae(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 153.81
Units Per Unit Price
1 + £ 153.81
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 5A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 320 → 575 V ac / 450 → 800V dc
Power Rating 120W
Electrical Phase 3
Number of Outputs 1
Height 130mm
Width 40mm
Depth 125mm
Series PRO MAX
MTBF >500000h
Output Voltage Adjustment Range 29.5V
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101
Ripple And Noise <50mV
Special Features Durable, High Performance
Mounting Type DIN Rail Mount
Minimum Temperature -25°C
Efficiency 90%
Maximum Temperature +70°C

More Information

Weidmuller DIN Rail Power Supply, 3 Phases, 24V DC Output Voltage - PRO MAX Series - 1478170000 Get on the fast track to a versatile energy solution with this DIN rail power supply from Weidmuller. It's a switch-mode version that converts electricity efficiently using a switching regulator. The device has a wide input voltage between 320V and 575V AC for versatility. An output voltage of 24V DC means it does the trick in low-voltage applications. Thanks to its power rating of 120W, you can safely use this product with high-powered equipment. Features & Benefits • Built-in overcurrent protection to safeguard your equipment against damage
• High efficiency of 90% keeps energy usage down and minimises heat waste
• Designed for DIN rail mounting to make installation a breeze
• Compact dimensions of 130 (H) x 40 (W) x 125mm (D) for installation in areas where space is at a premium Applications • Industrial automation equipment
• Engineering workshops
• Production lines Can I use this power supply in harsh environments? Yes, it has a broad operating temperature range between -25°C and +70°C, so it can stand up to use in extreme conditions.
