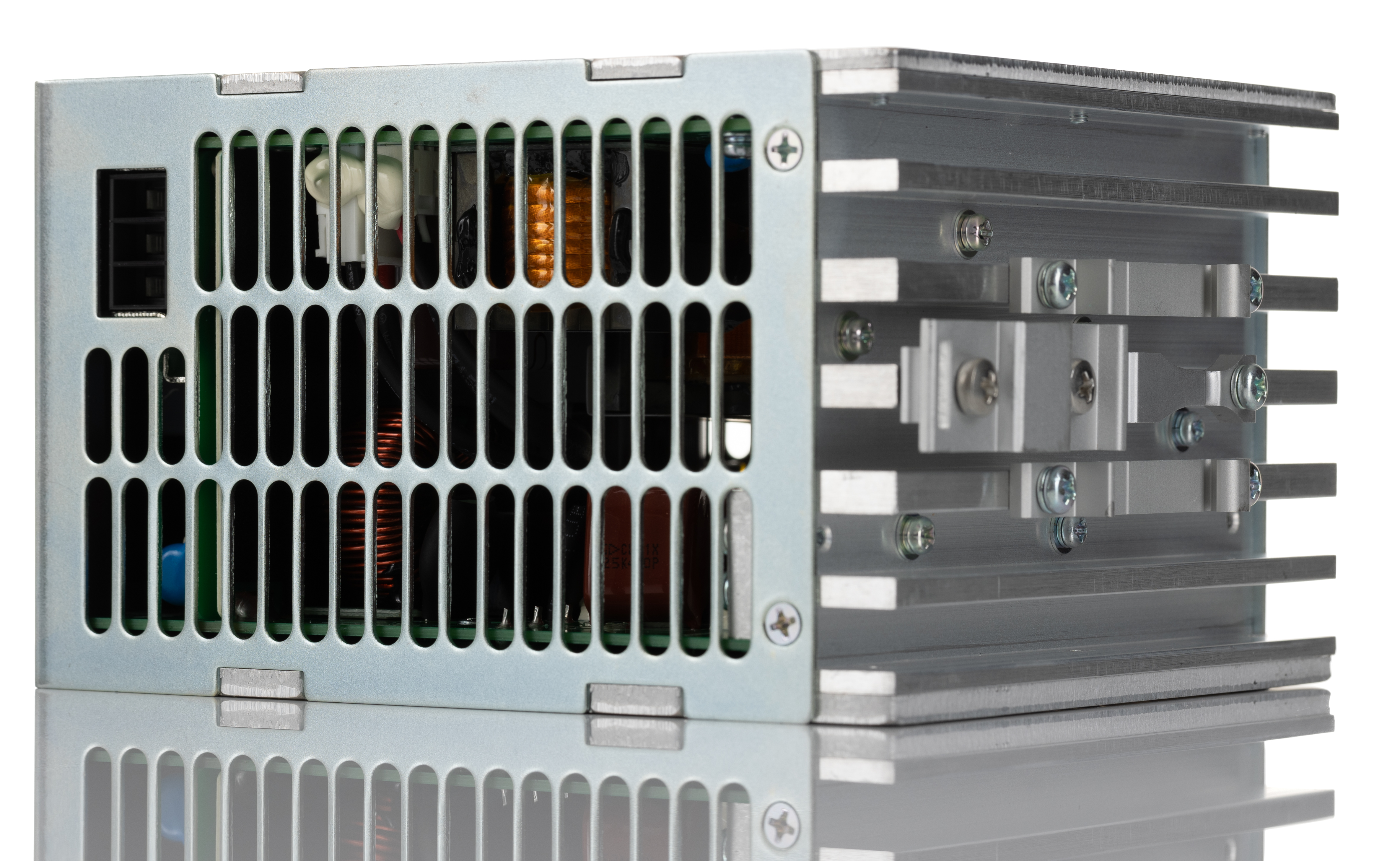

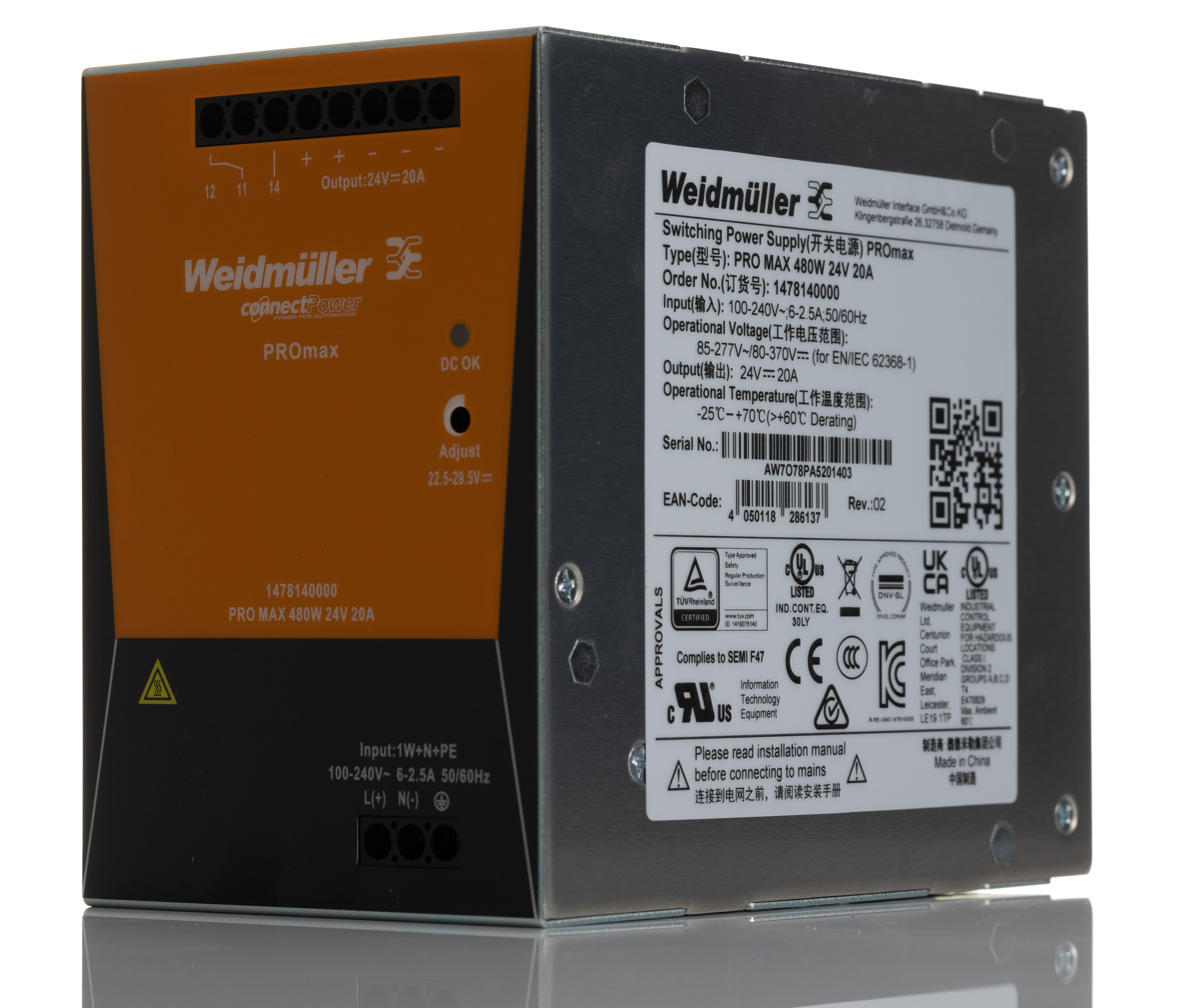

Weidmuller PRO MAX Switched Mode DIN Rail Power Supply, 85 → 277 V ac / 80 → 370V dc ac, dc Input, 24V dc

1478140000 Weidmuller PRO MAX Switched Mode DIN Rail Power Supply, 85 → 277 V ac / 80 → 370V dc ac, dc Input, 24V dc
1478140000
1478140000
HT19186
HT19186
DIN Rail Power Supplies
brand logo

HT Part No. HT19186

Mfr. Part No. 1478140000

Manufacturer: Weidmüller

Technical Documents: Datasheet-265744a4(datasheets) Instruction Sheet - 1478140000-83b1e50c(datasheets) Catalogue - Power Supplies-6f49b25c(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 270.67
Units Per Unit Price
1 + £ 270.67
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 20A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 85 → 277 V ac / 80 → 370V dc
Power Rating 480W
Electrical Phase 1
Number of Outputs 1
Height 130mm
Width 90mm
Depth 150mm
Series PRO MAX
Mounting Type DIN Rail Mount
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61204, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101
Maximum Temperature +70°C
Special Features Durable, High Performance
Output Voltage Adjustment Range 29.5V
MTBF >500000h
Ripple And Noise <50mV
Efficiency 92%
Minimum Temperature -25°C

More Information

Weidmuller DIN Rail Power Supply, 85 to 277V AC Input Voltage Range, 150mm Depth - PRO MAX Series - 1478140000 Need a high-performance power supply that can keep up with demanding tasks? This DIN rail power supply from Weidmuller will give you a boost. It takes an input voltage range between 85 and 277V AC or 80 and 370V DC and converts it into a steady, reliable output voltage of 24V DC. This helps to ensure your connected devices perform optimally and are protected against damage. For enhanced safety, this hardy unit can withstand continuous overloads of up to 20% or short-term peak loads of 300%. • Wide operating temperature range of -25°C to +70°C for use in demanding environments
• Compact dimensions of 130 (H) x 90 (W) x 150mm (D) for installation in tight spaces
• Snaps into place on a DIN rail for ease of installation
• Efficiency of 92% means little power is wasted in the form of heat Applications • Assembly lines
• Machine management
• Process control Is this power supply safe to handle? Yes, its IP20 rating means it's finger-safe and protected against objects larger than 12mm in size.
