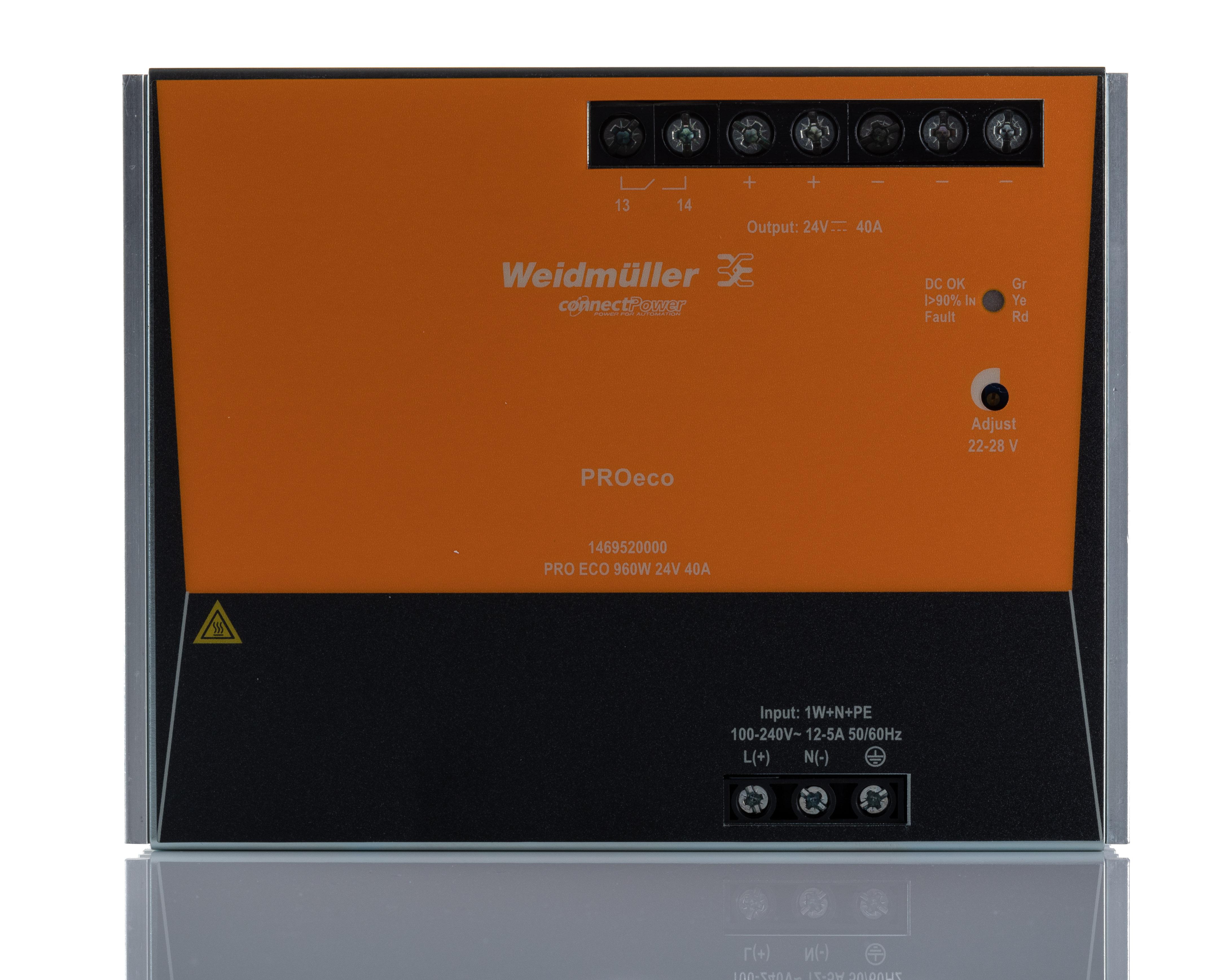

Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dc

1469520000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dc
1469520000
1469520000
HT19187
HT19187
DIN Rail Power Supplies
brand logo

HT Part No. HT19187

Mfr. Part No. 1469520000

Manufacturer: Weidmüller

Technical Documents: PRO ECO-d3750a98(datasheets) Instruction Sheet - 1469520000-0eadd773(datasheets) 9236517_Catalogue-72e2224a(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 411.74
Units Per Unit Price
1 + £ 411.74
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 40A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 85 → 264 V ac / 80 → 370V dc
Power Rating 960W
Electrical Phase 1
Number of Outputs 1
Height 125mm
Width 160mm
Depth 100mm
Series PRO ECO
Ripple And Noise <50mV
Minimum Temperature -25°C
Maximum Temperature +70°C

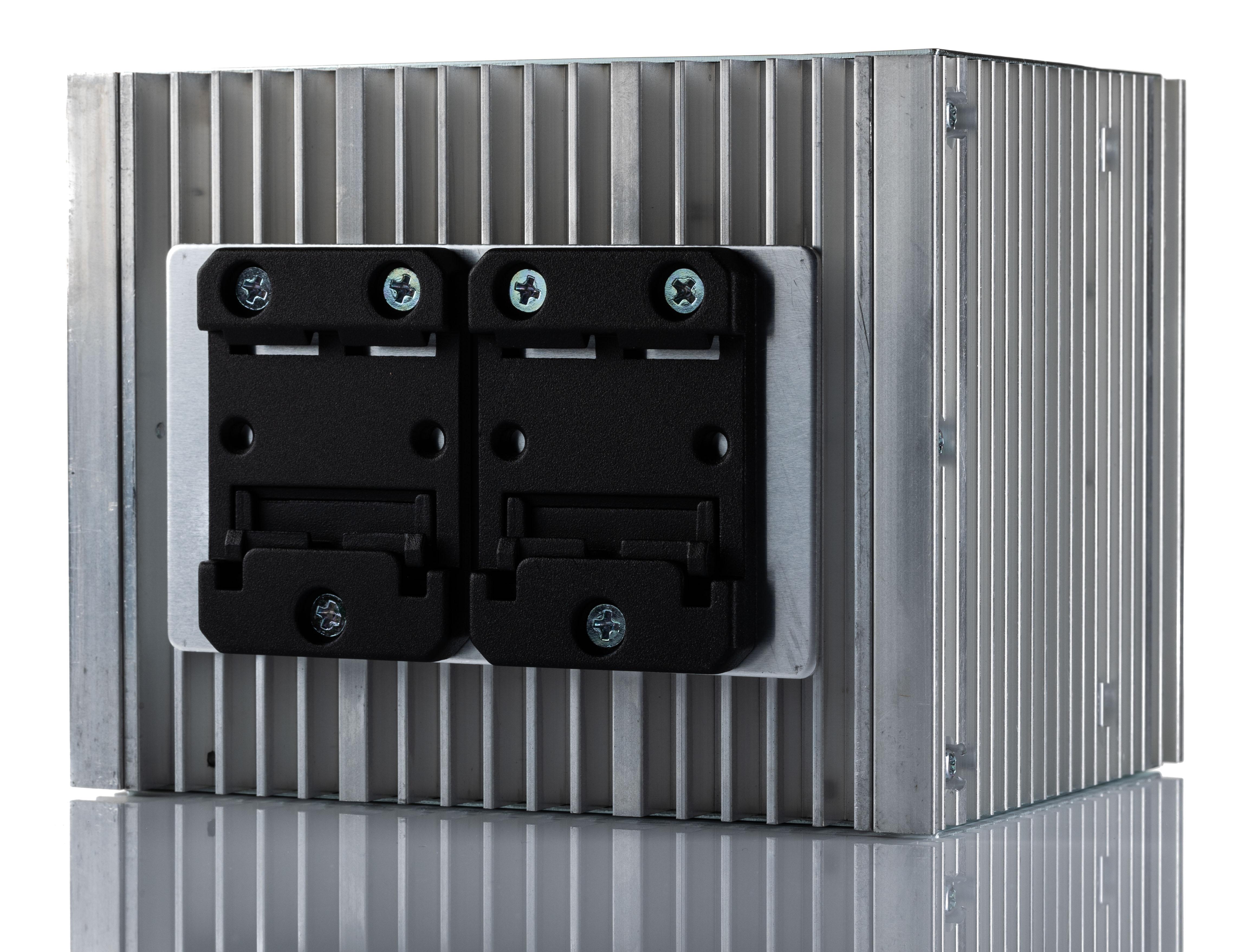

Mounting Type DIN Rail Mount
MTBF >500000h
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
Special Features Compact Size, Easy to Maintain, Flexible, High Efficiency

More Information

Weidmuller DIN Rail Power Supply, 3.5mA Maximum Earth Leakage Current, 85 to 264V AC Input Voltage Range - PRO ECO Series - 1469520000 This versatile DIN rail power supply from Weidmuller packs a serious punch in a small package. The compact device measures 125 (H) x 160 (W) x 120mm (D) and has a power output up to 960W, so it has very high power density. This makes it a safe bet for your heavy-load applications like motor starting. You can count on it to provide DC energy from AC or DC supplies, as it converts input voltages between 85 and 264V AC or 80 to 370V DC to a stable output of 24V DC. A 93% efficiency rating means it wastes little energy as heat, so it keeps its cool without the need for a heatsink. Features & Benefits • Tricolour LED for clear status indication and easy diagnostics
• Ripple and noise of Applications • Process control
• Factory automation
• Power management What temperatures can I use this DIN rail power supply in? The unit has a wide operating temperature range of -25°C to +70°C, so you can put it to the test in harsh environments.
