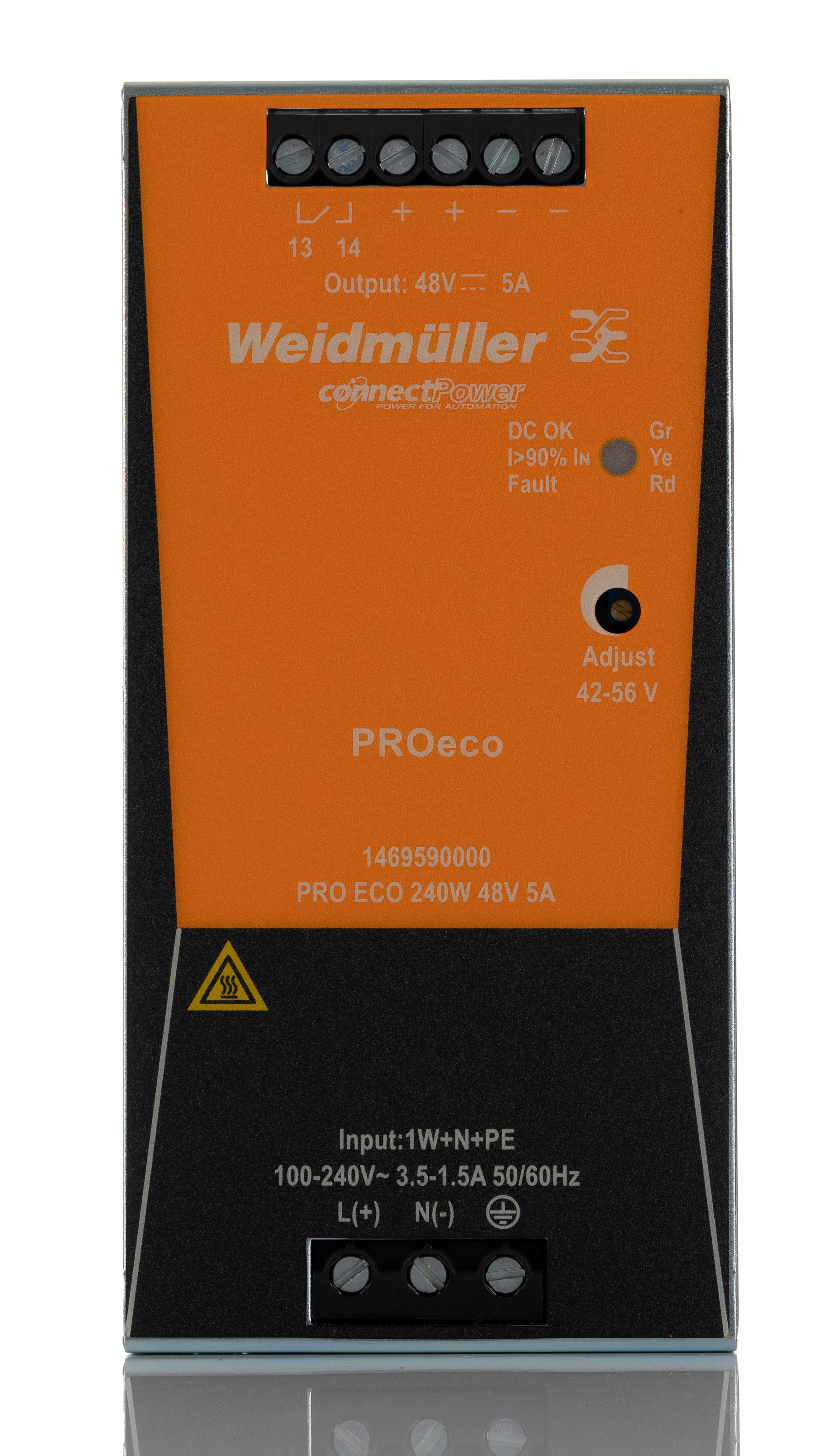

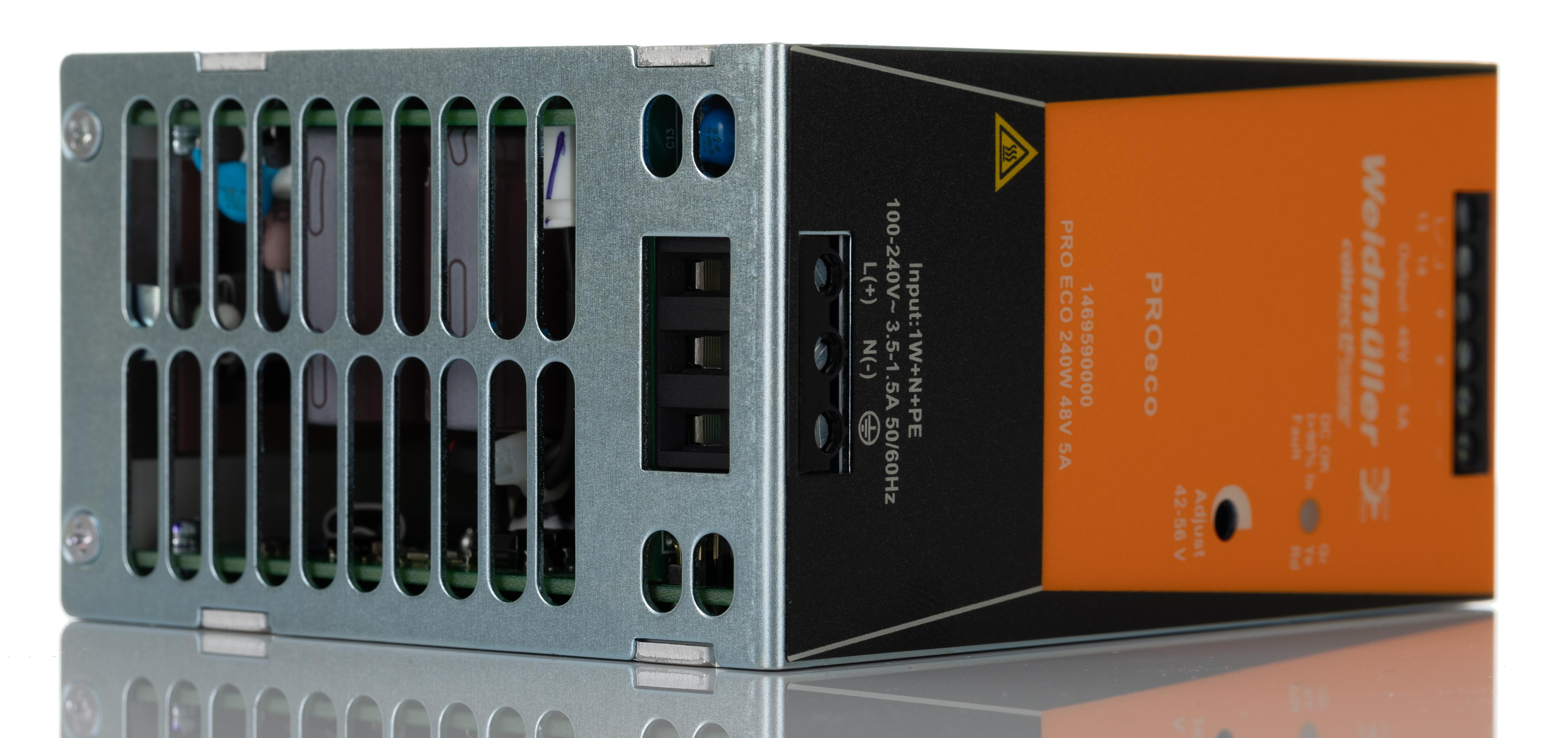

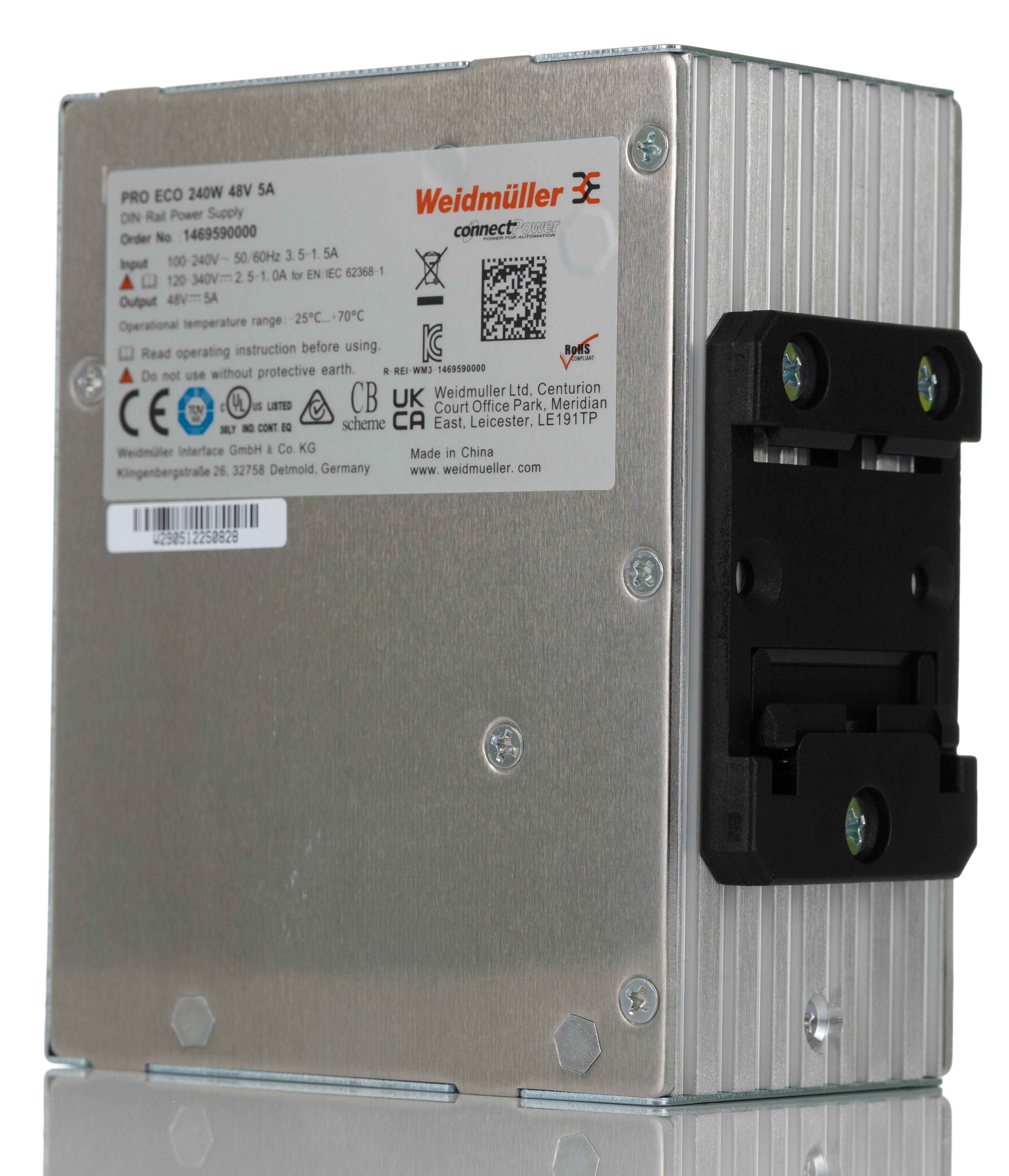

Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 48V dc

1469590000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 48V dc
1469590000
1469590000
HT19192
HT19192
DIN Rail Power Supplies
DIN Rail Power Supplies
1469590000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 48V dcWeidmüller
brand logo

HT Part No. HT19192

Mfr. Part No. 1469590000

Manufacturer: Weidmüller

Technical Documents: PRO ECO-7127f1a8(datasheets) Instruction Sheet - 1469590000-9b24ef29(datasheets) Catalogue - Power Supplies-5463c5e5(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 137.12
Units Per Unit Price
1 + £ 137.12
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 48V dc
Output Current 5A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 85 → 264 V ac / 80 → 370V dc
Power Rating 240W
Electrical Phase 1
Number of Outputs 1
Height 125mm
Width 60mm
Depth 100mm
Series PRO ECO
Efficiency 92%
Maximum Temperature +70°C
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
Special Features Compact Size, Easy to Maintain, Flexible, High Efficiency
Ripple And Noise <100mV
MTBF >500000h
Output Voltage Adjustment Range 42 → 56V
Mounting Type DIN Rail Mount
Minimum Temperature -25°C

More Information

Weidmuller DIN Rail Power Supply, 92% Efficiency, 48V DC Output Voltage - PRO ECO Series - 1469590000 Want a power conversion solution that's impressively efficient? Turn to this DIN rail power supply from Weidmuller. It takes an ultra-broad input voltage range of 85 to 264V AC or 80 to 370V DC and delivers an output voltage of 48V DC for running sensitive battery-powered equipment. Thanks to its 92% efficiency, the unit produces little waste energy as heat and doesn't need fans or heatsinks to keep its cool. It also has a low power loss of just 5W, so you can count on it for energy efficiency. Features & Benefits • IP20 rating means it's finger-safe and protected against objects over 12mm in size
• MTBF of over 500,000 hours, meaning it's built to last
• Handy tri-colour LED indicators keep you up to speed with its operating status
• Short circuit protection shields your equipment against electrical damage Applications • HVAC systems
• Automotive manufacturing
• Distribution cabinets Is this product suitable for use in harsh environments? Yes. This PSU's robust metal case and a wide operating temperature range between -25°C and +70°C make it a great shout for demanding industrial settings.
