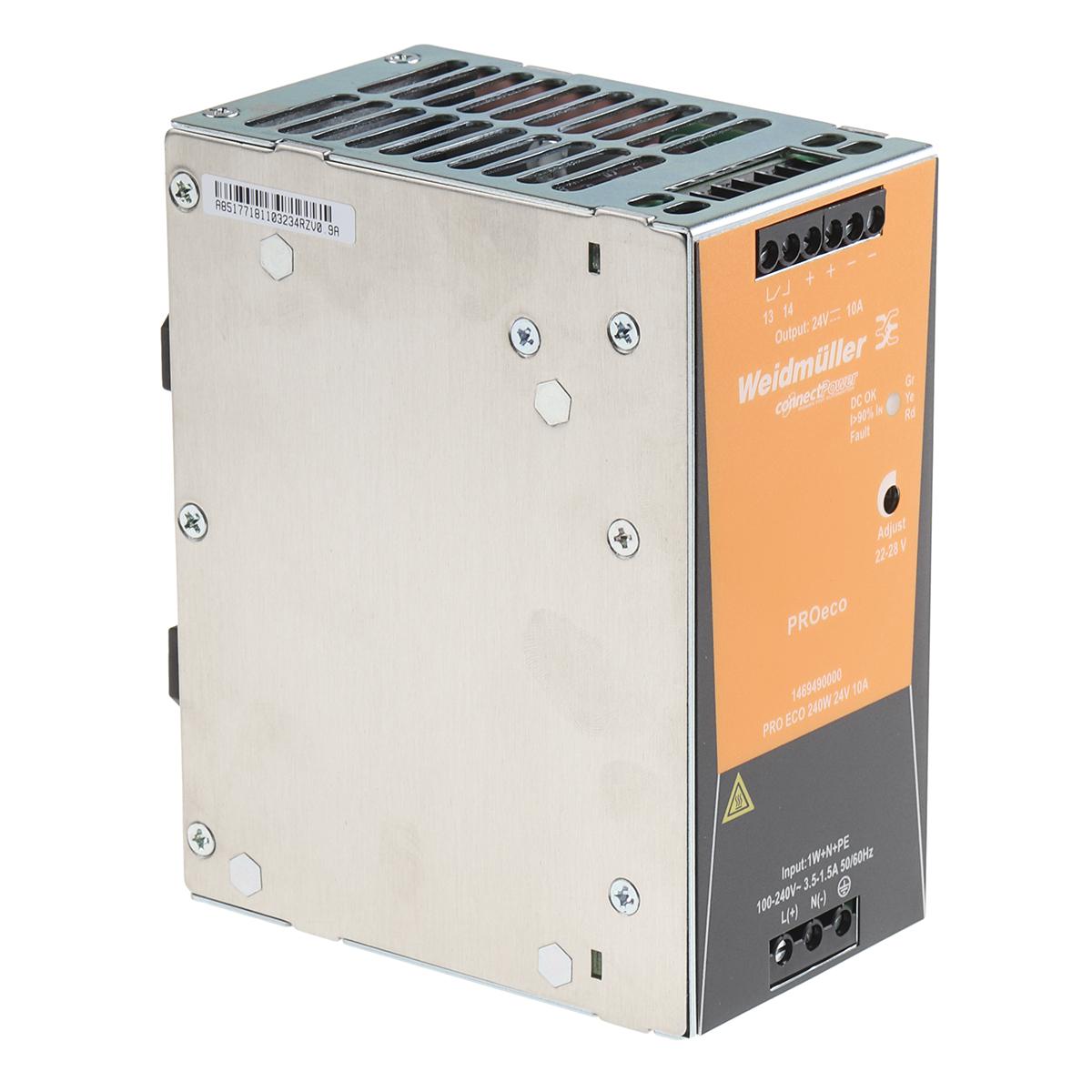

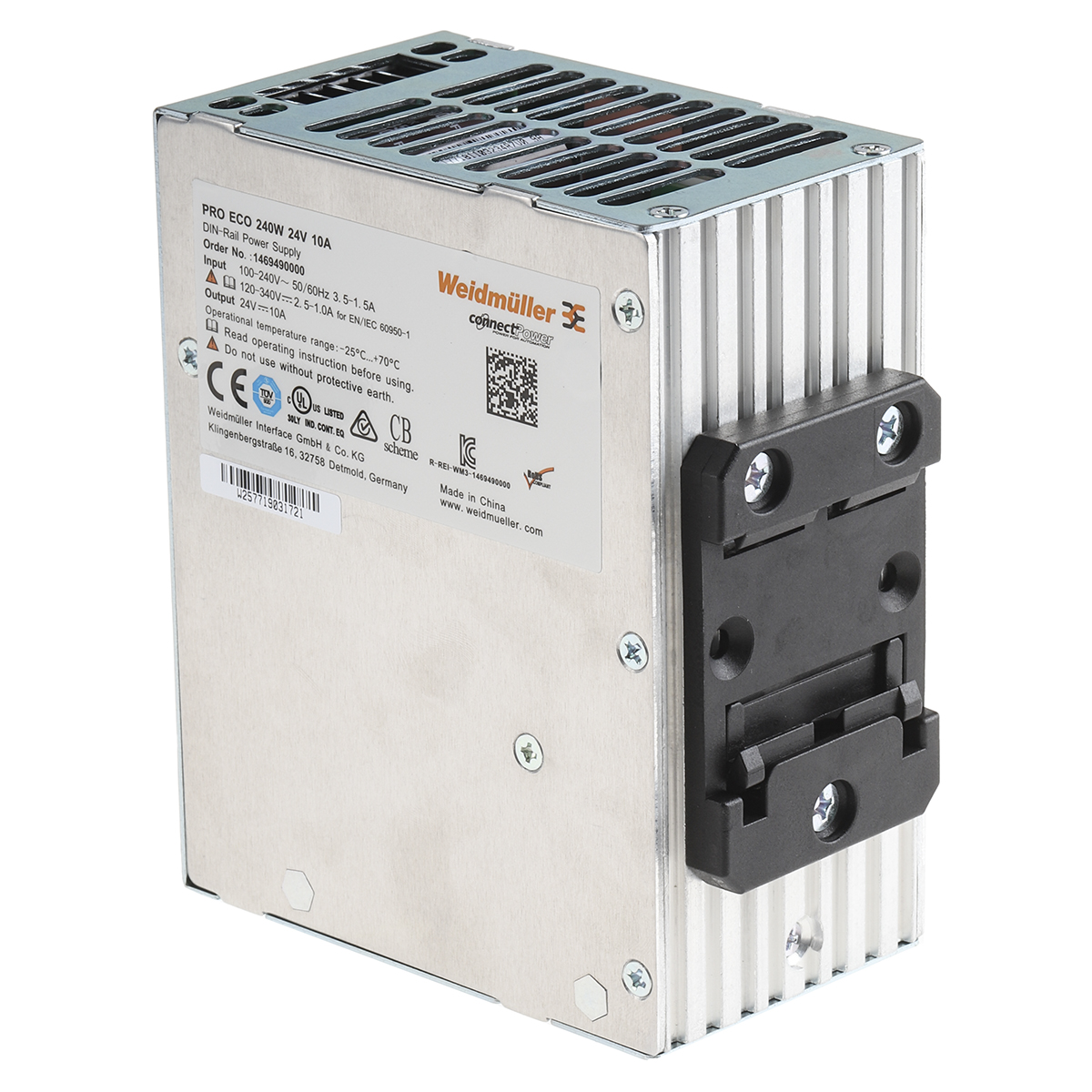

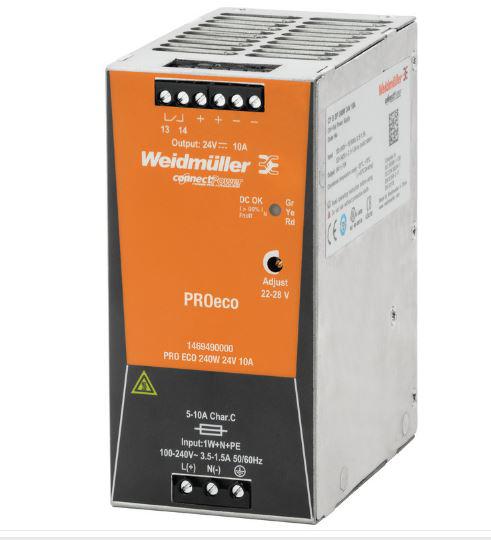

Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dc

1469490000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dc
1469490000
1469490000
HT19194
HT19194
DIN Rail Power Supplies
DIN Rail Power Supplies
1469490000 Weidmuller PRO ECO Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 80 → 370V dc ac, dc Input, 24V dcWeidmüller
brand logo

HT Part No. HT19194

Mfr. Part No. 1469490000

Manufacturer: Weidmüller

Technical Documents: PRO ECO-85b872c9(datasheets) Catalogue - Power Supplies-e885c38e(datasheets) Instruction Sheet - 1469490000-313990f3(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 116.67
Units Per Unit Price
1 + £ 116.67
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Type Switched Mode
Output Voltage 24V dc
Output Current 10A
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 85 → 264 V ac / 80 → 370V dc
Power Rating 240W
Electrical Phase 1
Number of Outputs 1
Height 125mm
Width 60mm
Depth 100mm
Series PRO ECO
Minimum Temperature -25°C
Ripple And Noise <50mV
Mounting Type DIN Rail Mount
MTBF >500000h
Standards Met 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101
Maximum Temperature +70°C
Special Features Compact Size, Easy to Maintain, Flexible, High Efficiency

More Information

Weidmuller DIN Rail Power Supply, 22 to 28V DC Output Voltage Range, 90% Efficiency - PROeco Series - 1469490000 Keep your industrial equipment operating reliably with this Weidmuller DIN rail power supply. The universal, single-phase unit provides an output voltage between 22 and 28V DC, so it's suitable for use with low-power devices. An efficiency of 90% means the device loses minimal power during switching. For added safety, reverse voltage protection helps to prevent damage to your electrical components in the event of a fault. This unit has compact dimensions of 125 (H) x 60 (W) x 100mm (D) to help you maximise packing efficiency on your DIN rail. Features & Benefits • Wide input voltage range of 85 to 264V AC and 80 to 370V DC for versatility
• Durable metal housing resists impact and corrosion
• Optional parallel connection with up to five devices for greater output current and system availability
• Screw connection for secure and vibration-proof installation Applications • Process control
• Factory automation
• Photovoltaics
• Gas and oil industries How long will this power supply last? This power supply has an MTBF of more than 500,000 hours, so you can rely on it for long-term performance.
